Product Description

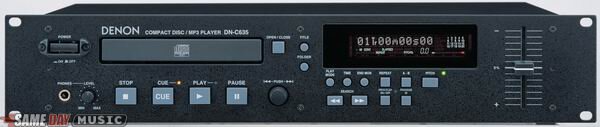

Denon DN-C635 Professional CD Player
The DN-C635 Professional CD Player offers a complete Compact Disc playback solution, plus CD-R/RW and MP3 disc compatibility. Featuring unprecedented track and user control options, the DN-C635 provides a superb stand-alone or integrated system solution for professional audio playback. Ideal for pro install, live sound, and studio playback operation, its Shock Proof Memory assures uninterrupted audio, while a high-speed Instant Start allows for instantaneous playback when Play is engaged. An innovative Auto Cue function starts playback at the first point in a track where audio is detected (selectable from -36 to -48 dB in three increments) instead of at the marked beginning of a track. A unique user Preset feature lets you set pre-tailored playback functions such as Playback Mode (Single/Continuous) and Auto Cue (On/Off), while three different Function Presets Groups can be stored in non-volatile memory via buttons on the front panel. These allow you to preset 32 individual parameters comprising playback, function, and user interface options. Outputs include XLR and RCA analog, plus coaxial S/PDIF.

Playback Speed Control
The long stroke sliding fader adjusts the play speed of CDs or MP3 discs by +/-12%, in increments of 0.1%. This Pitch Control can be turned off for normal playback. Playback can also be adjusted using a preset function which allows the speed to be increased by up to +/-3% in increments of 0.2%. When this preset function is engaged, Pitch Control on the front panel is disabled.

Play configurations of up to 99 user selectable tracks may be entered, edited, and stored in non-volatile memory, while an advanced memory function automatically boots up the DN-C635 in Program Mode when a programmed disc is inserted. A Rotary Track Select knob allows for easy track selection, and when rotated during playback, engages the Next-Track Reserve function, playing back the "reserved" track when playback of the current track is complete. A three-function selectable Finish Mode (Stop, Next, Recue) presets the unit to either Stop, Standby at the beginning of the Next track, or Recue to the beginning of the track being played, after finishing the current track. Standard Repeat Modes (Single Track/All Tracks) are also provided, as well as Playback Speed Control of +/-12% for all supported media formats. An End Monitor function, used in Standby Mode, reviews the last 5 to 35 seconds (user presetable) of a track, or last portion of the last track (outro) of a disc when in Continuous Mode.

Intuitive user interface options have also been designed into the DN-C635. The highly visable, easy-to-read FL tube display shows elapsed, track remaining, or total remaining time, along with a bar graph display indicating track progress. The unit also supports CD Text options, allowing easy identification of discs via the units display. A 20-track music calendar also helps the user track disc status. End Of Message warning, presetable between 0 and 60 seconds, causes the display to flash when approaching the end of a track to give the user visual cues. A convenient Next Track Standby feature puts the DN-C635 into Standby Mode at the beginning of the next track when the STDBY/CUE button is pressed during playback.

As a complement to today's complex A/V systems, the DN-C635 offers a variety of In/Out capabilities and Cascade options. An adjustable XLR active balanced stereo output is provided, as well as a Digital Coaxial Output. Mono Output Playback mode can be used to provide a mix of both left and right channels. Cascade In/Out ports can be used to link multiple DN-C635's together for continuous relay playback, while the External Sync Out is used to link to Denon recorders such as the DN-780R Cassette Recorder enabling simultaneous recording. A Headphone Out with volume control is also provided.

Other additions include a Power On Playback function used for automatic playback of a disc or program sequence at a specified time when using an external timer. Serial RS-232C/422A D-sub 9 (AMX tm/Crestron tm compatible) and Parallel GPI D-sub 25 pin remote ports allow for external control, including standard Fader Start operation when using a mixing console. A Sleep function shuts down the servo-controlled transport system after a selected amount of time to increase drive life.

Technical Description

Type: Single-mechanism Compact Disc Player

Audio Channels: 2 Channel Stereo

Quantization: 16-bit linear

Sampling Frequency: 44.1kHz at Normal Pitch

Frequency Response: 5 to 20,000Hz

Total Harmonic Distortion: 0.004% (at "CD Pitch=0Fix" mode of the preset function

Signal to Noise Ratio: 104 dB (at "CD Pitch=0Fix" mode of the preset function

Dynamic Range: 100 dB (at "CD Pitch=0Fix" mode of the preset function

Channel Separation: 90 dB (at "CD Pitch=0Fix" mode of the preset function

Oversampling: 8-times

Line Output (Unbalanced): RCA Jack

Output Level: 2.0 V at 0 dB recorded Disc at 1 kHz

Load Impedance: 10 kOhms or more

Line Output (Balanced): 3-pin XLR (active balanced) (Pin 2 hot)

Output Level: +18 dBu at 0 dB Disc

Output Adjust Range: +22 dBu to -20 dBu

Load Impedance: 600 ohms

Digital Output (RCA Jack): SPDIF or IEC-958 Type II

Headphone Output: Stereo

Output Level: 7 mW

Load Impedance: 33 ohms

Variable Speed Control: +/-12% max.

Frame Search Accuracy: 1/75 second (CD-DA)

Remote: 9P D-Sub (Serial port)

IR Remote Control Sensor

25P D-Sub (Parallel)

Optional:

RC-680 Remote Control

General

Power Source: 120V AX +/-10%, 60Hz

Power Consumption: 15 Watts

Installation: 19-inch rack mountable (2U)

Dimensions (excluding height of keys, connectors): 482(W) x 88(H) x 252(D) mm

Approximately 19 x 3.5 x 10"

Weight: 4.7 kg

Approx. 10.34 lbs.
