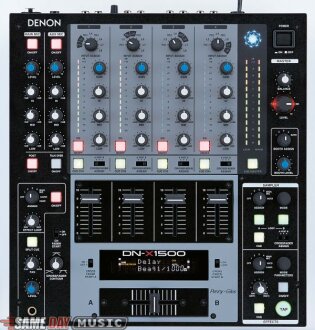

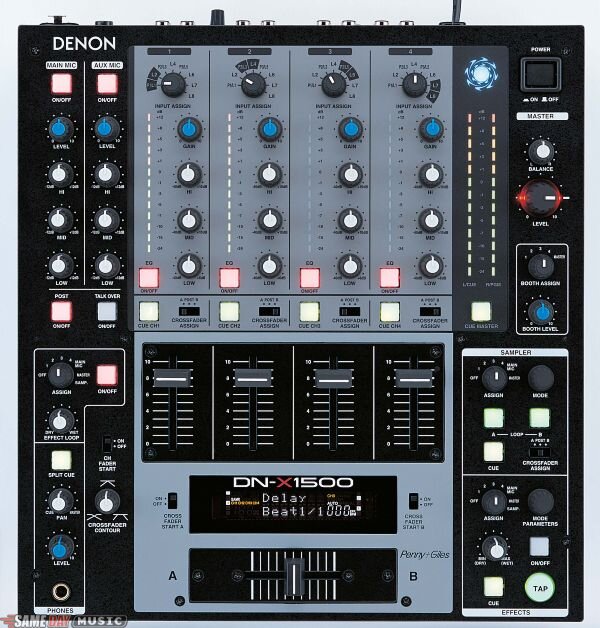

Denon DNX1500 4-Channel DJ Mixer with Effects
World's first 12 in. Matrix Mixer. 3-band parametric EQ with kills. 9 on-board effects.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 7.8 out of 10 (17 ratings)
PRODUCT DESCRIPTION
To equal the incredible abilities of its renowned DN-S5000 and DN-S3000 single CD/MP3 players, Denon has hit the mark once again with the DNX1500. Advanced features, unprecedented functionality and flexibility team with the entirely digital circuitry. The Effector and Sampler are built in to further boost the DJ's creative powers. Denon has strictly selected the cross fader to provide high sound quality and reliability, even under heavy usage. The Denon DNX1500 even has a USB port for future software updates!
Features:
World's first 12 in. Matrix Mixer
4-channel Club/Mobile/Battle DJ Mixer
5 line / 3 switchable phono-to-line inputs
High performance 45mm Penny & Giles crossfader
45mm VCA channel faders
3 Band parametric EQ with kills
9 on-board effects
External send/return effects loop
Individual input gains w/PFL meters
FL Tube Display to manage effects (World's First)
8 Sec on-board Sampler w/edit options
Multi channel assignable crossfader
2 Mic inputs w/eq adjustments
Talk Over & Mic Post switch
Digital Output (coaxial)
Assignable Booth output w/volume control
Balanced XLR output w/trim
Stereo/Mono output switch
Headphone EQ adjustment by preset
Split cue H/P monitor w/program pan
3-way BPM counter, Auto/TAP/Manual
4 Fader start inputs
USB port to add free future plug-ins such as effects (World's First)
Optional 19 in. rack mount kit (RMDJ-1500)
Features:
World's first 12 in. Matrix Mixer
4-channel Club/Mobile/Battle DJ Mixer
5 line / 3 switchable phono-to-line inputs
High performance 45mm Penny & Giles crossfader
45mm VCA channel faders
3 Band parametric EQ with kills
9 on-board effects
External send/return effects loop
Individual input gains w/PFL meters
FL Tube Display to manage effects (World's First)
8 Sec on-board Sampler w/edit options
Multi channel assignable crossfader
2 Mic inputs w/eq adjustments
Talk Over & Mic Post switch
Digital Output (coaxial)
Assignable Booth output w/volume control
Balanced XLR output w/trim
Stereo/Mono output switch
Headphone EQ adjustment by preset
Split cue H/P monitor w/program pan
3-way BPM counter, Auto/TAP/Manual
4 Fader start inputs
USB port to add free future plug-ins such as effects (World's First)
Optional 19 in. rack mount kit (RMDJ-1500)
TECHNICAL DESCRIPTION
General Specifications
Dimensions (W x D x H): 12.2 x 4.3 x 12.9 in.
Weight: 14.7 lbs
Power Supply: AC120V +/-10%, 60 Hz
Power Consumption: 45 w
Input Level and Impedance
8-Line: -14 dBV (200mV) 50k ohms
3-Phono: -50 dBV (3.0mV) 50k ohms
Effect (Return): -14 dBV (200mV) 50k ohms
Main Mic: -54 dBV (2.0 mV) 2k ohms
Aux Mic: -60 dBV(1.0 mV) 1k ohms
Output Level and Impedance
Balanced: 4 dBu (1.23V) 150 ohms
Unbalanced: 0 dBV (1.0V) 1k ohms
Effect (Send): -14 dBV (200mV) 1k ohms
Headphone: 0 dBV (1.0V) 100 ohms
Frequency Response Line: 20 to 20 kHz +/- 2 dB
Phono: 20 to 20 kHz RIAA +/- 2 dB
Mic: 20 to 20 kHz +/-3 dB
Signal to Noise Ratio
Line: 85 dB (at Noise Gate ON)
Phono: 73 dB(at Noise Gate ON)
Main Mic: 65 dB (at Noise Gate ON)
THD
Line: Below 0.02%
Phono: Below 0.05%
Crosstalk: Over 70 dB
Channel Equalizer
Hi: +10 dB (8 kHz), -33 dB (15 kHz)
Mid: +10 dB (8 kHz), -40 dB (1 kHz)
Low: +6 dB (8 kHz), -40 dB (60 Hz)
Microphone Equalizer
Hi: +12 dB, -12 dB (10 kHz)
Mid: +12 dB, -12 dB (1 kHz)
Low: +12 dB, -12 dB (100 Hz)
Digital Ouput
Signal format: IEC958 Type II
Output Level: 0.5 Vp-p 75 ohms
Output Signal Level: -6 dB
Dimensions (W x D x H): 12.2 x 4.3 x 12.9 in.
Weight: 14.7 lbs
Power Supply: AC120V +/-10%, 60 Hz
Power Consumption: 45 w
Input Level and Impedance
8-Line: -14 dBV (200mV) 50k ohms
3-Phono: -50 dBV (3.0mV) 50k ohms
Effect (Return): -14 dBV (200mV) 50k ohms
Main Mic: -54 dBV (2.0 mV) 2k ohms
Aux Mic: -60 dBV(1.0 mV) 1k ohms
Output Level and Impedance
Balanced: 4 dBu (1.23V) 150 ohms
Unbalanced: 0 dBV (1.0V) 1k ohms
Effect (Send): -14 dBV (200mV) 1k ohms
Headphone: 0 dBV (1.0V) 100 ohms
Frequency Response Line: 20 to 20 kHz +/- 2 dB
Phono: 20 to 20 kHz RIAA +/- 2 dB
Mic: 20 to 20 kHz +/-3 dB
Signal to Noise Ratio
Line: 85 dB (at Noise Gate ON)
Phono: 73 dB(at Noise Gate ON)
Main Mic: 65 dB (at Noise Gate ON)
THD
Line: Below 0.02%
Phono: Below 0.05%
Crosstalk: Over 70 dB
Channel Equalizer
Hi: +10 dB (8 kHz), -33 dB (15 kHz)
Mid: +10 dB (8 kHz), -40 dB (1 kHz)
Low: +6 dB (8 kHz), -40 dB (60 Hz)
Microphone Equalizer
Hi: +12 dB, -12 dB (10 kHz)
Mid: +12 dB, -12 dB (1 kHz)
Low: +12 dB, -12 dB (100 Hz)
Digital Ouput
Signal format: IEC958 Type II
Output Level: 0.5 Vp-p 75 ohms
Output Signal Level: -6 dB
