Your sound is king. The control of your sound is imperative. The RP1000 gives you added control to express yourself the way you want - No longer will the lack of control stand in the way of your expression
Your rig.
The RP1000 integrates into your amp and with your stompboxes, not the other way around. Featuring exclusive Stompbox and Amp loops, the RP1000 doesn't get in the way of your tone and switches external stompboxes in and out of the signal path like large pro rigs. No longer will you have to do the pedal tap dance, just select your preset and your tone is engaged, just the way you like it.
Your Amp.
In conjunction with the external Amp Loop, the RP1000 also features an Amp/Cabinet bypass switch that allows you to turn off the RP1000's internal amplifiers and cabinets so your amp's tone stands alone.
Simplicity of a Stompbox.
Popular on the RP500, the RP1000 also features the Pedalboard option that turns footswitches 6 through 10 into stompbox style effect on/off controls.
100 Different Pedalboards.
When the Amp/Cabinet Bypass is used in conjunction with the Pedalboard mode, the RP1000 turns into 100 different pedalboards. You get instant access to both preset changes and stompbox on/off control, truly the best of both worlds.
Phrase Looper.
The RP1000's built-in Phrase Looper lets you create on the fly performance loops for practicing, composing, and performing. With 20 seconds of record time and controls for Stop, Play, and Overdub, you can layer different guitar parts and tones seamlessly into cool song ideas or one-man jams.

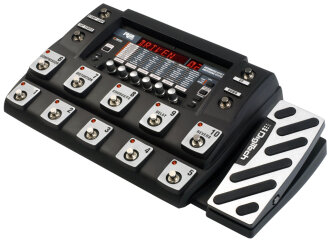

The RP1000 is built like a tank from a cast metal chassis to the 14 heavy-duty switches. A large 10 character LED display makes for easy stage use topped by an built-in expression pedal to control wahs, volume, Whammy(TM) and other parameters.
No matter how you get your tone, the RP1000 works with your gear and gives you the control you need when playing live.
Your Gear, Your Tone.
The RP1000 is designed to be used with external amps & stompboxes. The combination of the RP1000's Stompbox Loop, Amp Loop and Amp/Cabinet Bypass feature allows the RP1000 to integrate into your rig and not the other way around.
Integrated Effects Switching System.
Like large, professional switching systems that cost thousands of dollars, the RP1000 switches external gear with ease and eliminates the pedal "tap dance" so you can concentrate on playing and performing.
General Specifications
Chassis: Durable cast metal construction
Display: Large 8 character alpha-numeric and 2 character numeric LED display
A/D Converter: 24-bit high performance audio
D/A Converter: 24-bit high performance audio
Sampling Frequency: 44.1kHz throughout
DSP Section: 1 Audio DNA2(TM) DSP Processor
Preset Memory: 100 User / 100 Factory Presets
Controls
Footswitches: 14 heavy duty vacuum-style switches control Tap Tempo, Stompbox Bank up/down, Program select, and Effect on/off. Footswitches also access Tuner, Bypass, and Phrase Looper functions.
Expression pedal: Built-in
Analog Input Connections
Guitar input:
- Impedance: 1M Ohms
- Maximum Input signal: 12 dBu
Stompbox Loop input:
- Impedance: 16K Ohms
- Maximum Input signal: 12 dBu
Amp Loop input:
- Impedance: 16K Ohms
- Maximum Input signal: 12 dBu
- Analog Output Connections
Line outputs:
- Impedance: 1K Ohms unbalanced / 2K Ohms balanced
- Maximum Output level: 22 dBu
XLR Mixer Outputs:
- Impedance: 2k Ohms balanced
- Maximum Output Level: 22 dBu
Stompbox Loop output:
- Impedance: 600 Ohms
- Maximum Output signal: 12 dBu
Amp Loop output:
- Impedance: 600 Ohms
- Maximum Output signal: 12 dBu
- Headphone Outputs:
Minimum Headphone Impedance: 50 Ohms
Electronic SNR: >= 110dB
USB: 2.0 compliant
Audio streaming: 2 channels to computer, 2 channels from computer
Sample rate: 44.1 kHz
External Control Input
Looper Footswitch Input: for use with optinal DigiTech FS3X
Size/Dimensions
Unit Dimensions (WxHxD): 19.5 x 2.25 x 8.75 in.
Shipping Dimensions (WxHxD): 25 x 7 x 15 in. (approximate)
Shipping Weight: 8.0 lbs (approximate)
Windows Software Requirements
Vista Home/Premium, XP Home/Professional (SP2 installed, .NET 2.0 installed*)
Pentium(R)/Athlon(TM) 1.4GHz or later
512MB RAM (1GB RAM recommended)
180MB hard disk space for application
DVD-ROM drive
USB Port
Internet connection required for Cubase activation
*.NET 2.0 will be installed during installation of X-Edit software if required on XP systems
Mac Software Requirements
OS 10.4.x or later
PowerPC G4/G5 1GHz or later
512MB RAM (1GB RAM recommended)
180MB hard disk space for application
DVD-ROM drive
USB Port
Internet connection required for Cubase activation
