    Diago Micropower9 Pedal Power Supply

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 14R4-WKPV

    Web Item #DIAMICRO9

    Diago Micropower9 Pedal Power Supply
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $10
    • Overnight: $22
    SpeedPlay: on orders of
    $249
    $34.99 Seen a lower price?
    Order Now | Limited Qty
    •
    • on orders over $29
    • 2 Day: $10
    • Overnight: $22
    $27.95
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

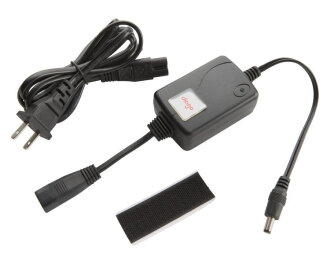

    Diago Micropower9 Pedal Power Supply Product Description

    The Diago Micropower9 is a smaller version of the Powerstation. Using the same low-noise digital technology as its bigger brother, the Micropower9 is perfect as a direct universal replacement for hundreds of other proprietary bulky and ugly wall warts, as well as being ideal for smaller pedal boards of up to 6 pedals.

    The Diago Micropower9 uses digital switch mode technology, making it quiet, light, efficient and tiny, reliably powering your pedal(s) so you can concentrate on making music.

    Same Day Music is an authorized dealer of Diago products.

    Diago Micropower9 Pedal Power Supply Technical Description

    - Output: 9V DC at 1,000 mA (9W)
    - Input: 90-264VAC @ 50-60Hz
    - Efficiency: ~80%
    - Line Regulation: .5% max
    - Load Regulation: % max
    - Mains Cable Inlet: 2m Figure 8 Lead IEC320-C8
    - Output Barrel: 2.1 x 5.5 x 12mm female barrel, centre -ve
    - Dimensions (L x W x W): 72mm x 47mm x 27mm
    - Protection: Short circuit, overload and over voltage protection
    - Operating Temperature: 0 degrees C to +40 degrees C
    - Storage Temperature: -40 degrees C to +85 degrees C
    - Approval: CE, UL, cUL, TUV, CB, BSMI, RoHS and WEEE
    - Weight: ~70g

    Same Day Music is an authorized dealer of Diago products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 1 lbs
    Shipping Dimensions: 7 x 5 x 3 in
