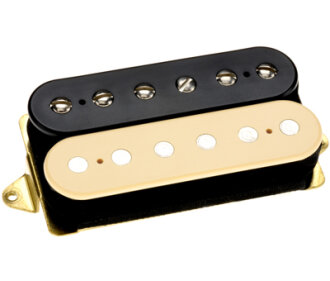

    DiMarzio DP193 Air Norton Guitar Pickup

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 14QK-85GH

    Web Item #DIMDP193

    DiMarzio DP193 Air Norton Guitar Pickup
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Installation Instructions
    DiMarzio Warranty: If you have additional warranty questions, please call the manufacturer at 718-981-9286
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $6
    • Overnight: $18
    SpeedPlay: on orders of
    $249
    $70 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    This item cannot be returned once opened due to the possibility that it has been used.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    DiMarzio DP193 Air Norton Guitar Pickup Product Description

    The DiMarzio DP193 Air Norton guitar pickup started out simply to be the Airbucker version of the Norton. They thought it would make a distinctive-sounding bridge pickup with high-gain amps, but DiMarzio soon discovered that it's a radically neat neck pickup, too. The tone is deep and warm, but not muddy. It's hot, but not distorted. It's even got cool harmonics, which are really unusual for a neck humbucker. The patented Air Norton magnetic structure reduces string-pull, so sustain is improved; and pick attack and dynamics are tremendously controllable and expressive. Combine the Air Norton with an Air Zone, The Tone Zone or Steve's Special in the bridge position for a perfect blend of power and tone, or use an Air Norton in the bridge position with an Air Classic Bridge model in the neck position for a distinctive medium-output blues-rock sound.

    Tech Talk

    When the Air Norton is in the neck position, it's a warm, open-sounding pickup with enough power to balance with all bridge humbuckers. Try it with 500K pots for maximum treble and harmonic presence. In the bridge position, the sound is medium output with solid lows and biting harmonics. You can also try it with 250K controls, 500 K volume, and 250K tone to fatten the highs up a little. Combines well with Air Classic in neck, as well as The Cruiser, The Chopper, and Blue Velvet single-coils.

    Same Day Music is an authorized dealer of DiMarzio products.

    DiMarzio DP193 Air Norton Guitar Pickup Technical Description

    - Wiring: 4 Conductor
    - Magnet: Alnico 5
    - Output mV: 270
    - DC Resistance: 12.58 Kohm
    - Year of Introduction: 1995
    - Patent: 4,501,185 & 5,399,802

    Same Day Music is an authorized dealer of DiMarzio products.
    Shipping Weights and Dimensions
    Shipping Weight: 1 lbs
    Shipping Dimensions: 5 x 3 x 3 in
