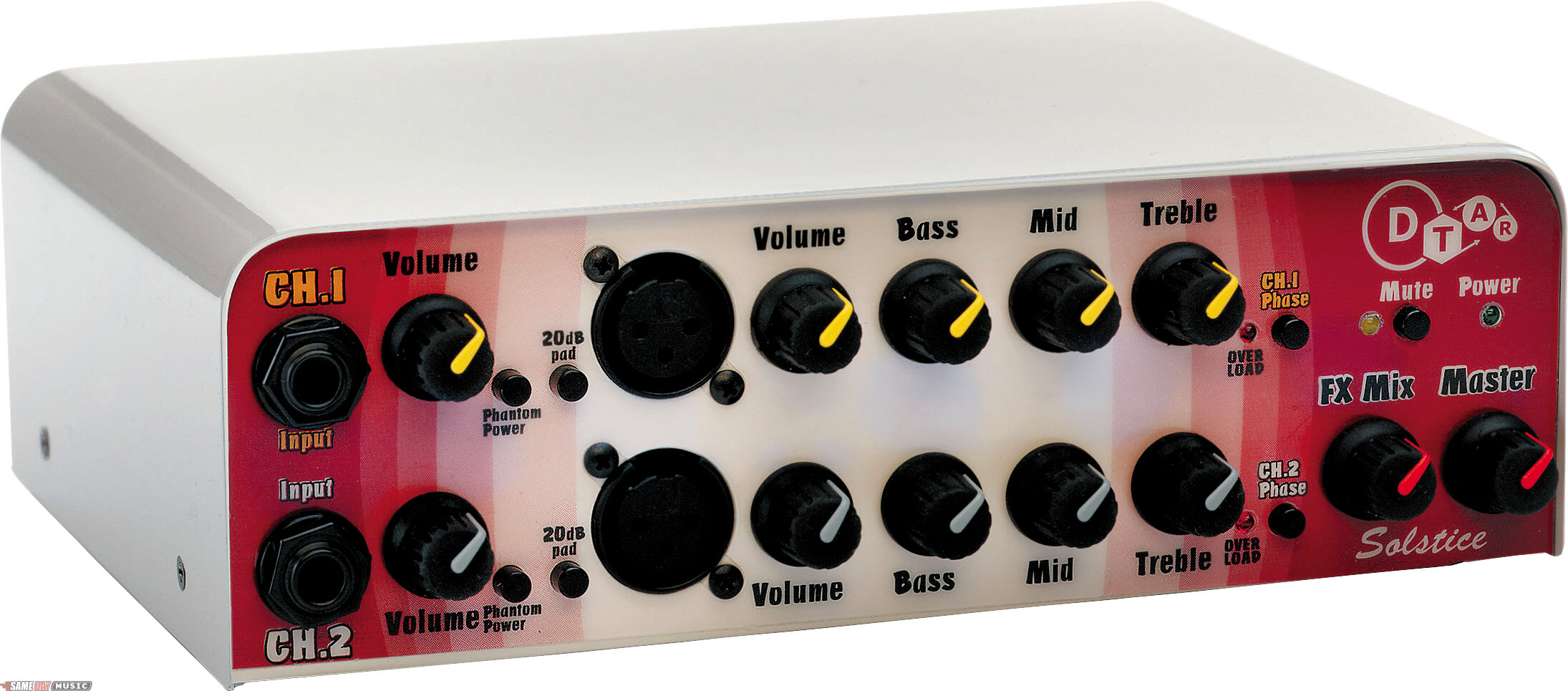

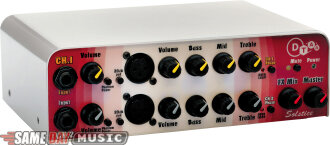

DTAR Solstice Acoustic Guitar Preamp
Live-mix up to four sources such as piezo pickups, magnetic pickups, standard mics, and high output condenser mics.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Solstice is a high quality two channel preamp mixer that blends virtually any type of sound source. The low-noise hybrid circuitry and internally adjustable gain from 0 to 24db make it suitable for both live and studio use. Solstice is the perfect solution for musicians looking to live-mix up to four sources such as piezo pickups, magnetic pickups, standard mics, and high output condenser mics.
Features
1/4 in. and XLR inputs on each channel: Allows either a microphone or pickup input on either channel
Balanced XLR mic input with true gain control for optimum headroom and lowest noise: Very low noise and high common mode rejection ratio. Utilizes discrete hybrid circuitry as in high end mixing consoles
Full 3 way level / clip indicator: Helps set optimum gain for best headroom and signal to noise ratio
Phase reverse switch: Helps control acoustic feedback
Channel effects loop with send and return jacks: Can be used as independent signal output or as insertion point for external signal
Mute switch: Allows complete shut off of rig
Tuner output (unaffected by mute switch): Allows quiet tuning
Stereo input jack: Allows access to both channels with one stereo cable
External wall mount power supply: Allows AC operation
High quality components: Extremely low noise and distortion, audiophile quality sound
Mic stand adapter available as an option: Useful for on-stage applications that use a microphone stand. Allows the performer to have full access to the front panel while facing the audience
Features
1/4 in. and XLR inputs on each channel: Allows either a microphone or pickup input on either channel
Balanced XLR mic input with true gain control for optimum headroom and lowest noise: Very low noise and high common mode rejection ratio. Utilizes discrete hybrid circuitry as in high end mixing consoles
Full 3 way level / clip indicator: Helps set optimum gain for best headroom and signal to noise ratio
Phase reverse switch: Helps control acoustic feedback
Channel effects loop with send and return jacks: Can be used as independent signal output or as insertion point for external signal
Mute switch: Allows complete shut off of rig
Tuner output (unaffected by mute switch): Allows quiet tuning
Stereo input jack: Allows access to both channels with one stereo cable
External wall mount power supply: Allows AC operation
High quality components: Extremely low noise and distortion, audiophile quality sound
Mic stand adapter available as an option: Useful for on-stage applications that use a microphone stand. Allows the performer to have full access to the front panel while facing the audience
TECHNICAL DESCRIPTION
Input
Two channel preamp
+15 volt phantom power
Two Ultra-High impedance 10 Meg Ohm stereo 1/4 in. input jacks
Two XLR input jacks with 40dB of gain and switchable 20dB pad
Output
Main XLR output
Two post EQ balanced XLR outputs
Single-ended buffered output with very low output impedance
Master Effects signal output (line level)
Two 1/4 in. stereo insertion points
Tuner / auxiliary output
Dimensions: 8.5 in. wide x 6.5 in. deep x 2.7 in. high
Weight: 2.9 lbs.
Single-ended input gain: 30 dB (adjustable)
Single-ended input noise (referred to input): >110 dBV
Single-ended input THD (@ 2Vo, tone controls flat): < .01%
Single-ended input frequency response (+/- 3 dB): 20 Hz - 80 KHz
Single-ended input maximum input level: 1 Vrms
Single-ended input maximum output level: 7.2 Vrms
Single-ended input input impedance: 10 Meg Ohms
Single-ended input slew rate: 13 V/uS
Mic input gain: 50 dB (20dB pad available)
Mic input noise (referred to input): >125 dBV
Mic input THD (@ 2Vo, tone controls flat): < .01%
Mic input frequency response (+/- 3 dB): 20 Hz - 80 KHz
Mic input maximum input level: 75mV 700Mv w/20 dB pad
Mic input maximum output level: 7.2 Vrms
Mic input input impedance: 8 kilohms (differential)
Mic input slew rate: 13 V/uS
EQ Frequencies
Bass - 155Hz / .61Q
Midrange - 796Hz / .56Q
Treble - 10KHz / .37Q
Two channel preamp
+15 volt phantom power
Two Ultra-High impedance 10 Meg Ohm stereo 1/4 in. input jacks
Two XLR input jacks with 40dB of gain and switchable 20dB pad
Output
Main XLR output
Two post EQ balanced XLR outputs
Single-ended buffered output with very low output impedance
Master Effects signal output (line level)
Two 1/4 in. stereo insertion points
Tuner / auxiliary output
Dimensions: 8.5 in. wide x 6.5 in. deep x 2.7 in. high
Weight: 2.9 lbs.
Single-ended input gain: 30 dB (adjustable)
Single-ended input noise (referred to input): >110 dBV
Single-ended input THD (@ 2Vo, tone controls flat): < .01%
Single-ended input frequency response (+/- 3 dB): 20 Hz - 80 KHz
Single-ended input maximum input level: 1 Vrms
Single-ended input maximum output level: 7.2 Vrms
Single-ended input input impedance: 10 Meg Ohms
Single-ended input slew rate: 13 V/uS
Mic input gain: 50 dB (20dB pad available)
Mic input noise (referred to input): >125 dBV
Mic input THD (@ 2Vo, tone controls flat): < .01%
Mic input frequency response (+/- 3 dB): 20 Hz - 80 KHz
Mic input maximum input level: 75mV 700Mv w/20 dB pad
Mic input maximum output level: 7.2 Vrms
Mic input input impedance: 8 kilohms (differential)
Mic input slew rate: 13 V/uS
EQ Frequencies
Bass - 155Hz / .61Q
Midrange - 796Hz / .56Q
Treble - 10KHz / .37Q
