Product Description

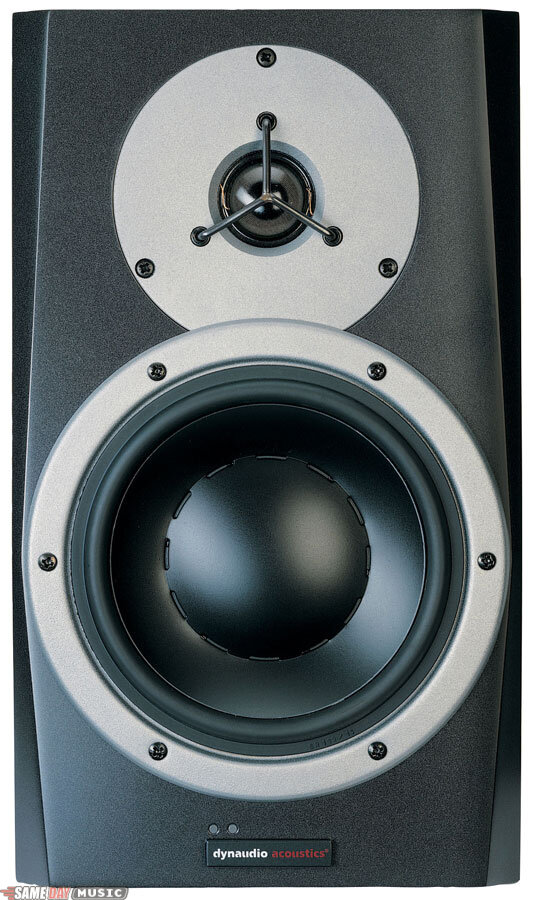

This high-performance monitor comes in a very compact design and it is extremely well suited for production environments where space is a concern. The BM 5A is well suited for music monitoring and mixing, broadcasting, OB vans, edit suites, playback suites, project studios and smaller post production facilities.

The small size in combination with the renowned Dynaudio Acoustics performance makes the BM 5A suitable for smaller 5.1 productions. When space is limited, the combination of the BM 5A with the BM 10S will deliver a full-blown 5.1 system with a remarkable performance, most often only known from larger setups.

The BM 5A monitor is a further development of the BM series and great effort has been made in extending the range with this small active monitor. Dynaudio Acoustics' engineers have redesigned and fine-tuned the BM 5A, according to the latest Dynaudio Acoustics technology.

The 2-way active system with a 175mm (6.9 in.) woofer and a 28 mm (1.1 in.) soft dome tweeter, builds on classical reference monitor technology. With the redesign of the exterior and the latest fine-tuning of the drivers, the BM 5A is sure to live up to even the most scrutinizing monitoring standards.

The BM 5A comes with a two times 50 watts amp package and a frequency response of 50 Hz - 21 kHz.

Technical Description

Model: BM5A

System: two-way active nearfield monitor

Frequency response (+/- 3 dB): 50 Hz - 21 kHz

Max SPL 1m, pair (IEC Short Term): 115 dB peak

Max SPL 2m, 5.1 (IEC Short Term): 116 dB peak

Input level for 85 dB SPL @1m (+4/-10): -16dBu RMS @ 0dB setting

Input level for max peak SPL (+4/-10): +9dBu Peak @ 0dB setting

Power consumption at idle: 10 W / Max: 90 W

Amplifier power:
Tweeter: 50 W

Woofer: 50 W

Resonance frequency: 55 Hz

Internal cabinet volume: 9 liters

Bass principle: bass reflex

Crossover frequencies: 1500 Hz

Crossover slope: 6 dB/oct

Tweeter: Esotec 28 mm/1.1 in. soft dome, rear chamber, Magnetic fluid. 4 mm die-cast aluminum front, Pure aluminum wire voice coil

Woofer: 175 mm/6.9 in., One-piece molded poly-prop cone, 75 mm/3 in. pure aluminum voice coil

Weight: 8.7 kg / 19.2 lbs

Dimensions (W x H x D): 186 x 320 x 320 mm / 7.3 in. x 12.5 in. x 12.5 in.

Catalog Description

Active monitors with pristine Dynaudio performance@Polypropylene 6.9" woofer@1.1" soft-dome tweeter@Biamplified with 50 watts each@6dB crossover at 1500Hz@Frequency response of 50Hz-21kHz +/-3dB
