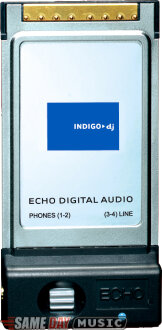

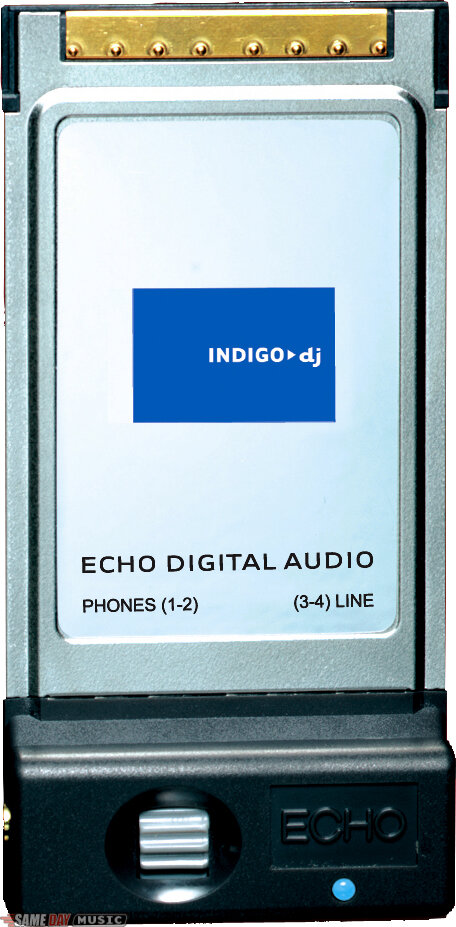

Echo Indigo DJ Dual Stereo 24/96 Laptop Cardbus

Finally, a portable solution for the digital DJ. Indigo DJ offers two independent stereo 1/8 in. analog outputs; one for setting up your cue mix on a pair of headphones, and the other for the house mix. Each output features 24-bit/96kHz converters for the quality you deserve. Also included is a 6 ft. audio cable for RCA or 1/4 in. connections.

A unique feature of the Indigo DJ is the use of "virtual" outputs. Indigo DJ appears to software as if it has 8 separate outputs, which are digitally mixed down to the physical outputs using Indigo DJ's "console" software and its on-board DSP. This makes Indigo DJ compatible with all popular multi-track software. And, with Echo's "multi-client" drivers, more than one application (such as an editor and a software synth) can be playing back through Indigo DJ at the same time.


Hardware Features
2 independent stereo 1/8 in. analog outputs

Preview cue mix on the headphone output while playing back house mix on the line output

High quality headphone amp

Analog volume control knob for headphone output

Supports true 24-bit, 96 kHz audio

High quality digital to analog converters

100 MHz 24-bit Motorola DSP

Powered by your notebook computer

Includes 6 foot adapter cable for RCA and 1/4 in. connections

Type II Cardbus slot required

Software Features
Software console for metering and setting levels

Supports Windows Me/2000/XP and Macintosh OS X

Supports pro audio and DJ software (WDM Kernel Streaming, ASIO, GSIF, and CoreAudio)

8 "Virtual Outputs" - run multiple applications at the same time

Low-latency drivers

Same Day Music is an authorized dealer of Echo products.

Analog Output
2 stereo 1/8 in. connectors (1 line output & 1 headphone output)
Frequency Response: 10Hz-20kHz, ±0.5dB
Dynamic Range: 110dB A-weighted
THD+n at -3dbfs, 1kHz sine wave: <0.0008% A-weighted
Nominal Output Level: -10dBV
Maximum Output level: +6.5 dBu

General Converter Specs
128x Oversampling converters
24 bit data resolution maintained throughout signal path
Multiple sampling rates supported: 32k, 44.1k, 48k, 88.2k, 96k

General
On-board 24-bit Motorola DSP for mixing and monitoring
Headphone amp with volume control

Host Interface
Bus mastering CardBus host interface

Same Day Music is an authorized dealer of Echo products.

Quality audio on your laptop@High-end converter@2 independent stereo 1/8" analog outputs@Fits in Type II Cardbus slot
