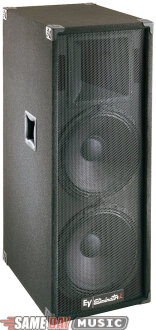

ElectroVoice ELIMII Loudspeaker (2x15 in.)
Handles 600 watt continuous.
Product rated 8.0 out of 10 (5 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The dual 15 in. low-frequency horn-loaded constant-directivity high-frequency system incorporates elements of Ring-Mode Decoupling (RMD). RMD techniques substantially improve vocal fundamental intelligibility and produce an up front tonality capable of cutting through even the most difficult acoustic environments.

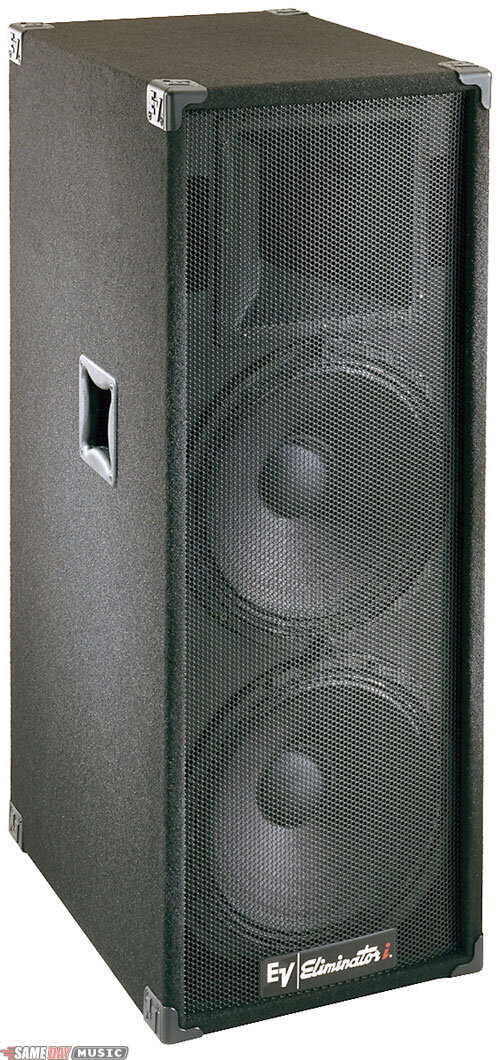

The Eliminator ii enclosure has a unique design that presents a very minimal frontal cross section while still maintaining substantial internal volume. A newly developed handle concept allows for extremely comfortable transportation from any orientation. The design is lightweight, but very rugged and features a heavy metal grille and highly stylized corner protection.
Features
Dual 15 in. two-way high-output stage system
600 watt continuous
RMD for improved clarity and presence
The heart of the Eliminator ii's high performance design is the combination of a high-excursion low-frequency suspension system with Electro-Voice's unique Ring-Mode Decoupling. All loudspeaker drivers exhibit mechanical resonance modes that add their own time-domain or ringing-mode colorations. These colorations limit and reduce overall system intelligibility. The Eliminator ii uses RMD to control several fundamental ringing modes. The result is substantially improved vocal range intelligibility and system openness.
Two 15 in. drivers provide very high output at the lower frequencies. When extended high output low-frequency operation is required, performance can be further enhanced by biamping the Eliminator ii with the Eliminator i Sub. Vented enclosures offer excellent power handling and low distortion in the lowest octave of rate operation. However, it is always advisable to filter material below enclosure tuning to further improve system output and headroom. The Eliminator ii should be high-pass filtered to reduce subsonic material below 40 Hz.
The Eliminator ii enclosure has a unique design that presents a very minimal frontal cross section while still maintaining substantial internal volume. A newly developed handle concept allows for extremely comfortable transportation from any orientation. The design is lightweight, but very rugged and features a heavy metal grille and highly stylized corner protection.
Features
Dual 15 in. two-way high-output stage system
600 watt continuous
RMD for improved clarity and presence
The heart of the Eliminator ii's high performance design is the combination of a high-excursion low-frequency suspension system with Electro-Voice's unique Ring-Mode Decoupling. All loudspeaker drivers exhibit mechanical resonance modes that add their own time-domain or ringing-mode colorations. These colorations limit and reduce overall system intelligibility. The Eliminator ii uses RMD to control several fundamental ringing modes. The result is substantially improved vocal range intelligibility and system openness.
Two 15 in. drivers provide very high output at the lower frequencies. When extended high output low-frequency operation is required, performance can be further enhanced by biamping the Eliminator ii with the Eliminator i Sub. Vented enclosures offer excellent power handling and low distortion in the lowest octave of rate operation. However, it is always advisable to filter material below enclosure tuning to further improve system output and headroom. The Eliminator ii should be high-pass filtered to reduce subsonic material below 40 Hz.
TECHNICAL DESCRIPTION
Frequency Response, Measured at 10 feet on axis (normalized to 1 watt/ 1 meter): 50 - 20,000 Hz ±3 dB
Long-Term Average Power Handling, EIA Standard RS-426-A: 600 watts
Sound Pressure Level, 1 W/1 m: 100 dB
Dispersion Angle Included by 6-dB Down Points:
- Horizontal: 60°
- Vertical: 40°
Transducer Complement:
- High Frequency: DH2010A
- HP64M constant directivity
- Low Frequency: 2x DL15BFH
Enclosure Tuning: 46 Hz
Crossover Frequency LF/HF: 1600 Hz
Impedance:
- Nominal: 4 ohms
- Minimum: 3.3 ohms
Input Connectors: Parallel Neutrik® model NL4MP
Enclosure Finish: Black carpeted
Dimensions:
- Height: 46 in. (116.84 cm)
- Width: 17.4 in. (44.20 cm)
- Depth: 24.25 in. (61.6 cm)
Net Weight: 119 lbs (53.98 kg)
Long-Term Average Power Handling, EIA Standard RS-426-A: 600 watts
Sound Pressure Level, 1 W/1 m: 100 dB
Dispersion Angle Included by 6-dB Down Points:
- Horizontal: 60°
- Vertical: 40°
Transducer Complement:
- High Frequency: DH2010A
- HP64M constant directivity
- Low Frequency: 2x DL15BFH
Enclosure Tuning: 46 Hz
Crossover Frequency LF/HF: 1600 Hz
Impedance:
- Nominal: 4 ohms
- Minimum: 3.3 ohms
Input Connectors: Parallel Neutrik® model NL4MP
Enclosure Finish: Black carpeted
Dimensions:
- Height: 46 in. (116.84 cm)
- Width: 17.4 in. (44.20 cm)
- Depth: 24.25 in. (61.6 cm)
Net Weight: 119 lbs (53.98 kg)
