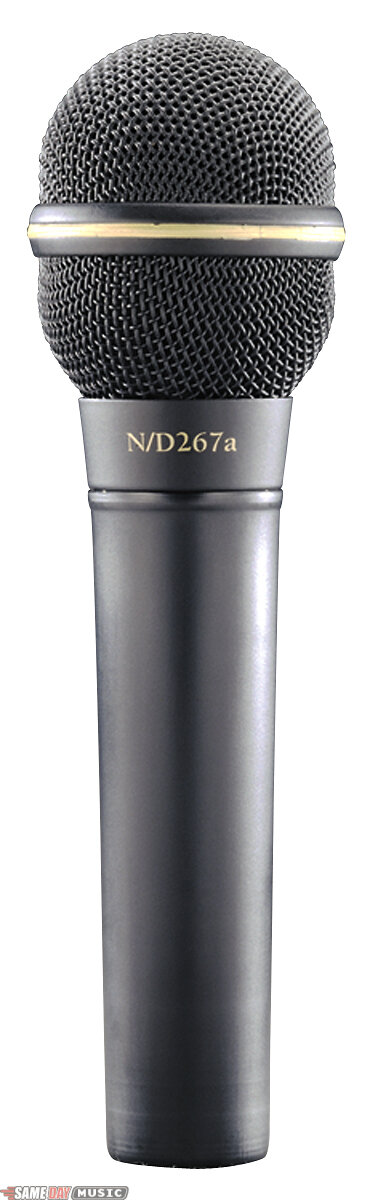

The Electro-Voice N/D267 is designed for high-quality vocal use in live sound and home recording situations. The N/D267 is a member of a family of microphones that are manufactured with refinements that enhance sonic smoothness, improve gain-before-feedback, and provide more consistent performance with greater durability than earlier generations of N/DYM microphones. The N/D267's acoustic response is tuned to achieve an extended frequency range with improved transient response, presenting clear lead and background vocals without the need for excessive equalization. Where exceptional vocal clarity is desired, the N/D267 is the microphone of choice.
As in all N/DYM microphones, the N/D267 features EV's outstanding neodymium-iron-boron magnetic structure to provide greater sensitivity and an exceptional signal-to-noise ratio. In addition, the N/DYM magnet geometry, combined with a large reinforced diaphragm design, produces a smooth, extended frequency response with a warm, open, and transparent sound quality normally found only in studio-quality microphones.
N/DYM microphones feature EV's AcoustiDYM shock-mount system. This unique vibration isolating system works as a multistage device. At low frequencies, a rear sound wave cancels the diaphragm motion while, at high frequencies, the specially designed rubber shock mount isolates the transducer from motion. Combining AcoustiDYM with the elastomeric Warm-Grip handle and the windscreen bumper produces an advanced technology, vibration-isolating system which dramatically reduces all forms of handling noise for the most demanding situations.
The N/D267 employs a cardioid polar pattern, providing enhanced front-area sensitivity and acoustic rejection directly behind the microphone, reducing feedback under live performance conditions. This is particularly useful with typical monitor speaker placement and high sound pressure level (SPL) requirements. Additionally, the N/D267's polar patterns are unusually uniform with frequency, ensuring superior gain-before-feedback in live applications and superior isolation when used in the studio. The N/D267 pop filters unique design utilizes a specially processed Acoustifoam filter to minimize wind noise and vocal P-pops. This design makes the pop filter an integral part of the microphones removable front grille assembly, allowing easy cleaning for continued top performance. The N/D267S has the added feature of an easily accessible on/off switch.Operation
The N/D267s low-frequency response varies with the distance of the sound source to the microphone. This is known as proximity effect. Maximum bass response is produced in close-up use with the microphone 1/4-inch from the sound source. Minimal bass response is experienced at distances greater than 24 inches. By working closer to the microphone, the human voice will sound more robust. Working the microphone close-up will also reduce the potential for feedback from a PA sound system. This benefit is in addition to the feedback-reducing cardioid polar pattern. When close-talked, the substantial bass boost provides an increase in overall microphone output level. The mixer gain may be proportionately reduced, resulting in a reduction of the systems sensitivity to feedback caused by sound entering the microphone from the loudspeakers.
The dynamic element of the N/D267 will provide reliable operation in extreme temperature, humidity and other adverse conditions that would render typical condenser microphones useless. These N/D267 features will provide years of trouble-free operation.Features:
- Cardioid polar pattern for superior feedback rejection and acoustic isolation
- Large-diaphragm for extended frequency response
- Superior multistage shock mount for unmatched low handling noise
- Handles high SPLs without distortionAbout Advanced Neodymium Microphones
This generation of N/DYM microphones from EV gives you the flexibility to choose exactly the right mic for high-quality vocal and instrumental reproduction live on stage or in the studio.
Each N/DYM mic is optimized for one specific application. Four vocal mics let the individuality of the performer's voice come through in any setting; the 3 instrumental mics enhance the virtuosity of a any instrumental performanceN/DYM Features:
N/DYM magnetic geometry with large reinforced diaphragm for smooth extended frequency response and a warm, transparent sound
AcoustiDYM shock-mount system for excellent vibration isolation
Patented DynaDamp pneumatic-pump shock
2-year unconditional limited lifetime warranty
Same Day Music is an authorized dealer of
Element: Dynamic N/DYM magnet structure
Close Response: 45 Hz to 15 kHz
Far Response: 100 Hz to 15 kHz
Polar Pattern: Cardioid
Impedance: Low-Z balanced (300 Ohms)
Open Circuit Voltage: 2.9 mV/Pascal @ 1.0 kHz
Power Level: (0 dB=1mW/pascal) -51.5 dB
Microphone Connector: 3-pin, XLR-type
Polarity: Pin 2 positive, referenced to pin 3 with positive pressure on diaphragm
Finish: Non-reflecting black
Materials: Memraflex grille screen Warm-Grip handle
Length: 7.12 in. (181 mm)
Diameter: 2.05 in. (52 mm)
Shank: 0.80 in. (20 mm)
Net @ 8.4 oz. (238 g)
Shipping @ 18.2 oz. (515 g)
Stand adapter (black)
Soft zippered "gig" bag
Same Day Music is an authorized dealer of
- Shipping Weights and Dimensions
- Shipping Weight: 2 lbs
