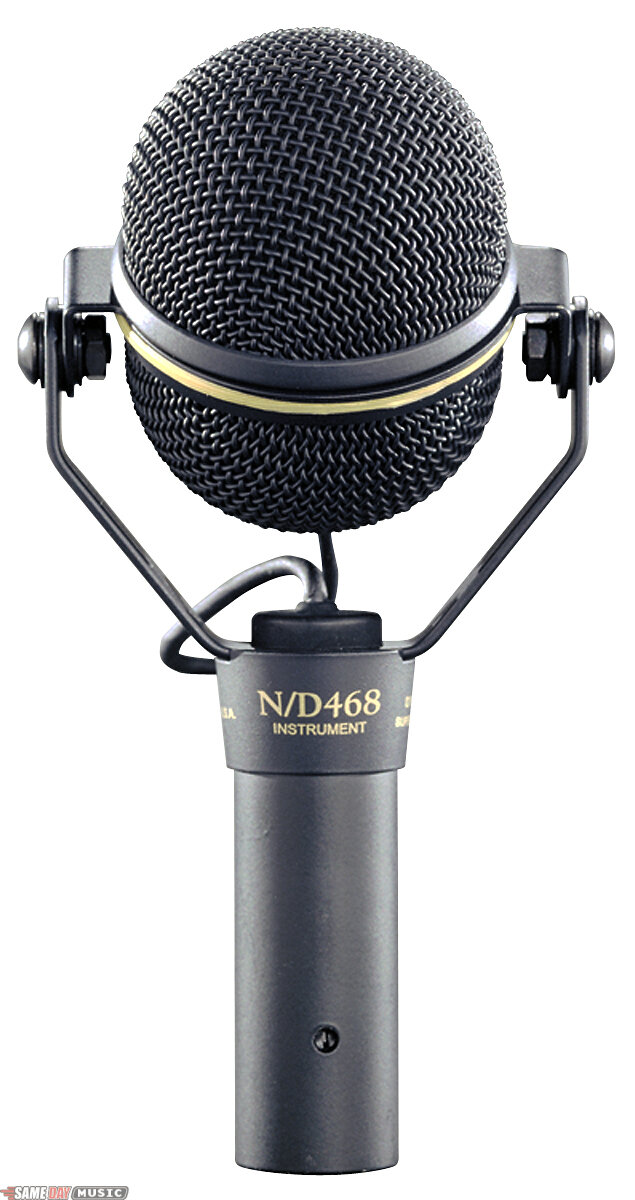

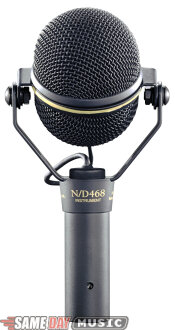

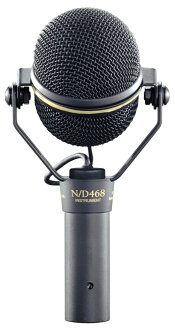

    Electro-Voice N/D468 N/DYM Dynamic Instrument Microphone, Supercardioid

    Dynamic supercardioid designed specifically for horns, drums, and both acoustic and electric guitars.

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone

    $159

    The Electro-Voice ND46 is a robust, high-performance dynamic supercardioid instrument microphone. Designed for capturing a wide variety of instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.2 Out of 10 (7 ratings)
    *********.*

    Electro-Voice ND468 NDYM Instrument Microphone Product Description

    The Electro-Voice N/D468 is specifically designed to accurately capture the sound of horns, acoustic and electric guitars, and the percussive energy of drums in both live performance and studio recording. The N/D468 is a member of a family of microphones manufactured to enhance sonic smoothness, improve gain-before-feedback, and provide more consistent performance with greater durability than earlier generations of N/DYM microphones. EV's microphone designers created a smooth, extended response with an open top end to reproduce instrumental sounds with natural acoustic accuracy. The N/D468s reduced size and exclusive pivoting yoke gives you maximum mechanical versatility on any instrument. The N/D468 is the musician's choice for a microphone with unsurpassed mechanical flexibility and studio-quality acoustics.

    Features:

    - N/DYM magnetic geometry with large reinforced diaphragm for smooth extended frequency response and a warm, transparent sound
    - AcoustiDYM shock-mount system for excellent vibration isolation
    - Lower feedback
    - P-pop prevention
    - Lower distortion
    - Patented DynaDamp pneumatic-pump shock
    - 2-year unconditional limited lifetime warranty

    Characteristic of all N/DYM microphones is the outstanding neodymium-iron-boron magnetic structure. This structure provides greater sensitivity for exceptional signal-to-noise ratio and improved recording quality. Combining the N/DYM magnetic structure with a large, reinforced diaphragm results in a transducer manifesting a warm, open, and transparent sound quality normally found in studio-quality microphones. The N/D468 also includes a highly effective humbucking coil that reduces hum interference from lighting and other electrical power sources.

    N/DYM microphones feature EV's AcoustiDYM shock-mount system. This unique vibration isolating system works as a multistage device. At low frequencies, a rear sound wave cancels the diaphragm motion while, at high frequencies, the specially designed rubber shock mount isolates the transducer from motion. Combined with the windscreen bumper, the shock mount forms an advanced technology, vibration-isolating system that dramatically reduces all forms of handling noise for the most demanding situations.

    To ensure superior gain-before-feedback in live performance and acoustic isolation in recording studio environments, the N/D468 is constructed with a supercardioid polar pattern. The supercardioid pattern yields greater rejection and acoustic isolation to off-axis sounds than the typical heart-shaped cardioid pattern. For enhanced clarity, the polar response is also unusually uniform with frequency. The impact of the supercardioid polar design is to reduce the likelihood of feedback in live performance conditions, particularly with typical monitor speaker placements.

    The N/D468 pop filters unique design utilizes a specially processed Acoustifoam filter to minimize wind noise and vocal pops. This design makes the pop filter an integral part of the microphones removable front grille assembly, allowing easy cleaning for continued top performance.

    Operation

    The N/D468s low-frequency response varies with the distance of the sound source to the microphone. This is known as proximity effect. Maximum bass response is produced in close-up use with the microphone 1/4-inch from the sound source. Minimal bass response is experienced at distances greater than 24 inches. By working closer to the microphone, the instrument will sound more robust. The pivoting yoke designed for the N/D468 allows this type of versatile microphone placement.

    Close miking will also reduce the potential for feedback from a PA sound system. This benefit is in addition to the feedback-reducing supercardioid polar pattern. When close-talked, the substantial bass boost provides an increase in overall microphone out-put level. The mixer gain may be proportionately reduced, resulting in a reduction of the systems sensitivity to feedback caused by sound entering the microphone from the loudspeakers.

    The dynamic element of the N/D468 will provide reliable operation in extreme temperature, humidity, and other adverse conditions that would render typical condenser microphones useless. These N/D468 features will provide years of trouble-free operation.

    About Advanced Neodymium Microphones

    EV gives you the flexibility to choose exactly the right mic for high-quality vocal and instrumental reproduction live on stage or in the studio.

    Each N/DYM mic is optimized for one specific application. Four vocal mics let the individuality of the performer's voice come through in any setting; the 3 instrumental mics enhance the virtuosity of a any instrumental performance

    Same Day Music is an authorized dealer of Electro-Voice products.

    ElectroVoice ND468 Technical Description

    Dynamic N/DYM- Magnet Structure: Yes

    Frequency Response: Close 30-22,000 Hz, Far 60-22,000 Hz

    Polar Pattern: Supercardioid

    Input Impedance: Low-Z balanced (150 ohms)

    Sensitivity: Open-Circuit Voltage 3.1 mV/Pascal at 1 kHz

    Power Level*: -51.0 dB

    Accessories (included with product): Stand clamp (black) and soft, zippered gig bag
