Product Description

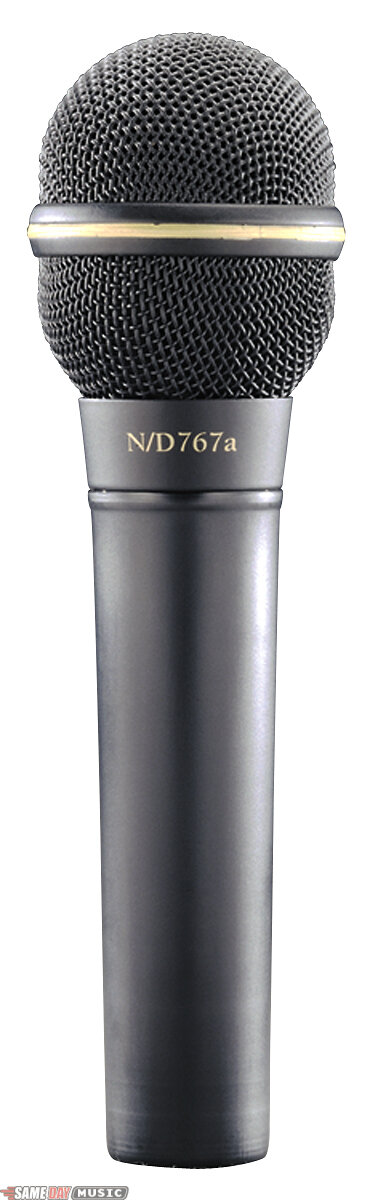

The new N/D767a presents optimal performance in a live sound environment. The 767a vocal microphone utilizes EV's new VOB (vocally optimized bass) technology to provide the performer with reduced low-end distortion and eliminates the muddiness found in other microphones. Combined with EV's industry-first neodymium-based magnet structure, the new N/D767a offers the power and clarity to "cut through the mix."

Microphone Use and Placement
Please note that micing techniques are a matter of personal preference.
These are merely guidelines to assist in the placement of the microphone to gain optimal performance.

Usage - Optimal Placement
Vocals: 0 to 6 in. from the windscreen, and on axis with the microphone.

Spoken Word: 5 to 10 in. from the windscreen, and on axis with microphone.

Operation
The low frequency response of the N/D767a microphone varies with the distance from the sound source. Known as "proximity effect," maximum bass response is produced in "close-up" use with the microphone 1/4 in. from the sound source. Normal bass response is experienced with working distances greater than 24 inches. Working close to the microphone will produce a more robust sound. Close up positioning of the microphone will also reduce the potential for feedback from the sound reinforcement system.When close-talked, the bass-boost provides an increase in overall microphone output level. The mixer gain may be proportionately reduced, resulting in a reduction of the system's sensitivity to feedback caused by sound entering themicrophone from the loudspeakers.

Features
VOB technology provides tailored bass response for controlled "proximity effect" and exceptional vocal clarity

Supercardioid pattern for superior feedback rejection and acoustic isolation.

Multistage shock mount for unmatched low-handling noise.

Neodymium based magnet structure provides greater sensitivity and signal-to-noise ratio.

Warm Grip handle for more comfortable feel.

Technical Description

Element: Dynamic N/DYM magnet structure

Frequency Response:
Close Response 35 Hz to 22 kHz
Far Response 70 Hz to 22 kHz

Polar Pattern: Supercardioid

Impedance: Low-Z balanced (300 Ohms)

Sensitivity:
Open Circuit Voltage 3.1 mV/Pascal @ 1.0 kHz
Power Level (0 dB=1mW/pascal) -51 dB
Microphone Connector: 3-pin, XLR-type

Polarity: Pin 2 positive, referenced to pin 3 with positive pressure on diaphragm

Finish: Non-reflecting black

Materials: Memraflex grille screen

Warm-Grip handle

Dimensions:
Length: 7.1 in. (181 mm)
Diameter: 21 in. (52 mm)
Shank: 0.80 in. (20 mm)

Weight:
Net: 9.2 oz (260 g)
Shipping: 18.9 oz (535 g)

Accessories included:
Stand adapter (black)
Soft zippered gig bag

Catalog Description

Great-sounding stage vocal mic@Supercardioid dynamic mic@Neodymium element for high output@Bass rolloff reduces proximity effect for clarity
