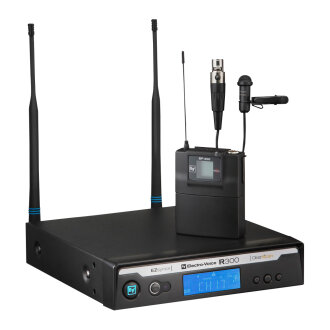

ElectroVoice R300L Lavalier Wireless System

Get more wireless for your money with the Electro-Voice R300L wireless lavalier microphone system. Unique features like One-Touch ClearScan and EZsync make the R300 quicker and easier to set up and use than any other similarly priced wireless system, while its rack-mountable metal receiver, sturdy metal bodypack transmitter, and remote-mountable antennas are of a build and performance quality usually reserved for the highest-end professional products.

System Includes:

- ULM18 lavalier/lapel microphone
- BP-300 bodypack transmitter
- R300 receiver

R300 Receiver

With a sleek, low-profile design and durable construction, the R300 receiver system is equally at home on a table top or in a 19-inch equipment rack. Its simple controls and easy-to-read display are designed to provide the ultimate in user-friendly operation. Rack-mount kits and front-mount antenna cables are available for professional installation. For applications with up to four receivers in one rack, the APD4+ antenna splitter can provide antenna and power feeds.

BP-300 Bodypack Transmitter

The BP-300 is an all-new metal bodypack transmitter that is rugged, compact, and easy to use. Using two AA batteries for 14 hours of use, the BP-300 is one of the most economical transmitters available for day-to-day operation. The unit's mute function keeps the RF signal live while muting the audio, protecting your channel and preventing noise in the audio system. A TA4 connector allows the unit to be used with any Electro-Voice lapel or head-worn microphone.

ClearScan Automatically Finds the Best Channel

Proven at the highest level of touring and trusted in thousands of installations around the world, Electro-Voice's industry-leading ClearScan system scans through the R300's 32 preset channels and selects the clearest channel -- all with the touch of a single button. In an increasingly challenging RF world, ClearScan gives you the confidence to go wireless without worry, ensuring noise-free operation and the longest operating range.

EZsync: Match Frequencies Fast

Matching the R300's transmitter and receiver frequencies is also as simple as the touch of a button. EZsync uses infrared technology to set the transmitter to the correct frequency, confirming operation in one automatic step. Error-free wireless setup has never been easier.

Features:

- ClearScan lets you find the clearest channel available with the touch of one button
- EZsync for infrared channel transfer from receiver to transmitter for easy and error-free setup
- ULM18 Lapel mic with directional pickup pattern for reduced feedback
- Rugged metal transmitters with backlit LCD display and battery gauge
- Bodypack with TA4 connector - compatible with all Electro-Voice lapel and head-worn microphones for easy upgrades
- 14-hour battery life from two AA alkaline batteries
- 32 preset channels, with compatible groups of 8 channels for simultaneous use
- Detachable half-wave receiver TNC antennas enable use with APD4+ antenna distribution system
- Metal receiver chassis with optional rack-mount ears and front-mount antenna cables

Same Day Music is an authorized dealer of Electro-Voice products.

R300 Receiver
- Frequency Range (RF):
- - A Band 618 - 634MHz
- - B Band 678 - 694 MHz
- Number of Channels: 32
- Modulation: +/- 40 kHz
- Diversity: Antenna
- RF Sensitivity: < 1.0 uV for 12 dB SINAD
- Image Rejection: > 55dB
- Squelch: Tone Code plus Amplitude
- Power Requirements: 12 - 16 VDC, 500mA max
- Dimensions(HxWxD): 1.72 x 7.8 x 8.0 inches / 43 x 206 x 210 mm

Audio Parameters
- Frequency Response: 80 - 18kHz +/- 2dB
- Balanced Output: 20 dBV (max at 40 kHz deviation)
- Unbalanced Output: Adjustable 8 mV to 0.755V RMS
- Distortion: < 1.0%, 0.4% typical (ref 1kHz, 40kHz deviation)
- Signal-to-Noise Ratio: > 100dB A Weighted
- Dynamic Range: > 95dB

PR-300 Bodypack Transmitter
- Radiated Output: 8 mW typical
- Power Requirements: Two AA Batteries
- Mic Input: TA4F Connector
- Battery Life: > 14 hours with AA Alkaline Typical
- Bodypack Antenna: Flexible external 1/4 wave
- Dimensions(HxWxD): 3.3 x 2.6 x 0.89 inches / 84 x 66 x 23 mm

Same Day Music is an authorized dealer of Electro-Voice products.

Shipping Weights and Dimensions

Band A, Frequencies 618 - 634MHz

Shipping Weight: 5 lbs

Shipping Dimensions: 16 x 12 x 3 in

Band B, Frequencies 678 - 694 MHz

Shipping Weight: 5 lbs

Shipping Dimensions: 16 x 12 x 3 in
