Product Description

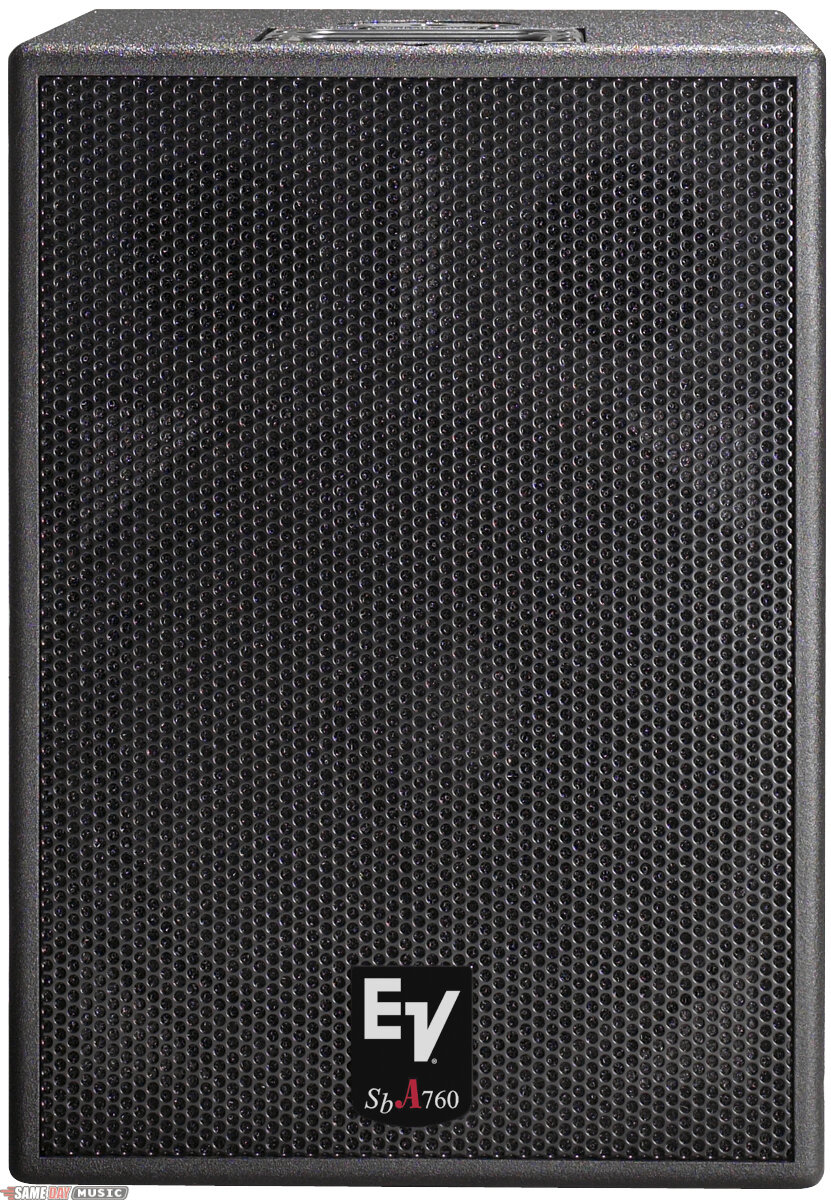

The Electro-Voice SbA760 is a new generation of hi-power compact subwoofers. Designed to match EV's Sx-series speakers, it s an ideal system extension for SxA100, SxA250, and SxA360 powered speakers. The SbA760 adds extended low frequency response to Sx300 and Sx100+ passive speakers driven by powered mixers. The state-of-the-art class H power amplifier module delivers 760 Watts RMS power to an EVS15FR 15 woofer. The audio performance and reliability of the amplifier is derived from the famous EV Precision series amplifiers. The Patented LPN (low-pass-notch) filter compensates for transient distortion of dynamic signals and allows, in combination with the PowerMax 12 crossover filter, the SbA760 to achieve a higher acoustic output than expected from a compact cabinet that size. The SbA760 includes a recessed pole mount and four casters for easy use and mobility.

Features
760W output power (RMS)

Compact, ergonomic size for easy transportation

EVS-series, direct radiating 15 woofer

Built-in stereo crossover with PowerMax 12 filter for higher acoustic system output

LPN-filter to compensate LF transient distortion for full extended bass response

Dynamic limiter and full protection package

Integrated pole-mount, 4 wheels, 5m (197 in. ) PowerCon lead

Technical Description

Frequency range (-10 dB): 42 Hz -- 150 Hz

Amplifier design: high-efficiency class H

Output power: 760W (RMS)

THD, rated: <0.05%

Sensitivity (SPL 1W/1m): 100 dB

Maximum calculated SPL: 128 dB

Components: EVS-15FR

Connectors: 2 XLR/jack combo input, 2 XLR slave through, 2 XLR mid-hi output

Level control: +40 dB to -10 dB

Internal crossover: PowerMax 12, 100 Hz

Protection: dynamic limiter, DC, HF high temperature, peak current limiter

Power requirements: 100V, 120V, 230V, 240V

Cabinet: 16mm plywood vented enclosure, 4 whells, pole mount (M20), 2 handles

Cabinet finish: Futura

Grille: black powder-coated steel

Dimensions (HxWxD/D with wheels): 23.7 in. x 16.9 in. x 22 in./26.2 in.

Net weight: 94.7 lbs
