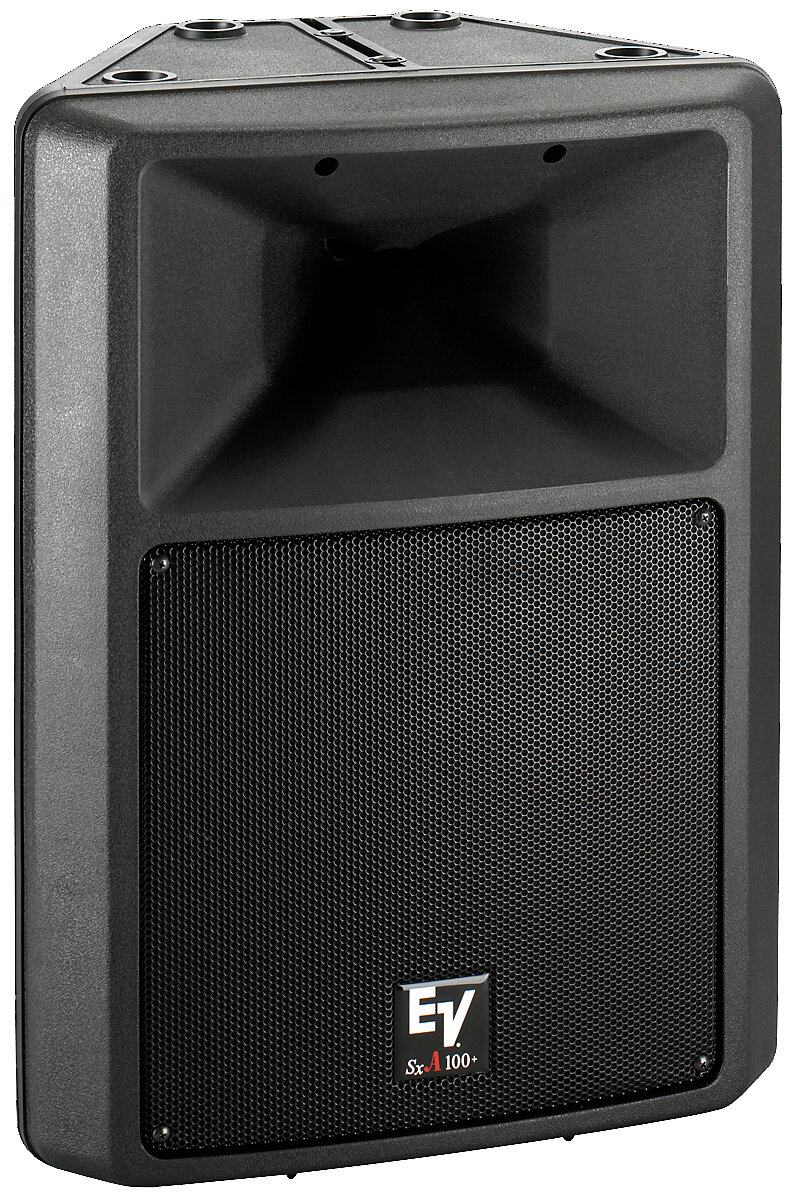

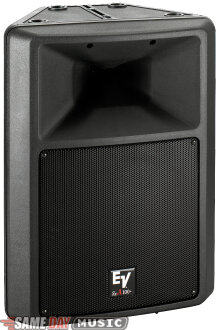

ElectroVoice SXA100PLUS Powered 2-way Speaker Cabinet Product Description
Same Day Music is an
authorized Electro-Voice dealer
The Electro-Voice SxA100+ sets a new standard for powered speakers. Its design provides the user multiple inputs with mix capability, an easy to use EQ section, and plenty of power in very compact, attractive package.
This is a full range loudspeaker ideal for most applications requiring high-quality sound. Careful attention to the dynamic requirements of music guided the amplifier design to provide high SPL without excessive heat. The high quality microphone preamplifier provides great sounding vocals or speech. A master level control sets the desired SPL, and the line input can be mixed and balanced with a microphone with its level control. Its linear response is easily optimized for speech or music with the on board multi-band equalization.
Electro-Voice didn't earn its reputation as a premier manufacturer of speakers all at once. 75 years ago Al Kahn set out to revolutionize a growing market by using new techniques in measurement and manufacture. Through the ensuing years, Electro-Voice has been home to many exciting advances in speaker technology. Such breakthroughs as Compound Diffraction Projector technology, Constant Directivity Horns, Manifold Technology, and today's cutting-edge Ring-Mode Decoupling techniques have paved the way for today's exciting line of Electro-Voice speakers.
From commercial applications to high-fidelity pro music and concert systems to houses of worship, Electro-Voice has the right speakers for your application.
Features- Compact, Ergonomic Size
- Integral Monitor Stand
- Mic and Line Inputs with Mix Capability
- 350 W Dynamic LF Power
- 80 W Dynamic HF Power
- LF and HF Equalization
- Line Output for Additional Speakers
- 65-degree x 65-degree Constant Coverage Horn
- High Sensitivity, 124 dB Maximum SPL
- Dynamic Filters Provide Overload Protection and Linear Response
- Molded-in Pole Mount, Easily Suspended
Same Day Music is an authorized dealer of
Electro-Voice
products.
Electro-Voice SXA100PLUS Technical Description
Frequency Response (-10dB): 50Hz - 20kHz
Maximum SPL: 124dB
Horizontal Coverage: 65-degree
Vertical Coverage: 65-degree
LF Amplifier Power: 350 watts 10ms burst, 150W Continuous
HF Amplifier Power: 80 watts 10ms burst, 50W Continuous
Maximum SPL: 124dB
Mic Input Sensitivity: -35dBu to 0dBu for full output
Line Input Sensitivity: -12dB to 0dBu for full output
LF Transducer: 12" (300mm)
HL Trandducer: 1" (25mm) exit DH2010 Compression Driver
Connectors:
- Balanced Mic, Line Inputs: XLR, XLR and 1/4" phone combination
- XLR
Equalization:
- Shelving: LF: +/- 6dB @ 140Hz
- HF: +/-4dB @ 5kHz
Power Requirement: 110-130 VAC, 50-60Hz, or 220-240VAX, 50-60Hz 600 Watts
Enclosure Material: Copolymer
Grille: Powder Coated Steel with Cloth
Dimensions: 23.1 (H) x 16.9 (W) x 12.3" (D) (586 x 429 x 312mm)
Net Weight (each): 43 lbs. (19.5 kg)
Shipping Weight: 47 lbs. (21.3 kg)
Same Day Music is an authorized dealer of
Electro-Voice
products.
- Shipping Weights and Dimensions
- Shipping Weight: 45 lbs
-
Shipping Dimensions:
24 x
18 x
18 in
ElectroVoice SXA100PLUS Powered 2-way Speaker Cabinet Catalog Description
2-way loudspeaker with onboard mixer@XLR Mic input; XLR-1/4 in. combo line in@Dedicated gain controls@2-band EQ
