Product Description

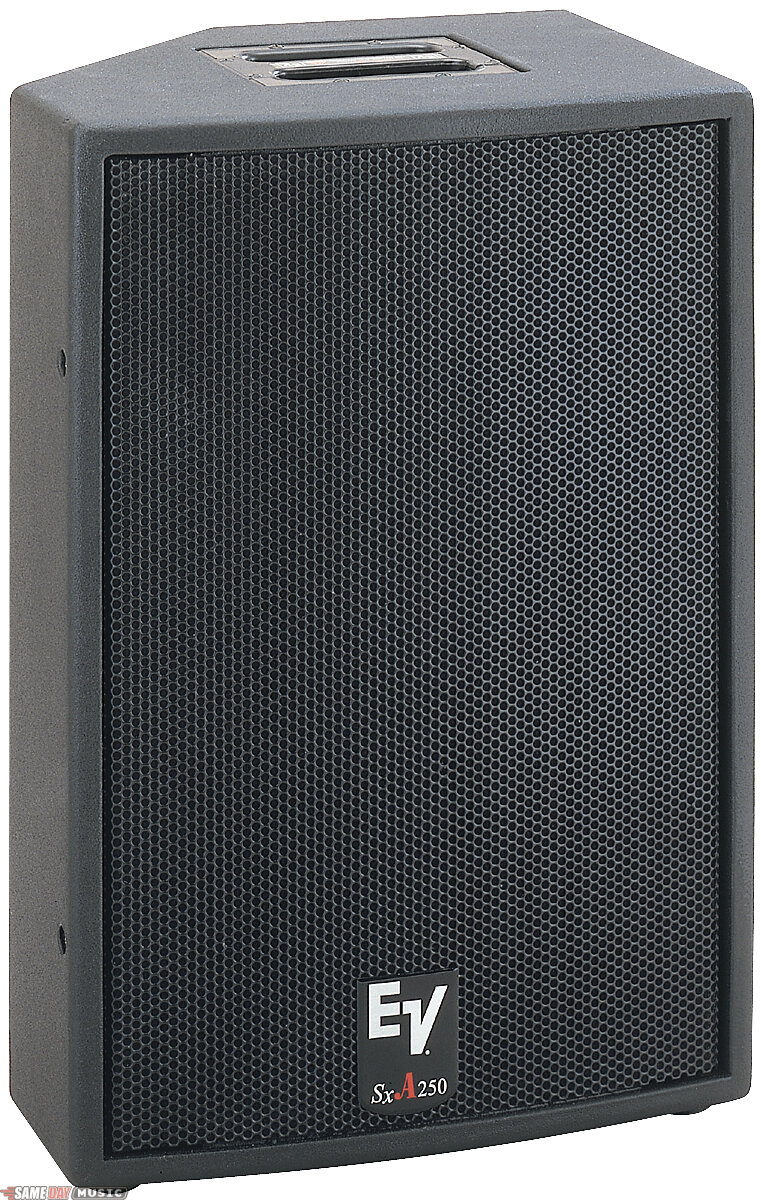

The SxA250 sets a new standard for powered speakers. Its design provides the user multiple inputs with mix capability, an easy to use EQ section, and plenty of power in a very compact, attractive package. This is a full range loudspeaker ideal for applications requiring high-quality sound. Careful attention to the dynamic requirements of music guided the amplifier design to provide high SPL. The high quality microphone preamplifier provides great sounding vocals or speech. A master level control sets the desired SPL, and the line input can be mixed and balanced with a microphone with its level control. Its linear response is easily optimized for speech or music with the on board multiband equalization. Built-in pole mount and optional rigging hardware make it easy to position for your application. The high-frequency section of the SxA250 utilizes a molded-in, 80 x 55 degree constant-directivity horn. This unique pattern contributes to high intelligibility. Vocals sound natural yet cut through reverberant, noisy rooms. Coverage pattern is uniform and sound quality off-axis is very well maintained, even at 40 off axis (an 80 total coverage angle). The SxA250 s high-frequency horn is driven by the DH2010A, a 1.25 inch diaphragm, wide-bandwidth, titanium-diaphragm driver using a unique, convex-drive TimePath phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.

Features
Compact 15-inch two-way powered system

Usable as a front-of-house system or as a floor monitor

Separate mic and line inputs with mix capability

350 watt dynamic LF power amplifier

80 watt dynamic HF power amplifier

LF and HF shelving equalization

Line output for cascading signal to additional speakers

80 x 55 degree constant directivity horn

126 dB maximum output capability

Enclosure is built of 18 mm plywood and finished in Futura, a sprayed-on polyurethane finish that is extremely durable.

Comes with metal stand mount and can be safely suspended using optional SK-1 hardware kit

Only 49 lbs

Technical Description

Frequency response (-10 dB): 55 Hz -- 20 kHz

Maximum SPL: 126 dB

Horizontal coverage: 80 degrees

Vertical coverage: 55 degrees

LF amplifier power: 350W 10ms burst, 150W continuous

HF amplifier power: 80W 10ms burst, 50W continuous

Mic input sensitivity: -35 dBu to 0 dBu for full output

Line input sensitivity: -12 dBu to 0 dBu for full output

LF transducer: 15 in.

HF transducer: 1.25 in. exit compression driver

Connectors:

-- Balanced inputs; mic, line: XLR, XLR % 1/4 in. phone combination

-- Balanced output: XLR

Equalization: shelving; LF +/- 6 dB @ 140 Hz, HF +/- 4 dB @ 5 kHz

Power requirement: 110-130 VAC, 50-60 Hz, 600 Watts

Enclosure material: 7-ply plywood

Grille: powder coated steel with cloth

Dimensions (HxWxD): 24.6 x 17.2 x 13.1 in.

Net weight (each): 49 lbs

Shipping weight: 53 lbs

Catalog Description

Powered speaker with mini-mixer@Mic and line inputs with mix control and 2-band EQ@Angled shape for monitor use; pole mount@2-way biamped system with 350 and 80 watts@15" woofer, HF horn
