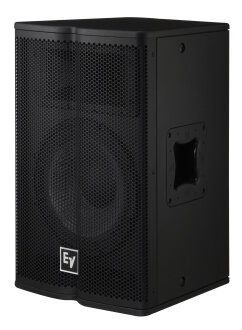

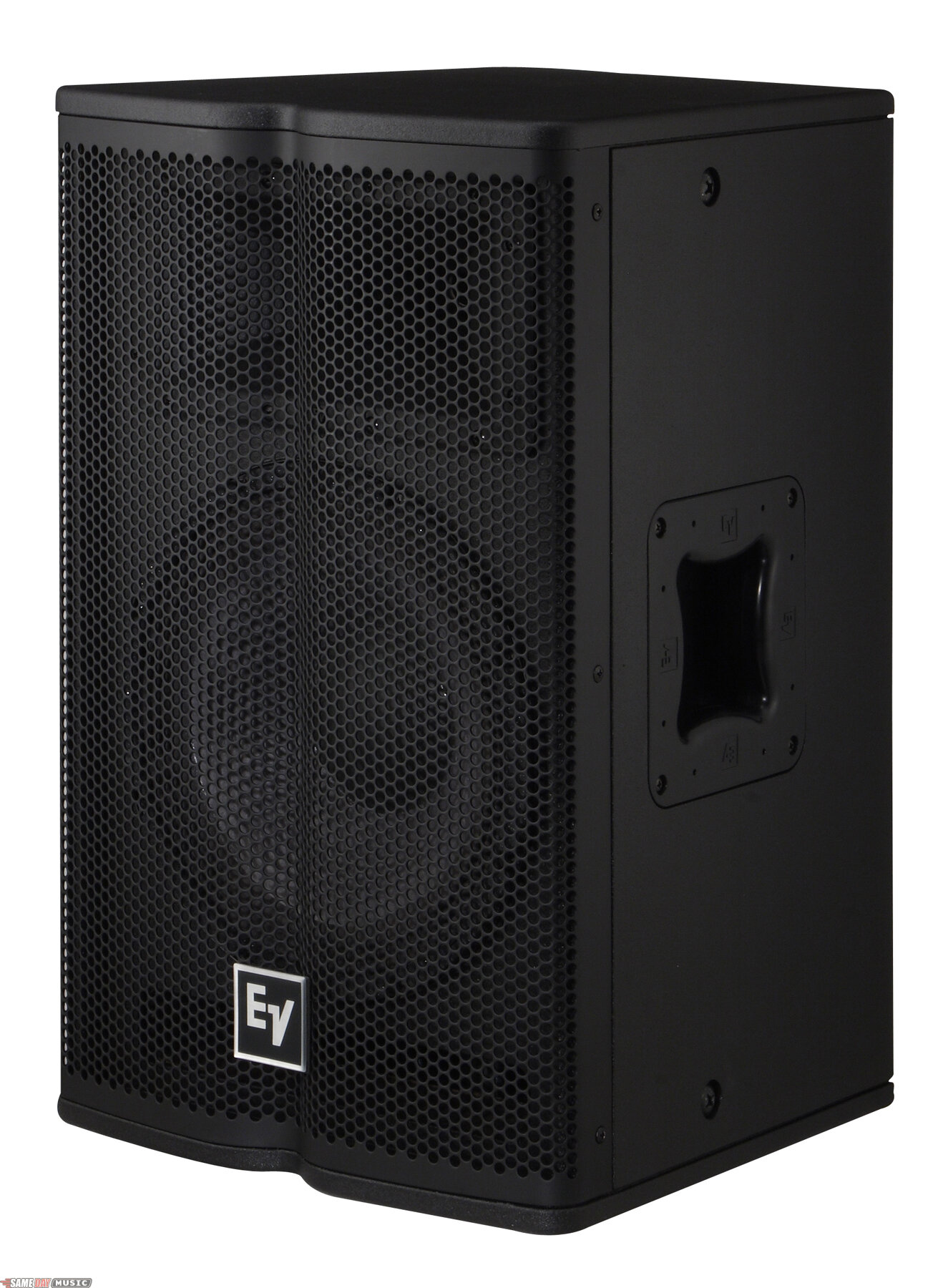

The ElectroVoice TX1122 is truly designed to be the compact over achiever of the Tour X family. Employing the same space saving 90 x 50 degree horn as the FM models, and the incredibly low distortion SMX2120 12-inch woofer, the TX1122 will astound you with performance that blows away competitive 15-inch two-ways. The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, integrated pole mount and (6) 3/8-inch threaded suspension inserts make the TX1122 easy to transport and employ in a variety of applications.
Tour X
ElectroVoice engineering ensures the World's biggest tours and events sound their best. The experience we've gained from 80 years spent shaping and influencing the professional sound reinforcement business makes its way into every loudspeaker we manufacture, including the new Tour X.
Tour X embodies the same ElectroVoice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.
A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:
- Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity
- Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
- Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
- All new proprietary EV designed ergonomic handles and angled input panels
Frequency Response (-3dB): 60 - 20000 Hz
Frequency Response (-10dB): 45 - 20000 Hz
Recommended High-Pass Frequency: 45 Hz
Sensitivity 1W/1m: 97 dB
Max. SPL / 1m (calc): 130 dB
Coverage (nominal -6dB) H degree: 90 degrees
Coverage (nominal -6dB) V degree: 50 degrees
Rotatable Horn: No
System Power Handling (continuous/program/peak): 500/1000/2000 Watts
LF Transducer: SMX2120
HF Transducer: DH3
Crossover Frequency: 1750 Hz
Nominal Impedance (Passive): 8 Ohms
Minimum Impedance: 5.4 Ohms
Enclosure Material: Plywood and MDF with EVCOAT
Suspension: (6) 3/8-inch threaded inserts
Color: Black
Flying: Yes
Input Connections: Parallel Neutrik NL4
Internal Crossover: Yes
Speaker Type: Fullrange
Weight Net: 20.2 kg ( 44.53 lbs )
Dimensions (HxWxD): 616 x 382 x 380 mm (24.25" x 15.04" x 14.96")
