    Electro-Voice TX1152FM TourX Vertical Floor Monitor

    Floor monitors with patent pending SST (Signal Synchronized Transducers) for near perfect driver phase summation.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

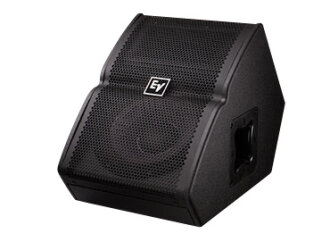

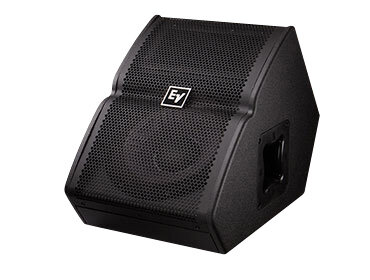

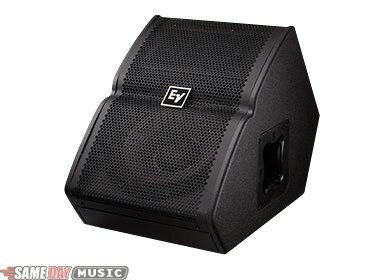

    Electro-Voice TX1152FM TourX Monitor (1x15") Product Description

    An undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM will redefine the world of stage monitors for years to come. Harkening back to the globally accepted EV FM series, the TX1122FM and TX1152FM take that legacy and advance it with a healthy dose of innovative Electro-Voice engineering. The most notable innovation is the split baffle design with patent pending SST (Signal Synchronized Transducers) technology. A split baffle creates two very important benefits: moving the acoustic origins of the compression driver and woofer close together, and the split in the baffle becomes the port, allowing the entire enclosure to become much more compact. The result is "signal synchronized" with near perfect phase summation! The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels make the TourX FM models easy to transport and set up in critical stage monitoring applications.

    Tour X
    ElectroVoice engineering ensures the World's biggest tours and events sound their best. The experience we've gained from 80 years spent shaping and influencing the professional sound reinforcement business makes its way into every loudspeaker we manufacture, including the new Tour X.

    Tour X embodies the same ElectroVoice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.

    A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:
    - Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity
    - Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
    - Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
    - All new proprietary EV designed ergonomic handles and angled input panels
    - Floor monitors with patent pending SST (Signal Synchronized Transducers) for near perfect driver phase summation

    Same Day Music is an authorized dealer of Electro-Voice products.

    Electro-Voice TX1152FM TourX Monitor Technical Description

    Frequency Response (-3dB): 65 - 20000 Hz

    Frequency Response (-10dB): 45 - 20000 Hz

    Recommended High-Pass Frequency: 45 Hz

    Sensitivity 1W/1m: 100 dB

    Max. SPL / 1m (calc): 133 dB

    Coverage (nominal -6dB) H degree: 90 degrees

    Coverage (nominal -6dB) V degree: 50 degress

    Rotatable Horn: No

    System Power Handling (continuous/program/peak): 500/1000/2000 Watts

    LF Transducer: SMX2151

    HF Transducer: DH3

    Crossover Frequency: 1750 Hz

    Nominal Impedance (Passive): 8 Ohms

    Minimum Impedance: 6.2 Ohms

    Enclosure Material: Plywood and MDF with EVCOAT

    Color: Black

    Flying: No

    Input Connections: Parallel Neutrik(R) NL4

    Internal Crossover: Yes

    Speaker Type: Fullrange

    Weight Net: 23.5 kg ( 51.81 lbs )

    Dimensions (HxWxD): 475 x 439 x 655 mm (18.7 x 17.28 x 25.79 in.)
