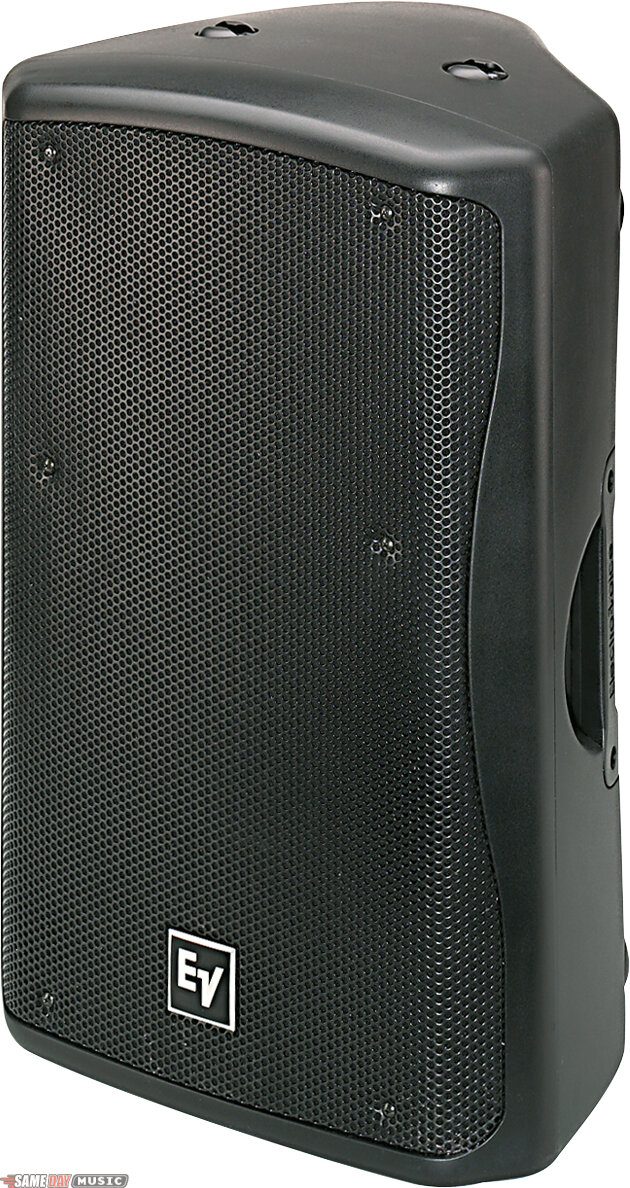

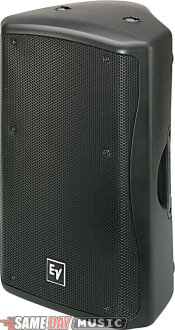

ElectroVoice ZX5-90B 2-Way Loudspeaker (600 Watts, 1x15 in.)
15 in., 2-way cabinet.
Product rated 1.0 out of 10 (1 rating)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The Zx5 is a 15 in., 2-way cabinet with the most elegant high-impact composite enclosure, featuring the newest generation of EV components: the all-new DXV3150, 500W, 15 in. woofer and the all-new 2 in. neodymium ND2 compression driver.
The Zx5 is rated for 600 watts long-term power handling and is able of producing high SPLs whilst providing a very smooth frequency response. With a 90-degrees x 50-degrees coverage pattern, two adjustable monitor angles (45- or 55-degrees,) and ten built-in rigging and suspension points allowing for a variety of mounting accessories, the Zx5 fits a variety of applications: installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stages with bands, musicians and P.A. rental companies.
ZX Series
The Advanced Generation of Versatile, High-Performance, Lightweight Speakers.
Building on decades of experience manufacturing lightweight molded enclosures with high-end components, ZX loudspeakers comprise a new family that takes it all to the next level. New, high-power woofers and drivers, contemporary styling, and innovative mechanical solutions for all permanent installation and mobile stage applications are sure to make ZX the new standard in lightweight sound.
The Zx5 is rated for 600 watts long-term power handling and is able of producing high SPLs whilst providing a very smooth frequency response. With a 90-degrees x 50-degrees coverage pattern, two adjustable monitor angles (45- or 55-degrees,) and ten built-in rigging and suspension points allowing for a variety of mounting accessories, the Zx5 fits a variety of applications: installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stages with bands, musicians and P.A. rental companies.
ZX Series
The Advanced Generation of Versatile, High-Performance, Lightweight Speakers.
Building on decades of experience manufacturing lightweight molded enclosures with high-end components, ZX loudspeakers comprise a new family that takes it all to the next level. New, high-power woofers and drivers, contemporary styling, and innovative mechanical solutions for all permanent installation and mobile stage applications are sure to make ZX the new standard in lightweight sound.
TECHNICAL DESCRIPTION
Frequency Response (-3dB): 58 - 18000 Hz
Frequency Response (-10dB): 39 - 20000 Hz
Recommended High-Pass Frequency: 36 Hz
Sensitivity 1W/1m: 98 dB
Max. SPL / 1m (calc); full space: 132 dB
Coverage (nominal -6dB) H°: 60 °
Coverage (nominal -6dB) V°: 60 °
System Power Handling (continuous/program/peak): 600/1200/2400 Watts
Low Frequency Power Handling (continuous/program/peak): 500/1000/2000 Watts
High Frequency Power Handling (continuous/program/peak): 40/80/160 Watts
LF Transducer: DVX3150
HF Transducer: ND2
Crossover Frequency: 1500 Hz
Nominal Impedance (Passive): 8 Ohms
LF Nominal Impedance: 8 Ohms
HF Nominal Impedance: 8 Ohms
Minimum Impedance: 6.5 Ohms
Color: Black
Color: White
Flying: Yes
Input Connections: Parallel Neutrik® NL4
Outdoor: Yes
Chassis Size: 15 in.
Internal Crossover: Selectable
Speaker Type: Fullrange, Mid-High, Two-Way, Wedges
Weight Net: 22.5 kg ( 49.6 lbs )
Dimensions (HxWxD): 692 x 446 x 411 mm (27.24 in. x 17.56 in. x 16.18 in.)
Frequency Response (-10dB): 39 - 20000 Hz
Recommended High-Pass Frequency: 36 Hz
Sensitivity 1W/1m: 98 dB
Max. SPL / 1m (calc); full space: 132 dB
Coverage (nominal -6dB) H°: 60 °
Coverage (nominal -6dB) V°: 60 °
System Power Handling (continuous/program/peak): 600/1200/2400 Watts
Low Frequency Power Handling (continuous/program/peak): 500/1000/2000 Watts
High Frequency Power Handling (continuous/program/peak): 40/80/160 Watts
LF Transducer: DVX3150
HF Transducer: ND2
Crossover Frequency: 1500 Hz
Nominal Impedance (Passive): 8 Ohms
LF Nominal Impedance: 8 Ohms
HF Nominal Impedance: 8 Ohms
Minimum Impedance: 6.5 Ohms
Color: Black
Color: White
Flying: Yes
Input Connections: Parallel Neutrik® NL4
Outdoor: Yes
Chassis Size: 15 in.
Internal Crossover: Selectable
Speaker Type: Fullrange, Mid-High, Two-Way, Wedges
Weight Net: 22.5 kg ( 49.6 lbs )
Dimensions (HxWxD): 692 x 446 x 411 mm (27.24 in. x 17.56 in. x 16.18 in.)
