    Electro-Voice ZXA1-90B 2-Way Active Speaker, 800 Watts

    Get quality sound for your concert or house of worship with the ElectroVoice ZXA1-90B active speaker.
    Product Rated 5 Out of 10 (1 rating)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 16J2-YQTX

    Web Item #ELVZXA1

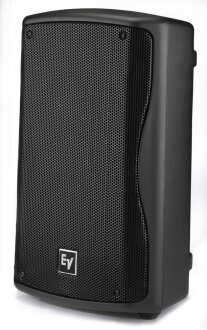

    ElectroVoice ZXA1-90B Active Speaker
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Owners Manual
    Electro-Voice Warranty: Electro Voice Warranty ´╗┐Electro-Voice offers the following warranties: 5 years on speakers; 3 years on electronics; and 2 years on microphones. If you have additional warranty questions, please call the manufacturer at 800-392-3497
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Today
    •
    • 2 Day: $14
    • Overnight: $50
    SpeedPlay: 2 payments of $249.50
    $499 Seen a lower price?
    In Stock | Will Ship Today
    •
    • 2 Day: $26
    • Overnight: $78
    SpeedPlay: 2 payments of $499.00
    $998 Seen a lower price?
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Electro-Voice ZXA1-90B 2-Way Active Speaker (800 Watts, 1x8") Product Description

    Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the ZXA1--the self-powered version of the best-selling ZX1 compact two-way loudspeaker.

    The ZXA1 is powered by an 800 watt amplifier module derived from EV's world-tour-class Tour Grade series--amplifiers with audio quality and reliability proven at the very highest levels.

    Features

    - Designed for Club Sound, Concert Sound, House of Worship, and other applications.
    - Integrated 800 watt power amplifier
    - Biamplified design with transducer protection
    - EV8L 8-inch high-output LF transducer
    - DH2005 1-inch exit true compression driver
    - 90 x 50 degree coverage pattern
    - Rotatable horn design
    - 123 dB maximum SPL
    - Selectable high-pass filter for use with subwoofers
    - Line and microphone inputs
    - Integral monitor angle on enclosure
    - Built-in pole mount
    - Lightweight (< 20 lbs) with integral handle for easy carrying

    Same Day Music is an authorized dealer of Electro-Voice products.

    ElectroVoice ZXA1-90B Technical Description

    - Input Connections: XLR and TRS Combo; XLR with Independent Gain
    - Power Requirement: 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A
    - Frequency Response: (-3 dB) 60 Hz - 20 kHz Hz Full Range Mode
    - Frequency Response: (-10 dB) 48 Hz - 20 kHz Hz Full Range Mode
    - Recommended High-Pass Frequency: 100Hz (User Selectable)
    - Max. SPL/1m (calc): 123 dB
    - LF Transducer: EV8L, 203mm (8-inch) Driver
    - HF Transducer: DH2005, 25mm (1-inch) Exit Compression Driver
    - Crossover Frequency: 1800 Hz
    - Enclosure Material: High Impact Polystyrene
    - Grill: Polyester Powder Coated, 18GA Galvanized Steel
    - Height: 457 mm (17.99 inches)
    - Width: 282 mm (11.1 inches)
    - Depth: 264 mm (10.39 inches)
    - Weight: 8.62 kg (19 lbs)
    - Shipping Weight: 10.3 kg (22.7 lbs)

    Same Day Music is an authorized dealer of Electro-Voice products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 22 lbs
    Shipping Dimensions: 18 x 13 x 12 in
    Pair
    Shipping Weight: 44 lbs
