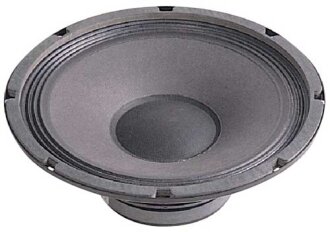

Eminence Alpha-10A Speaker, 150 W, 10-Inch
Kapton coil former. Ferrite magnet. Pressed steel basket.
Product Rated
9.7
Out of 10
(8 ratings)
The fastest way to the lowest price, guaranteed!
Found a lower price? We'll beat it, fast.
Call 866-SHIP-SDM (866-744-7736) with service code QSS-YCZF
More Resources
Manuals and Documents:
Eminence Selection Guide
Guitar Speaker Cross Reference
Sensitivity Guide
Spec Sheet
Tonal Guide
Eminence Warranty:
If you have additional warranty questions,
please call the manufacturer at 502-845-5622
FIND SIMILAR PRODUCTS
Pay only half today and get playing faster.
Pay the remainder in 60 days -
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
Recommended Accessories for Eminence Alpha 10 Speaker
$29.99
from $9
from $11
Eminence Alpha 10 Speaker (150 Watts, 10") Product Description
Same Day Music is an
authorized Eminence dealer
Ideal for 2-way sound reinforcement systems, keyboards, guitar combos.authorized Eminence dealer
Features:
Kapton coil former
Ferrite magnet
Pressed steel basket
Polyamide-imide coated copper voice coil
Paper cone/cloth cone edge
Solid composition paper dust cap
Same Day Music is an authorized dealer of Eminence products.
Eminence Alpha 10 Speaker Technical Description
Nominal Basket Diameter: 10 in., 254mm
Impedance: 8 ohm
Power Rating: 150W rms
Music Program: 300W
Resonance: 50Hz
Usable Frequency Range: 45Hz - 5kHz
Average Sensitivity: 1W @ 1m 97 dB
Magnet Weight: 20oz.
Gap Height: 0.25 in., 6.35mm
Voice Coil Diameter: 1.5 in., 38.1mm
Mounting Information
Overall Diameter: 10.11 in., 256.8mm
Baffle Hole Diameter: 9.13 in., 231.8mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.225 in., 5.7mm
Mounting Hole B.C.D.: 9.6 in., 243.8mm
Depth: 3.90 in., 99mm
Shipping Weight: 5.8 lbs., 2.6 kg
Thiele-Small Parameters
Resonant Frequency: 50Hz
Impedance (RE): 5.31 ohm
Coil Inductance (Le): 0.66mH
Electromagnetic Q (Qes): 0.66
Mechanical Q (Qms): 5.21
Total Q (Qts): 0.59
Compliance Equivalent Volume (Vas): 82.2 liters, 2.9 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 113cc
Mechanical Compliance of Suspension (Cms): 0.46mm/N
BL Product (BL): 7.5 T-M
Diaphragm Mass inc. Airload (Mms): 22 grams
Equiv. Resistance of Mechanical Suspension Loss (Rms): 1.33N*sec/M
Efficiency Bandwidth Product (EBP) 75
Voice Coil Overhang (Xmax) 3.2mm
Surface Area of Cone (Sd) 355.4cm2
Impedance at Resonance (Zmax) 47 ohm
Important Note
Watts:
The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program:
The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
Same Day Music is an authorized dealer of Eminence products.
Impedance: 8 ohm
Power Rating: 150W rms
Music Program: 300W
Resonance: 50Hz
Usable Frequency Range: 45Hz - 5kHz
Average Sensitivity: 1W @ 1m 97 dB
Magnet Weight: 20oz.
Gap Height: 0.25 in., 6.35mm
Voice Coil Diameter: 1.5 in., 38.1mm
Mounting Information
Overall Diameter: 10.11 in., 256.8mm
Baffle Hole Diameter: 9.13 in., 231.8mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.225 in., 5.7mm
Mounting Hole B.C.D.: 9.6 in., 243.8mm
Depth: 3.90 in., 99mm
Shipping Weight: 5.8 lbs., 2.6 kg
Thiele-Small Parameters
Resonant Frequency: 50Hz
Impedance (RE): 5.31 ohm
Coil Inductance (Le): 0.66mH
Electromagnetic Q (Qes): 0.66
Mechanical Q (Qms): 5.21
Total Q (Qts): 0.59
Compliance Equivalent Volume (Vas): 82.2 liters, 2.9 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 113cc
Mechanical Compliance of Suspension (Cms): 0.46mm/N
BL Product (BL): 7.5 T-M
Diaphragm Mass inc. Airload (Mms): 22 grams
Equiv. Resistance of Mechanical Suspension Loss (Rms): 1.33N*sec/M
Efficiency Bandwidth Product (EBP) 75
Voice Coil Overhang (Xmax) 3.2mm
Surface Area of Cone (Sd) 355.4cm2
Impedance at Resonance (Zmax) 47 ohm
Important Note
Watts:
The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program:
The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
Same Day Music is an authorized dealer of Eminence products.
- Shipping Weights and Dimensions
- 8 Ohms
- Shipping Weight: 6 lbs
- Shipping Dimensions: 13 x 13 x 6 in
