    Eminence Alpha-12A Speaker, 150 W, 12-Inch

    Kapton coil former. Ferrite magnet. Pressed steel basket.
    Product Rated 9 Out of 10 (11 ratings)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 170S-YGLF

    Web Item #EMNALPHA12A

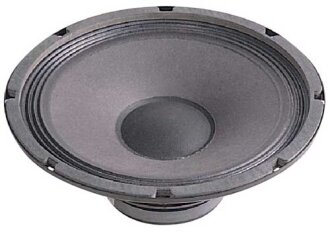

    Eminence Alpha 12 12 Inch Speaker
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Eminence Warranty: If you have additional warranty questions, please call the manufacturer at 502-845-5622
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Thu
    •
    • 2 Day: $18
    • Overnight: $46
    SpeedPlay: on orders of
    $249
    $59.99 Seen a lower price?
    This product ships to: Can ship to United States

    This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Eminence Alpha 12 Speaker (150 Watts, 12") Product Description

    Ideal for two-way sound reinforcement systems, keyboard, guitar combos.

    Same Day Music is an authorized dealer of Eminence products.

    Eminence Alpha 12 Speaker Technical Description

    Nominal Basket Diameter- 12 in., 304.8mm

    Impedance- 8 ohm

    Power Rating- 150W rms

    Music Program- 300W

    Resonance- 49Hz

    Usable Frequency Range- 45Hz - 5kHz

    Average Sensitivity- 1W @ 1m 98 dB

    Magnet Weight- 20oz.

    Gap Height- 0.25", 6.35mm

    Voice Coil Diameter- 1.5", 38.1mm

    Resonant Frequency- 49Hz

    Impedance (RE)- 6.30 ohm

    Coil Inductance (Le)- 0.79mH

    Electromagnetic Q (Qes)- 0.88

    Mechanical Q (Qms)- 6.53

    Total Q (Qts)- 0.77

    Compliance Equivalent Volume (Vas)- 121.5 liters (4.29 cu.ft.)

    Peak Diaphragm Displacement- Volume (Vd) 125cc

    Mechanical Compliance of suspension (Cms)- 0.32mm/N

    BL Product (BL)- 8.5 T-M

    Diaphragm Mass inc. Airload (Mms)- 33 grams

    Equiv. Resistance of mechanical suspension loss (Rms)- 1.54N*sec/M

    Efficiency Bandwidth Product (EBP)- 56

    Voice Coil Overhang (Xmax)- 2.4mm

    Surface Area of Cone (Sd)- 519.5cm2

    Impedance at Resonance (Zmax)- 53 ohm

    Important Note

    Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

    (Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

    Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.

    Same Day Music is an authorized dealer of Eminence products.
    Shipping Weights and Dimensions
    Shipping Weight: 8 lbs
    Shipping Dimensions: 18 x 17 x 7 in
