    Eminence BETA-6A PA Speaker (350 Watts, 6.5")

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

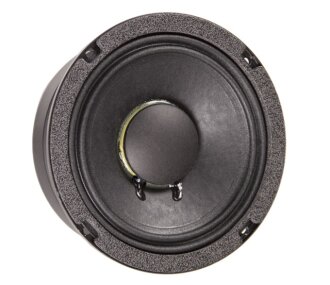

    Eminence BETA-6A PA Speaker (350 Watts, 6.5") Product Description

    The Eminence Beta-6A is a high power 6.5" Mid/Bass driver for use in concert sound systems or in high-powered automobile sound as a mid/bass or a midrange driver. This driver also works well in small sealed or vented enclosures and in infinite baffles. The Beta-6A features a 2" voice coil and a relatively large 30 ounce magnet that allows the 6A to handle up to 350-watts music program and accurately reproduce frequencies from 84Hz to 4kHz. 8 ohms.

    Same Day Music is an authorized dealer of Eminence products.

    Eminence BETA-6A PA Speaker (350 Watts, 6.5") Technical Description

    - Nominal Basket Diameter: 6.5" / 165.1 mm
    - Impedance: 8 Ohms
    - RMS Power Rating: 175 Watts
    - Program Power Handling: 350 Watts
    - Frequency Response: 84Hz - 4.0kHz
    - Sensitivity (1W/1m): 94dB
    - Voice Coil Diameter: 2" / 50.8 mm
    - Max. Crossover Frequency: 4.0 kHz
    - Overall Diameter: 6.59" /167.39 mm
    - Bolt Circle Diameter: 6.06" / 153.9 mm
    - Baffle Cutout Diameter: 5.69" / 181 mm
    - No. Of Mounting Holes: 4
    - Mounting Hole Diameter: 0.23" / 5.84 mm
    - Overall Depth: 2.66" / 67.56 mm
    - Magnet Weight: 30 oz.
    - Net Weight: 5.6 lbs. / 2.54 kg.
    - Shipping Weight: 6.3 lbs. /2.86kg.
    - Resonant Frequency (fs): 122.6 Hz
    - Impedance (Re): 5.18 ohms
    - Coil Inductance (Le): 0.43mH
    - Electromagnetic Q (Qes): .66
    - Mechanical Q (Qms): 3.46
    - Total Q (Qts): .56
    - Compliance Equivalent Vol. (Vas): 3.51 Liters/.12cu. ft.
    - Voice Coil Overhang (Xmax): 4.5mm
    - BL Factor (BL): 8.13 T-M
    - Surface area of Cone (Sd): .01299m2

    Same Day Music is an authorized dealer of Eminence products.
    Shipping Weights and Dimensions
    Shipping Weight: 7 lbs
    Shipping Dimensions: 9 x 9 x 4 in
