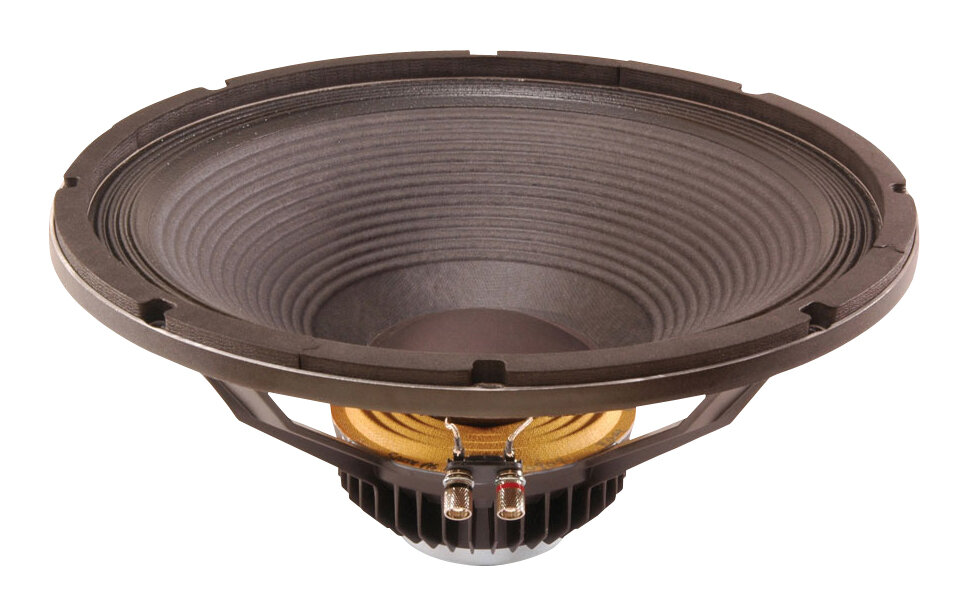

Eminence Basslite C2515 Bass Speaker, 300 W, 15-Inch

The Eminence Basslite C2515 Speaker delivers great tone and is very light in weight due to its neodymium magnet. Recommended for bass guitar amplifiers as a replacement speaker, the Basslite is excellent in either sealed or vented enclosures.

Eminence recommends the Basslite C2515 as a replacement speaker for the Kustom Groove 215H speaker cabinet, Behringer Ultrabass BXL3000, Fender Rumble 100, Ampeg BA115T, Ampeg B200R combo amps, and many more.

Features

- Materials Of Construction
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Neodymium magnet
- Core Details Vented core
- Basket Materials Die-cast aluminum basket
- Cone Composition Paper Cone
- Cone Edge Composition Cloth cone edge
- Dustcap Composition Solid composition paper dust cap

Same Day Music is an authorized dealer of Eminence products.

Nominal Basket Diameter: 15", 381mm

Nominal Impedance: 4 ohms

Power Rating:
- Watts: 300W
- Music Program: 600W

Resonance: 38Hz

Usable Frequency Range: 52Hz-2.5kHz

Sensitivity: 98

Magnet Weight: 7 oz.

Gap Height: 0.28 inches, 7mm

Voice Coil Diameter: 2.5 inches, 63.5mm

Thiele and Small Parameters

Resonant Frequency (fs): 38Hz

DC Resistance (Re): 3.72

Coil Inductance (Le): 0.39mH

Mechanical Q (Qms): 4.7

Electromagnetic Q (Qes): 0.50

Total Q (Qts): 0.45

Compliance Equivalent Volume (Vas): 260 liters / 9.2 cu.ft.

Mechanical Compliance of Suspension (Cms): 0.26mm/N

BL Product (BL): 11.1 T-M

Diaphram Mass inc. Airload (Mms): 70 grams

Efficiency Bandwidth Product (EBP): 76

Maximum Linear Excursion (Xmax): 4.5mm

Surface Area of Cone (Sd): 856 cm2

Maximum Mechanical Limit (Xlim): 8.5mm

Mounting Information

Recommended Enclosure:
- Sealed: 45-82 liters/ 1.6-2.9 cu.ft.
- Vented: 85-119 liters/ 3-4.2 cu.ft.

Overall Diameter: 5.32 inches, 389.1mm

Baffle Hole Diameter: 14.0 inches, 355.6mm

Front Sealing Gasket: Fitted as standard

Rear Sealing Gasket: Fitted as standard

Mounting Holes Diameter: 0.28 inhes, 7.0mm

Mounting Holes B.C. D.: 14.56 inches, 369.9mm

Depth: 6.9 inches, 175mm

Net Weight: 5.7 lbs., 2.6 kg
