Product Description

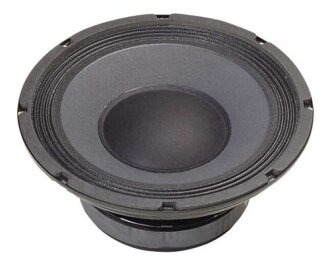

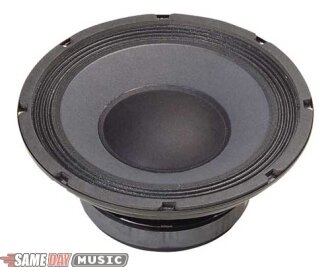

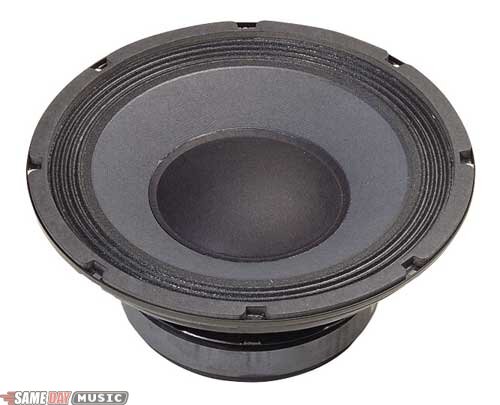

This 10 in. speaker from the Delta series is designed for midrange in 3-way systems and bass-mid in 2-way systems. It is also suitable for bass guitar, keyboards, club music systems, and stage monitors.

Features
Kapton coil former

Ferrite magnet

Pressed steel basket

Paper cone/cloth cone edge

Polyamide-imide coated aluminum edgewound voice coil

Solid composition paper dust cap

Technical Description

Nominal Basket Diameter: 10 in., 254mm

Impedance: 8 or 16 ohm

Power Rating: 350W RMS

Music Program: 700W

Resonance: 66Hz

Usable Frequency Range: 65Hz to 3.5kHz

Average Sensitivity: 1W @ 1m 99 dB

Magnet Weight: 56oz.

Gap Height: 0.375 in., 9.52mm

Voice Coil Diameter: 2.5 in., 63.5mm

Mounting Information
Overall Diameter: 10.09 in., 256.2mm

Baffle Hole Diameter: 9.05 in., 229.7mm

Front Sealing Gasket: fitted as standard

Rear Sealing Gasket: fitted as standard

Mounting Holes Diameter: 0.25 in., 6.4mm

Mounting Hole B.C.D.: 9.66 in., 245.4mm

Depth: 4.25 in., 108mm

Shipping Weight: 12.2 lbs, 5.5 kg

Thiele-Small Parameters
Resonant Frequency: 66Hz

Impedance (RE): 5.42 ohm

Coil Inductance (Le): 0.74mH

Electromagnetic Q (Qes): 0.35

Mechanical Q (Qms): 6.53

Total Q (Qts): 0.33

Compliance Equivalent Volume (Vas): 30.5 liters 1.08 cu.ft

Peak Diaphragm Displacement Volume (Vd): 55cc

Mechanical Compliance of suspension (Cms): 0.18mm/N

BL Product (BL): 14.4 T-M

Diaphragm Mass inc. Airload (Mms): 32 grams

Equiv. Resistance of mechanical suspension loss (Rms): 2.04N*sec/M

Efficiency Bandwidth Product (EBP): 189

Voice Coil Overhang (Xmax): 1.6mm

Surface Area of Cone (Sd): 344.9cm2

Impedance at Resonance (Zmax): 107 ohm

Important Note

Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
