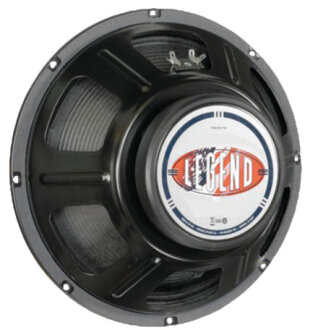

    Eminence Guitar Legend 125 Speaker
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Eminence Warranty: If you have additional warranty questions, please call the manufacturer at 502-845-5622
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $12
    • Overnight: $40
    SpeedPlay: on orders of
    $249
    $69.99 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    This item cannot be returned once opened due to the possibility that it has been used.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Eminence Guitar Legend 125 Speaker, 50 Watts and 12" Product Description

    Producing a pure vintage tone, the Eminence Guitar Legend 125 Speaker is used in reissues of some of your favorites. Its nice, smooth response curve produces superb, classic blues tonal characteristics. It can be used as a replacement or upgrade.

    Features:

    - Kapton coil former
    - Ferrite magnet
    - Pressed steel basket
    - Polyamide-imide coated copper voice coil
    - Paper cone/paper cone edge
    - Solid composition paper dust cap

    The World's Favorite Guitar Speakers

    Eminence Guitar Legends are specially designed for electric guitar amplifiers. Tuned by skilled ears, these hand-built specials feature a range of materials and ideas from over 30 years of experience.

    Same Day Music is an authorized dealer of Eminence products.

    Eminence Guitar Legend 125 Speaker, 50 Watts and 12" Technical Description

    - Impedance: 8 ohms
    - Power Rating: 50W rms
    - Usable bandwidth (Fs - 3db): 80Hz - 5kHz
    - Average Sensitivity 1w @ 1m: 102 dB
    - Magnet Weight: 34 oz.
    - Voice Coil Diameter: 1.5", 38.1mm

    Mounting Information
    - Nominal Basket Diameter: 12.02", 305.2mm
    - Baffle Hole Diameter 10.97", 278.6mm
    - Mounting Holes Diameter: 0.25", 6.4mm
    - Mounting Hole B.C.D.: 11.63", 295.3mm
    - Depth: 4.9", 124mm
    - Shipping Weight: 9.4 lbs., 4.3 kg

    Thiele-Small Parameters
    - Resonant Frequency: 94Hz
    - Impedance (RE): 7.44 ohm
    - Coil Inductance (Le): 0.70mH
    - Electromagnetic Q (Qes): 1.18
    - Mechanical Q (Qms): 6.15
    - Total Q (Qts): 0.99
    - Compliance Equivalent Volume (Vas): 32.5 liters/1.15 cu. ft.
    - Peak Diaphragm Displacement Volume (Vd): 24cc
    - Mechanical Compliance of suspension (Cms): 0.09mm/N
    - BL Product (BL): 10.9 T-M
    - Diaphragm Mass inc. Airload (Mms): 32 grams
    - Equiv. Resistance of mechanical suspension loss (Rms): 3.07N*sec/M
    - Efficiency Bandwidth Product (EBP): 79
    - Voice Coil Overhang (Xmax): 0.5mm
    - Surface Area of Cone (Sd): 506.7cm2
    - Impedance at Resonance (Zmax): 46 ohm

    Same Day Music is an authorized dealer of Eminence products.
    Shipping Weights and Dimensions
    Shipping Weight: 10 lbs
    Shipping Dimensions: 18 x 17 x 7 in
