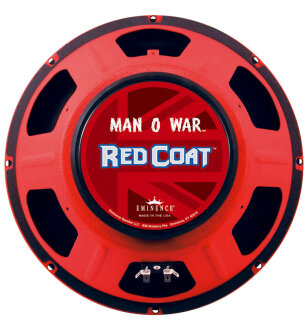

Eminence Man-O-War Guitar Speaker, 120 W, 12 Inch
The Eminence Man-O-War provides a proven and revered sound, very loud and responsive/articulate in every register. Look out for its chunky and solid sound with a little top end sparkle.
The fastest way to the lowest price, guaranteed!
Found a lower price? We'll beat it, fast.
Call 866-SHIP-SDM (866-744-7736) with service code QTG-JZMX
More Resources
Manuals and Documents:
Specifications Sheet
Eminence Warranty:
If you have additional warranty questions,
please call the manufacturer at 502-845-5622
FIND SIMILAR PRODUCTS
Pay only half today and get playing faster.
Pay the remainder in 60 days -
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
This item cannot be returned once opened due to the possibility that it has been used.
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
Recommended Accessories for Eminence Man-O-War
from $449.95
Eminence Man-O-War Guitar Speaker (120 Watts, 12") Product Description
Same Day Music is an
authorized Eminence dealer
The Eminence Man-O-War Red Coat guitar amplifier speaker is the perfect match for open or closed back 1x12, 2x12 or 4x12 combos or cabinets. The Voice Coil measures 2 inches in diameter with a magnet weight of 38 oz. Rated at 120 watts, the Man-O-War provides a moderate tone with a chunky shape while the mid and high-end response is much more aggressive. This Loud Eminence replacement speaker offers articulate audio in every register with a sparkly top end perfect for rock, grunge and metal guitar tones.authorized Eminence dealer
Features
- 12-inch, 120 Watt, Guitar Replacement Speaker
- For open or closed back speaker enclosures
- 2-inch diameter voice coil with 38 oz Magnet
- Moderate and chunky low end
- Aggressive and crisp mids and highs
- Perfect for Classic or College Rock, Grunge and Metal Tones
Same Day Music is an authorized dealer of Eminence products.
Eminence Man-O-War Technical Description
Specifications
Nominal Basket Diameter: 12-inch, 304.8mm
Nominal Impedance*: 8 ohms
Power Rating:
- Watts: 120W
- Music Program: N/A
Resonance: 91Hz
Usable Frequency Range: 70Hz-5.5kHz
Sensitivity***: 102
Magnet Weight: 38 oz.
Gap Height: 0.312", 7.92mm
Voice Coil Diameter: 1.75", 44.5mm
Thiele and Small Parameters
Resonant Frequency (fs): 91Hz
DC Resistance (Re): 6.2
Coil Inductance (Le): 0.43mH
Mechanical Q (Qms): 11.66
Electromagnetic Q (Qes): 0.72
Total Q (Qts): 0.68
Compliance Equivalent Volume (Vas): 38.0 liters / 1.3 cu.ft.
Mechanical Compliance of Suspension (Cms): 0.10mm/N
BL Product (BL): 12.3 T-M
Diaphram Mass inc. Airload (Mms): 31 grams
Efficiency Bandwidth Product (EBP): 127
Maximum Linear Excursion (Xmax): 0.8mm
Surface Area of Cone (Sd): 519.5 cm2
Maximum Mechanical Limit (Xlim): N/A
Mounting Information
Recommended Enclosure:
- Sealed: Acceptable
- Vented: Acceptable
Overall Diameter: 12.02", 305.3mm
Baffle Hole Diameter: 10.97", 278.6mm
Front Sealing Gasket: Fitted as standard
Rear Sealing Gasket: Fitted as standard
Mounting Holes Diameter: 0.25", 6.4mm
Mounting Holes B.C. D.: 11.63", 295.4mm
Depth: 5.2", 132mm
Net Weight: 8.1 lbs., 3.7 kg
Shipping Weight: 9.9 lbs., 4.5 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Same Day Music is an authorized dealer of Eminence products.
Nominal Basket Diameter: 12-inch, 304.8mm
Nominal Impedance*: 8 ohms
Power Rating:
- Watts: 120W
- Music Program: N/A
Resonance: 91Hz
Usable Frequency Range: 70Hz-5.5kHz
Sensitivity***: 102
Magnet Weight: 38 oz.
Gap Height: 0.312", 7.92mm
Voice Coil Diameter: 1.75", 44.5mm
Thiele and Small Parameters
Resonant Frequency (fs): 91Hz
DC Resistance (Re): 6.2
Coil Inductance (Le): 0.43mH
Mechanical Q (Qms): 11.66
Electromagnetic Q (Qes): 0.72
Total Q (Qts): 0.68
Compliance Equivalent Volume (Vas): 38.0 liters / 1.3 cu.ft.
Mechanical Compliance of Suspension (Cms): 0.10mm/N
BL Product (BL): 12.3 T-M
Diaphram Mass inc. Airload (Mms): 31 grams
Efficiency Bandwidth Product (EBP): 127
Maximum Linear Excursion (Xmax): 0.8mm
Surface Area of Cone (Sd): 519.5 cm2
Maximum Mechanical Limit (Xlim): N/A
Mounting Information
Recommended Enclosure:
- Sealed: Acceptable
- Vented: Acceptable
Overall Diameter: 12.02", 305.3mm
Baffle Hole Diameter: 10.97", 278.6mm
Front Sealing Gasket: Fitted as standard
Rear Sealing Gasket: Fitted as standard
Mounting Holes Diameter: 0.25", 6.4mm
Mounting Holes B.C. D.: 11.63", 295.4mm
Depth: 5.2", 132mm
Net Weight: 8.1 lbs., 3.7 kg
Shipping Weight: 9.9 lbs., 4.5 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Same Day Music is an authorized dealer of Eminence products.
- Shipping Weights and Dimensions
- 16 Ohms
- Shipping Weight: 10 lbs
- Shipping Dimensions: 16 x 15 x 7 in
- 8 Ohms
- Shipping Weight: 10 lbs
- Shipping Dimensions: 16 x 15 x 7 in
