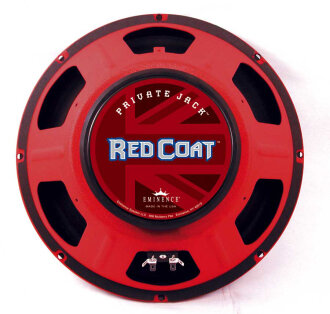

Eminence Private Jack Red Coat Speaker, 50 W, 12 Inch
The Eminence Private Jack is thick and smooth, with lots of mids and extended highs.
The fastest way to the lowest price, guaranteed!
Found a lower price? We'll beat it, fast.
Call 866-SHIP-SDM (866-744-7736) with service code QTN-674S
More Resources
Manuals and Documents:
Spec Sheet
Eminence Warranty:
If you have additional warranty questions,
please call the manufacturer at 502-845-5622
FIND SIMILAR PRODUCTS
Pay only half today and get playing faster.
Pay the remainder in 60 days -
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
Recommended Accessories for Eminence Private Jack Red Coat Guitar Speaker (50 Watts, 12 in.)
from $449.95
Eminence Private Jack Red Coat Guitar Speaker (50 Watts, 12") Product Description
Same Day Music is an
authorized Eminence dealer
The Eminence Private Jack is thick and smooth, with lots of mids and extended highs. A well balanced speaker with classic British flavor. The Private Jack is great for blues, indie and jazz. authorized Eminence dealer
Same Day Music is an authorized dealer of Eminence products.
Eminence Private Jack Red Coat Guitar Speaker (50 Watts, 12 in.) Technical Description
Eminence Private Jack 16 Specifications
Nominal Basket Diameter: 12 in., 304.8mm
Nominal Impedance*: 16 ohms
Power Rating Watts: 50W Music Program
Resonance: 96Hz
Usable Frequency Range: 70Hz-5kHz
Sensitivity***: 101
Magnet Weight: 38 oz
Gap Height: 0.312 in., 7.92mm
Voice Coil Diameter: 1.75 in., 44.5mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs): 96Hz
DC Resistance (Re): 7.01
Coil Inductance (Le): 0.49mH
Mechanical Q (Qms): 18.19
Electromagnetic Q (Qes): 0.72
Total Q (Qts): 0.69
Compliance Equivalent Volume (Vas): 33.7 liters / 1.2 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 64cc
Mechanical Compliance of Suspension (Cms): 0.09mm/N
BL Product (BL): 14.6 T-M
Diaphram Mass inc. Airload (Mms): 27 grams
Efficiency Bandwidth Product (EBP): 91
Maximum Linear Excursion (Xmax): 1.2mm
Surface Area of Cone (Sd): 519.5 cm2
MOUNTING INFORMATION
Recommended Enclosure
Sealed: Acceptable
Vented: Acceptable
Overall Diameter: 12.02 in., 305.3mm
Baffle Hole Diameter: 10.97 in., 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 in., 6.4mm
Mounting Holes B.C. D.: 11.63 in. , 295.4mm
Depth: 5.1 in., 130mm
Net Weight: 8 lbs., 3.6 kg
Shipping Weight: 9.8 lbs., 4.5 kg
MATERIALS OF CONSTRUCTION
Coil Construction: Copper voice coil
Coil Former: Paper former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Important Note
Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
Same Day Music is an authorized dealer of Eminence products.
Nominal Basket Diameter: 12 in., 304.8mm
Nominal Impedance*: 16 ohms
Power Rating Watts: 50W Music Program
Resonance: 96Hz
Usable Frequency Range: 70Hz-5kHz
Sensitivity***: 101
Magnet Weight: 38 oz
Gap Height: 0.312 in., 7.92mm
Voice Coil Diameter: 1.75 in., 44.5mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs): 96Hz
DC Resistance (Re): 7.01
Coil Inductance (Le): 0.49mH
Mechanical Q (Qms): 18.19
Electromagnetic Q (Qes): 0.72
Total Q (Qts): 0.69
Compliance Equivalent Volume (Vas): 33.7 liters / 1.2 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 64cc
Mechanical Compliance of Suspension (Cms): 0.09mm/N
BL Product (BL): 14.6 T-M
Diaphram Mass inc. Airload (Mms): 27 grams
Efficiency Bandwidth Product (EBP): 91
Maximum Linear Excursion (Xmax): 1.2mm
Surface Area of Cone (Sd): 519.5 cm2
MOUNTING INFORMATION
Recommended Enclosure
Sealed: Acceptable
Vented: Acceptable
Overall Diameter: 12.02 in., 305.3mm
Baffle Hole Diameter: 10.97 in., 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 in., 6.4mm
Mounting Holes B.C. D.: 11.63 in. , 295.4mm
Depth: 5.1 in., 130mm
Net Weight: 8 lbs., 3.6 kg
Shipping Weight: 9.8 lbs., 4.5 kg
MATERIALS OF CONSTRUCTION
Coil Construction: Copper voice coil
Coil Former: Paper former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Important Note
Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
Same Day Music is an authorized dealer of Eminence products.
- Shipping Weights and Dimensions
- Shipping Weight: 10 lbs
- Shipping Dimensions: 15 x 14 x 7 in
