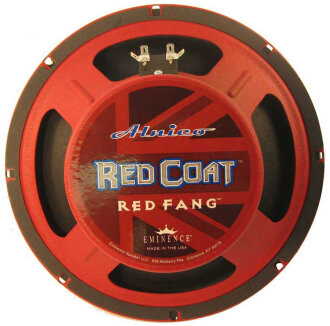

Eminence Red Fang Vintage Guitar Speaker, 50 W, 10 Inch
Vintage British sound with warm undertones and high-end sparkle.
The fastest way to the lowest price, guaranteed!
Found a lower price? We'll beat it, fast.
Call 866-SHIP-SDM (866-744-7736) with service code QR2-0J7D
More Resources
Manuals and Documents:
Spec Sheet
Eminence Warranty:
If you have additional warranty questions,
please call the manufacturer at 502-845-5622
FIND SIMILAR PRODUCTS
Pay only half today and get playing faster.
Pay the remainder in 60 days -
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
This item cannot be returned once opened due to the possibility that it has been used.
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
Recommended Accessories for Eminence Red Fang Vintage Guitar Speaker (50 Watts, 10 in.)
from $449.95
Eminence Red Fang Vintage Guitar Speaker (50 Watts, 10") Product Description
Same Day Music is an
authorized Eminence dealer
Vintage British sound with warm undertones and high-end sparkle. Eminence is proud to present the Patriot and Redcoat series of guitar speakers. Incorporating both British and American cone technology into speakers that they manufacture in the USA gives them the ability to provide you with virtually any tone you desire. Be it British or American, clean or dirty, big bass or screaming highs, they have a speaker that will allow you to 'Pick Your Sound'. authorized Eminence dealer
Same Day Music is an authorized dealer of Eminence products.
Eminence Red Fang Vintage Guitar Speaker (50 Watts, 10 in.) Technical Description
Specification
Nominal Basket Diameter: 10 in., 254 mm
Nominal Impedance*: 8 ohms
Power Rating - Watts: 50W
Resonance: 111Hz
Usable Frequency Range: 70Hz-4.5kHz
Sensitivity***: 102
Magnet Weight: 35 oz.
Gap Height: 0.310 in., 7.92 mm
Voice Coil Diameter: 1.8 in., 44.5 mm
Thiele & Small Parameters
Resonant Frequency (fs): 111Hz
DC Resistance (Re): 5.8
Coil Inductance (Le): 0.55mH
Mechanical Q (Qms): 12.64
Electromagnetic Q (Qes): 0.50
Total Q (Qts): 0.48
Compliance Equivalent Volume (Vas): 21.3 liters/.75 cu.ft.
Peak Diaphragm Displacement Volume (Vd): 17cc
Mechanical Compliance of Suspension (Cms): 0.11mm/N
BL Product (BL): 12.1 T-M
Diaphram Mass inc. Airload (Mms): 18 grams
Efficiency Bandwidth Product (EBP): 223
Maximum Linear Excursion (Xmax): 0.47mm
Surface Area of Cone (Sd): 366.1 cm2
Maximum Mechanical Limit (Xlim)
Mounting Information
Recommended Enclosure:
- Sealed: Acceptable
- Vented: Acceptable
Overall Diameter: 10.11 in., 256.8 mm
Baffle Hole Diameter: 9.13 in., 231.9 mm
Front Sealing Gasket: Fitted as standard
Rear Sealing Gasket: Fitted as standard
Mounting Holes Diameter: 0.23 in., 5.8 mm
Mounting Holes B.C. D.: 9.60 in., 243.8 mm
Depth: 5.2 in., 132 mm
Net Weight: 7.7 lbs., 3.5 kg
Shipping Weight: 8.5 lbs., 3.9 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Nomex former
Magnet Composition: Alnico magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Same Day Music is an authorized dealer of Eminence products.
Nominal Basket Diameter: 10 in., 254 mm
Nominal Impedance*: 8 ohms
Power Rating - Watts: 50W
Resonance: 111Hz
Usable Frequency Range: 70Hz-4.5kHz
Sensitivity***: 102
Magnet Weight: 35 oz.
Gap Height: 0.310 in., 7.92 mm
Voice Coil Diameter: 1.8 in., 44.5 mm
Thiele & Small Parameters
Resonant Frequency (fs): 111Hz
DC Resistance (Re): 5.8
Coil Inductance (Le): 0.55mH
Mechanical Q (Qms): 12.64
Electromagnetic Q (Qes): 0.50
Total Q (Qts): 0.48
Compliance Equivalent Volume (Vas): 21.3 liters/.75 cu.ft.
Peak Diaphragm Displacement Volume (Vd): 17cc
Mechanical Compliance of Suspension (Cms): 0.11mm/N
BL Product (BL): 12.1 T-M
Diaphram Mass inc. Airload (Mms): 18 grams
Efficiency Bandwidth Product (EBP): 223
Maximum Linear Excursion (Xmax): 0.47mm
Surface Area of Cone (Sd): 366.1 cm2
Maximum Mechanical Limit (Xlim)
Mounting Information
Recommended Enclosure:
- Sealed: Acceptable
- Vented: Acceptable
Overall Diameter: 10.11 in., 256.8 mm
Baffle Hole Diameter: 9.13 in., 231.9 mm
Front Sealing Gasket: Fitted as standard
Rear Sealing Gasket: Fitted as standard
Mounting Holes Diameter: 0.23 in., 5.8 mm
Mounting Holes B.C. D.: 9.60 in., 243.8 mm
Depth: 5.2 in., 132 mm
Net Weight: 7.7 lbs., 3.5 kg
Shipping Weight: 8.5 lbs., 3.9 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Nomex former
Magnet Composition: Alnico magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Same Day Music is an authorized dealer of Eminence products.
- Shipping Weights and Dimensions
- Shipping Weight: 10 lbs
- Shipping Dimensions: 16 x 14 x 7 in
