Recommended Accessories for Eminence Swamp Thang Guitar Speaker (150 Watts, 12 in.)
from $449.95

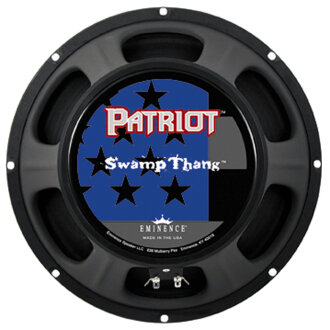

Eminence Swamp Thang Guitar Speaker (150 Watts, 12") Product Description
Same Day Music is an
authorized Eminence dealer
The Eminence Swamp Thang is perfect for that time where you gotta run through a jungle. Thick dirty bite or searing smooth tone are both things this speaker excels at. authorized Eminence dealer
Same Day Music is an authorized dealer of Eminence products.
Eminence Swamp Thang Guitar Speaker (150 Watts, 12 in.) Technical Description
Specifications
Nominal Basket Diameter: 12 inch, 304.8mm
Nominal Impedance*: 8 ohms
Power Rating - Music: Watts 150W, Program: n/a
Resonance: 97Hz
Usable Frequency Range: 70Hz-5kHz
Sensitivity***: 102
Magnet Weight: 59 oz.
Gap Height: 0.312 inch, 7.92mm
Voice Coil Diameter: 2 inch, 50.8mm
Thiele & Small Parameters
Resonant Frequency (fs): 97Hz
DC Resistance (Re): 6.92
Coil Inductance (Le): 0.42mH
Mechanical Q (Qms): 14.43
Electromagnetic Q (Qes): 0.55
Total Q (Qts): 0.53
Compliance Equivalent Volume (Vas): 41.3 liters / 1.5 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 43cc
Mechanical Compliance of Suspension (Cms): 0.10mm/N
BL Product (BL): 14.2 T-M
Diaphram Mass inc. Airload (Mms): 26 grams
Efficiency Bandwidth Product (EBP): 177
Maximum Linear Excursion (Xmax): 0.8mm
Surface Area of Cone (Sd): 532.4 cm2
Maximum Mechanical Limit (Xlim):
Mounting Information
Recommended Enclosure: Sealed: Acceptable, Vented: Acceptable
Overall Diameter: 12.01 inch, 305.1mm
Baffle Hole Diameter: 10.95 inch, 278.1mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 inch, 6.4mm
Mounting Holes B.C. D.: 11.63 inches, 295.4mm
Depth: 5.2 inches, 132mm
Net Weight: 11.1 lbs., 5 kg
Shipping Weight: 12.8 lbs., 5.8 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Footnotes
** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment.
*** The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR CX2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
Same Day Music is an authorized dealer of Eminence products.
Nominal Basket Diameter: 12 inch, 304.8mm
Nominal Impedance*: 8 ohms
Power Rating - Music: Watts 150W, Program: n/a
Resonance: 97Hz
Usable Frequency Range: 70Hz-5kHz
Sensitivity***: 102
Magnet Weight: 59 oz.
Gap Height: 0.312 inch, 7.92mm
Voice Coil Diameter: 2 inch, 50.8mm
Thiele & Small Parameters
Resonant Frequency (fs): 97Hz
DC Resistance (Re): 6.92
Coil Inductance (Le): 0.42mH
Mechanical Q (Qms): 14.43
Electromagnetic Q (Qes): 0.55
Total Q (Qts): 0.53
Compliance Equivalent Volume (Vas): 41.3 liters / 1.5 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 43cc
Mechanical Compliance of Suspension (Cms): 0.10mm/N
BL Product (BL): 14.2 T-M
Diaphram Mass inc. Airload (Mms): 26 grams
Efficiency Bandwidth Product (EBP): 177
Maximum Linear Excursion (Xmax): 0.8mm
Surface Area of Cone (Sd): 532.4 cm2
Maximum Mechanical Limit (Xlim):
Mounting Information
Recommended Enclosure: Sealed: Acceptable, Vented: Acceptable
Overall Diameter: 12.01 inch, 305.1mm
Baffle Hole Diameter: 10.95 inch, 278.1mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 inch, 6.4mm
Mounting Holes B.C. D.: 11.63 inches, 295.4mm
Depth: 5.2 inches, 132mm
Net Weight: 11.1 lbs., 5 kg
Shipping Weight: 12.8 lbs., 5.8 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Footnotes
** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment.
*** The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25" supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR CX2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
Same Day Music is an authorized dealer of Eminence products.
- Shipping Weights and Dimensions
- Shipping Weight: 13 lbs
- Shipping Dimensions: 16 x 15 x 6 in
