    Eminence Tonker Vintage Guitar Speaker, 150 W, 12 Inch

    Incorporates British cone technology. Made in the USA.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 158R-0XPN

    Web Item #EMNTONKER

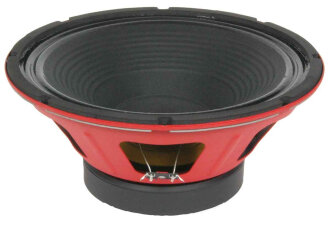

    Eminence Tonker Vintage Guitar Speaker
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Spec Sheet
    Eminence Warranty: If you have additional warranty questions, please call the manufacturer at 502-845-5622
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Wed
    •
    • 2 Day: $10
    • Overnight: $40
    SpeedPlay: on orders of
    $249
    $99.99 Seen a lower price?
    In Stock | Will Ship Wed
    •
    • 2 Day: $10
    • Overnight: $40
    SpeedPlay: on orders of
    $249
    $99.99 Seen a lower price?
    This product ships to: Can ship to United States

    This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Eminence Tonker Vintage Guitar Speaker (150 Watts, 12in.) Product Description

    Direct from the Eminence Red Coat series arrives the Tonker. The Tonker is a hard hitting 12 in. speaker that provides that British flavor players crave for but the harmonic balance to properly tackle any genre. This speaker excels in English, Southern and Country rock genres for that reason. If you own a Telecaster your tone will thank you for using the Tonker.

    When Eminence was asked to create a speaker with a very fat clean sound in the mid-range but still a very smooth top end they created the Tonker. Available in 16 and 8 ohms versions.

    Same Day Music is an authorized dealer of Eminence products.

    Eminence Tonker Vintage Guitar Speaker (150 Watts, 12in.) Technical Description

    Specification
    Nominal Basket Diameter: 12 in, 304.8mm
    Nominal Impedance: 8 ohms
    Power Rating: 150W
    Music Program Resonance: 89Hz
    Usable Frequency Range: 70Hz-5.5kHz
    Sensitivity: 102
    Magnet Weight: 59 oz.
    Gap Height: 0.312 in., 7.92mm
    Voice Coil Diameter: 2 in., 50.8mm

    Thiele and Small Parameters
    Resonant frequency (fs): 89Hz
    DC resistance (Re): 7.36
    Coil Inductance (Le): 0.47mH
    Mechanical Q (Qms): 10.02
    Electromagnetic Q (Qes): 0.49
    Total Q (Qts): 0.47
    Compliance equivalent volume (Vas): 34.1 liters / 1.2 cu. ft.
    Peak diaphragm displacement volume (Vd): 42cc
    Mechanical compliance of suspension (Cms): 0.09mm/N
    BL product (BL): 17.4 T-M
    Diaphram mass inc. airload (Mms): 36 g
    Efficiency bandwidth product (EBP): 181
    Maximum linear excursion (Xmax): 0.8mm
    Surface area of cone (Sd): 519.5 cm2
    Maximum mechanical limit (Xlim)

    Mounting Information
    Recommended Enclosure
    Sealed: Acceptable
    Vented: Acceptable
    Overall Diameter: 12.02 in., 305.3mm
    Baffle hole diameter: 10.97 in., 278.6mm
    Front sealing gasket: fitted as standard
    Rear sealing gasket: fitted as standard
    Mounting holes diameter: 0.25 in., 6.4mm
    Mounting holes B.C.D.: 11.63 in., 295.4mm
    Depth: 5.2 in., 132mm
    Net Weight: 11.1 lbs., 5 kg
    Shipping Weight: 13.2 lbs., 6 kg

    Materials of Construction
    Coil construction: copper voice coil
    Coil former: polyimide former
    Magnet composition: ferrite magnet
    Core details: non-vented core
    Basket materials: pressed steel basket
    Cone composition: paper Cone
    Cone edge composition: paper cone edge
    Dustcap composition: zurette dust cap

    Important Note

    Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

    (Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

    Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.

    Same Day Music is an authorized dealer of Eminence products.
    Shipping Weights and Dimensions
    8 Ohms
    Shipping Weight: 13 lbs
    Shipping Dimensions: 15 x 14 x 6 in
    16 Ohm
    Shipping Weight: 13 lbs
    Shipping Dimensions: 15 x 14 x 6 in
