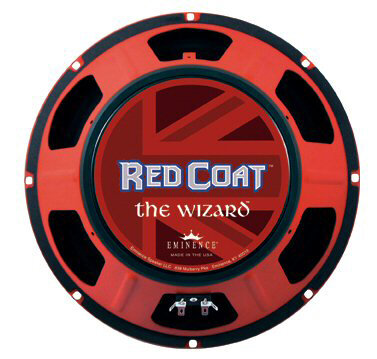

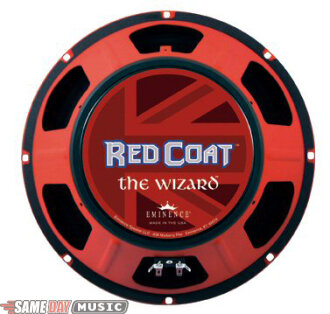

Eminence Wizard 8 Guitar Speaker (75 Watts, 12 in.)
Made in the USA.
Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Like magic, a healthy brewing of the key features of the Private Jack and the Governor Eminence conjures up the Wizard 8 speaker. The Eminence Wizard has great coloration: very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom.
If you've ever wanted to get that great classic rock sound from the 60s and 70s, here's the perfect spell!
If you've ever wanted to get that great classic rock sound from the 60s and 70s, here's the perfect spell!
TECHNICAL DESCRIPTION
Nominal Basket Diameter: 12 inches, 304.8mm
Nominal Impedance*: 8 ohms
Watts: 75W
Resonance: 89Hz
Usable Frequency Range: 70Hz-5.5kHz
Sensitivity***: 103
Magnet Weight: 56 ounces
Gap Height: 0.312 inches, 7.92mm
Voice Coil Diameter: 1.75 inches, 44.5mm
Thiele & Small Parameters DC Resistance (Re): 6.13
Coil Inductance (Le): 0.38mH
Mechanical Q (Qms): 11.48
Electromagnetic Q (Qes): 0.49
Total Q (Qts): 0.47
Compliance Equivalent Volume (Vas): 41.5 liters / 1.5 cubic feet
Peak Diaphragm Displacement Volume (Vd): 42cc
Mechanical Compliance of Suspension (Cms): 0.11mm/N
BL Product (BL): 14.4 T-M
Diaphram Mass inc. Airload (Mms): 30 grams
Efficiency Bandwidth Product (EBP): 181
Maximum Linear Excursion (Xmax): 0.8mm
Surface Area of Cone (Sd): 519.5 cm2
Mounting Information Recommended Enclosure: Sealed or Vented Acceptable
Overall Diameter: 12.02 inches, 305.3mm
Baffle Hole Diameter: 10.97 inches, 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 inches, 6.4mm
Mounting Holes B.C. D.: 11.63 inches, 295.4mm
Depth: 5.2 inches, 132mm
Net Weight: 10.8 pounds, 4.9 kg
Shipping Weight: 12.5 pounds, 5.7 kg
Materials of Construction Coil Construction: Copper voice coil
Coil Former: Nomex former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Nominal Impedance*: 8 ohms
Watts: 75W
Resonance: 89Hz
Usable Frequency Range: 70Hz-5.5kHz
Sensitivity***: 103
Magnet Weight: 56 ounces
Gap Height: 0.312 inches, 7.92mm
Voice Coil Diameter: 1.75 inches, 44.5mm
Thiele & Small Parameters DC Resistance (Re): 6.13
Coil Inductance (Le): 0.38mH
Mechanical Q (Qms): 11.48
Electromagnetic Q (Qes): 0.49
Total Q (Qts): 0.47
Compliance Equivalent Volume (Vas): 41.5 liters / 1.5 cubic feet
Peak Diaphragm Displacement Volume (Vd): 42cc
Mechanical Compliance of Suspension (Cms): 0.11mm/N
BL Product (BL): 14.4 T-M
Diaphram Mass inc. Airload (Mms): 30 grams
Efficiency Bandwidth Product (EBP): 181
Maximum Linear Excursion (Xmax): 0.8mm
Surface Area of Cone (Sd): 519.5 cm2
Mounting Information Recommended Enclosure: Sealed or Vented Acceptable
Overall Diameter: 12.02 inches, 305.3mm
Baffle Hole Diameter: 10.97 inches, 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 inches, 6.4mm
Mounting Holes B.C. D.: 11.63 inches, 295.4mm
Depth: 5.2 inches, 132mm
Net Weight: 10.8 pounds, 4.9 kg
Shipping Weight: 12.5 pounds, 5.7 kg
Materials of Construction Coil Construction: Copper voice coil
Coil Former: Nomex former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
