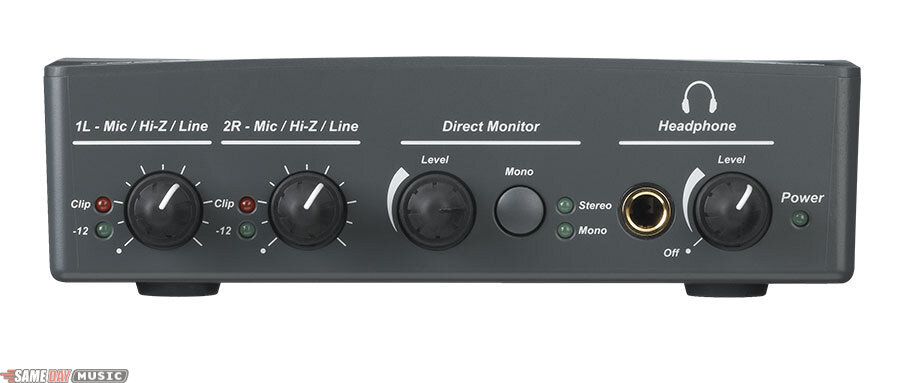

Emu Tracker Pre USB Audio Interface

E-MU's Tracker Pre USB 2.0 Audio Interface/Mobile Preamp is the ultimate portable USB audio interface for Mac and PC, offering pristine 24-bit/192kHz recording and playback, direct monitoring, and a host of professional features in a compact, USB bus-powered package. The Tracker Pre USB provides users with two Class-A ultra-low noise Mic/Line/Hi-Z preamplifiers that can be run independently or in stereo to record guitars, keyboards or microphones with optimal audio performance. CurrentMorph, a patent-pending circuit design, allows Tracker Pre to offer +48V phantom power and use premium high-power converters while using only USB bus power.

Features
Pristine 24-bit/192kHz A/D and D/A converters (A/D and D/A: 112dB measured SNR performance) deliver unmatched USB audio fidelity for pristine audio quality

Preamplified analog signals are available before the A/D converters, allowing the Tracker Pre to be used as a standalone high-quality stereo microphone preamp (using optional power supply)

Hardware zero-latency direct monitoring (mono or stereo) with continuously variable level control

Plug-and-play operation with hands-on control of all major functions like direct monitoring level, headphone level, preamplifier gain and more

Independent ground lift switches for optimal audio fidelity/flexibility

USB bus powered (can also be powered using optional 5V power supply)

Cross-platform support (Mac OS X and Windows XP32/XP64/Vista32/Vista64) and compatibility with most popular audio/sequencer applications (ASIO2, WDM, MME, Apple Core Audio and Core MIDI supported)

Same Day Music is an authorized dealer of E-MU products.

In/Out Configuration
Two XTC(TM) Class-A, ultra-low noise, Mic/Line/Hi-Z preamps. Balanced XLR, 1/4 in. TRS and 1/8 in. Inputs (-127dB EIN) with 60dB of gain

1/8 in. Stereo Condenser Microphone Input with 5V Power

Two 1/4 in. Balanced/Unbalanced Outputs (112dB SNR)

Two 1/4 in. Unbalanced Send/Return Inserts prior to A/D converters

Stereo headphone output (112dB SNR)

General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz from internal crystal (no sample rate conversion)*

Bit Depth: 24-bit I/O, 32-bit processing

USB 2.0 Hi-Speed:
- Full 24-bit resolution at all sample rates
- Stereo in, stereo out at all sample rates

Zero-latency direct hardware monitoring (disabled at 176.4-192kHz)

Windows drivers: ASIO2 and WDM

Macintosh driver: Apple CoreAudio

Anti-Pop speaker protection minimizes noise during power on/off

Ultra-low jitter clock subsystem: < 100ps RMS

USB Bus or AC powered via optional Universal Power Supply

Combo Preamplifiers (2)
Type: E-MU CurrentMorph combo mic preamp and Hi-Z/line input

A/D converter: AK5385

Max Level: +6.4dBV bal/unbal (+6.9 dBu)
- Hi-Z/line balanced input: +6.9dBV bal/unbal (+9.1dBu)
- Microphone Preamplifier: +6.4dBV bal/unbal (+8.6dBu)

Frequency Response (min gain, 20Hz-20kHz): +0.0/-0.03dB

Dynamic Range (A-weighted, 1kHz, min gain): 112dB

Signal-to-Noise Ratio (A-weighted, min gain): 112dB

THD+N (1kHz at - 1dBFS, min gain): -102dB (.0007%)

EIN (20Hz-20kHz, 150ohm, unweighted): -127dBu

Input Impedance:
- Hi-Z/line balanced input: 1 Mohm
- Microphone Preamplifi er: 1.5 Kohms

Analog Line Outputs (2)
Type: balanced, AC-coupled, 2-pole low-pass differential filter

D/A converter: CS4392

Max Level: 6.6 dBV (unbalanced)

Frequency Response (20Hz - 20kHz): 0.00/-0.08dB

Dynamic Range (1kHz, A-weighted): 112dB

Signal-to-Noise Ratio (A-weighted): 112dB

THD+N (1kHz at -1dBFS): -99dB (.0011%)

Stereo Crosstalk (1kHz at -1dBFS): <-111dB

Headphone Amplifier
Type: Class-A power amplifier

D/A converter: CS4392 (shared with Line Out)

Gain Range: 60dB

Maximum Output Power: 22mW

Output Impedance: 22ohms

Frequency Response (20Hz-20kHz): +0.02/-0.07dB

Dynamic Range (A-weighted): 112dB

Signal-to-Noise Ratio (A-weighted): 112dB

THD+N (1kHz, max gain): 300ohm load: -99dB (.0011%)

Stereo Crosstalk (1kHz at -1dBFS, 300 ohm load): <-90dB

Synchronization
Internal crystal sync at 44.1, 48, 88.2, 96, 176.4, 192kHz*
* Macintosh operation up to 96kHz only at this time

Retail Box Contents
E-MU Tracker Pre USB 2.0 Audio Interface

USB cable (2 meters)

Installation Guide

E-MU Software/Manual Installation CD-ROM (OS X /Windows):
- Windows XP, Windows x64, Windows Vista, Windows Vista x64 Drivers
- Mac OS X 10.4, Mac OS X 10.5 Drivers
- Owner's Manual and Tutorials
- Adobe Acrobat Reader (Windows only)

E-MU Production Tools Software Bundle DVD (OS X /Windows):
- Windows Applications
- E-MU Proteus VX (with over 1000 sounds)
- Cakewalk Sonar 6 LE
- Steinberg Cubase LE4
- Celemony Melodyne essential
- IK Multimedia AmpliTube Duo
- SFX Machine LT

OS X Applications:
- Steinberg Cubase LE4
- BIAS Peak Express 5
- Celemony Melodyne essential
- SFX Machine LT

Ableton Live Lite 6 E-MU Edition CD-ROM (OS X, Windows):
- Ableton Live Lite 6 E-MU Edition

Waldorf Edition LE CD-ROM (OS X, Windows):
- Waldorf Edition LE

Minimum System Requirements

Windows:
Intel(R) or AMD(R) processor - 1.2 GHz or faster

Intel, AMD, or 100% compatible motherboard & chipset

Microsoft(R) Windows(R) XP (SP 2 or greater), Windows XP x64, Windows Vista, or Windows Vista x64

1 available (Hi-Speed) USB 2.0 port *

512 MB System RAM

900 MB of free hard disk space for full installation

CD-ROM/CD-RW drive required for software installation

DVD-ROM drive required for bundled software installation

XVGA Video (1024 X 768)

OS X:
Apple(R) Macintosh(R) G4 800 MHz G4 compatible or Intel-based processor

Apple Macintosh OS X (10.4.3 or greater)

1 Available (Hi-Speed) USB 2.0 port*

512 MB System RAM

500 MB of free hard disk space for full installation

CD-ROM/CD-RW drive required for software installation

DVD-ROM drive required for bundled software installation

XVGA Video (1024 X 768)

* When connecting the Tracker Pre to a USB 1.1 port on a Windows PC, performance is limited to 16-bit and 44.1/48 kHz recording and playback.

* USB 1.1 is not supported on the Macintosh
