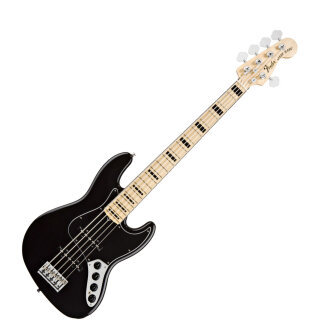

    Fender American Deluxe Jazz V 5-String Electric Bass Guitar, Maple with Case

    Featuring an HMV bridge, N3 noiseless Jazz pickups, and a compound radius fretboard, playing the Deluxe Jazz V, you'll find that your sweet funky lowdown has never been sweeter or funkier.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1ZY-7PRZ

    More Resources

    Manuals and Documents: User Manual
    Fender Warranty: If you have additional warranty questions, please call the manufacturer at 800-488-1818
    In Stock | Will Ship Tue
    • 2 Day: $18
    • Overnight: $58
    Order Now | Limited Qty
    • 2 Day: $32
    • Overnight: $72
    In Stock | Will Ship Tue
    • 2 Day: $20
    • Overnight: $64
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Fender American Deluxe Jazz V 5-String Electric Bass (Maple, with Case) Product Description

    Fender's American Deluxe Jazz Bass V delivers the modern features that bassists demand in a sleekly five-string design. A reengineered preamp circuit delivers deeply exhilarating active and passive tone, and powerful-yet-quiet N3 noiseless pickups present more clean headroom and EQ range than ever, effortlessly handling the low B string with impeccable tone and seismic power. Other features include a compound radius fretboard and asymmetrical neck profile for fast action and silky-smooth playability all the way up the neck, active/passive switch and passive tone control for even more tonal options, and classic Jazz Bass block fretboard inlays and binding.


    - N3 Noiseless Pickups
    - Improved electronics resulting in increased headroom, tighter low-end response
    - Active/passive toggle switch
    - Passive tone control for passive mode
    - Stealth A string retainer
    - HMV bridge
    - Genuine bone nut,
    - Tinted neck
    - Posiflex Graphite Neck Support Rods
    - 5-Bolt Neck Plate
    - Contoured Heel for Easier Access to Upper Frets
    - Rolled Fingerboard Edges
    - Highly Detailed Nut and Fret Work
    - Flat head screws on battery compartment (for easy changes with a coin or pick)
    - Black pearl (or white pearloid) block inlays
    - Neck binding

    Same Day Music is an authorized dealer of Fender products.

    Fender American Deluxe Jazz V 5-String Bass (Maple) Technical Description

    Country of origin: US

    Height: 6.0

    Length: 52.0

    Volume: 3.16

    Case/Gig Bag: Molded Rectangular SKB(R) Case

    Strings: Super Bass 8250/5M, NPS, (.045, .065, .085, .110TW, .130TW Gauges)

    Control Knobs: Black Plastic Knobs

    Straplocks: Schaller Strap Lock System

    Body Shape: Jazz Bass

    Special Electronics: Active/Passive Mini Toggle Switch

    Bridge Pickup: N3 Noiseless Jazz Bass Bridge Pickup

    Controls: Master Volume, Pan Pot (pickup selector), Treble Boost/Cut, Midrange Boost/Cut, Bass Boost/Cut, Active/Passive Mini Toggle

    Neck Pickup: N3 Noiseless Jazz Bass Neck Pickup

    Pickup Configuration: S/S

    Pickup Switching: Pan Pot

    Special Electronics: Active Electronics

    Bridge: HMV, High Mass Vintage, (Strings-Thru-Body or Topload)

    Hardware: Chrome

    Strap Buttons: American Series Strap Buttons

    String Nut: Bone Nut

    Tuning Machines: Fender Lightweight Vintage Style Button Tuners

    Fretboard Radius: 9.5"-14" Compound Radius (241mm-355.6mm)

    Fretboard: Maple

    Fret Size: Medium Jumbo

    Neck Binding: Bound Fingerboard

    Neck Material: Maple Neck

    Neck Plate: Asymmetrical 5-Bolt Neck Plate

    Neck Shape: Asymmetrical "C" Shape

    Number of Frets: 21

    Nut Width: 1.625" (41.3 mm)

    Position Inlays: Black or White Pearloid Block Inlays

    Scale Length: 34" (863.6 mm)

    Truss Rods: Posiflex Graphite Neck Support Rods

    Truss Rod Nut: 3/16" Adjustable Hex Nut

    Saddle Height Adjustment Wrench: 1/16" Hex (Allen) Wrench

    Truss Rod Wrench: 3/16" "T-Style" Ball-End Hex (Allen) Wrench

    Same Day Music is an authorized dealer of Fender products.
    Shipping Weights and Dimensions
    Shipping Weight: 27 lbs
    Shipping Dimensions: 51 x 19 x 6 in
    Natural Ash
    Shipping Weight: 27 lbs
    Shipping Dimensions: 52 x 18 x 7 in
