Product Description

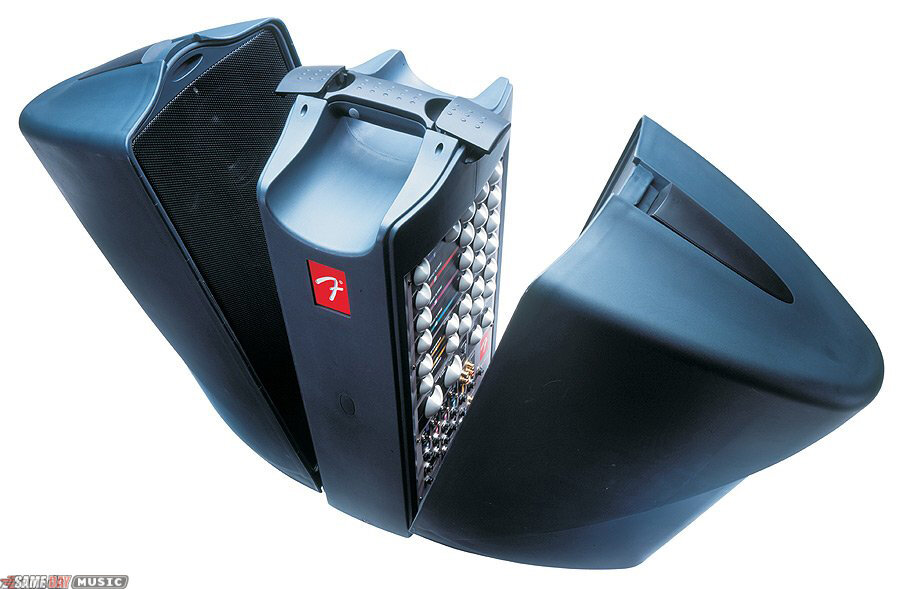

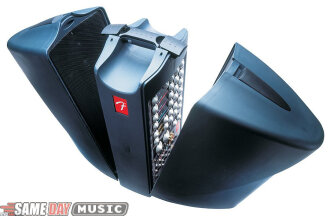

Fender is proud to introduce the next generation of portable sound systems: the Passport Deluxe 150 and 250. At the core of the Deluxe Series is a highly evolved loudspeaker design - the Deluxe Speaker Array (DSA). Fender co-developed the proprietary speaker component and enclosure designs with one of the most prominent and innovative loudspeaker technology companies in the world.

The sound of the Deluxe Series is remarkable. It sounds more like a home theatre than a PA system. The proprietary design delivers high fidelity audio with wide horizontal projection, remarkable clarity, and truly impressive imaging - characteristics not typically found in a traditional PA cabinet. The advancements in the sound performance of the deluxe speaker design are realized while maintaining the high gain before feedback characteristics that make Passport systems the choice of tens of thousands of users worldwide. If you are serious about the sound of your performance, you owe it to yourself to use one.

Features
6 input mixer: 4 mic/line, 2 mono/stereo

Operates on AC or DC power

250 watts (125 per channel) stereo, with digital reverb

Proprietary DSA speaker design featuring 4 custom speaker drivers per cabinet

Docking connector for passport wireless receiver

Innovative deluxe speaker array design for superior sound in any application

Extraordinary feedback rejection allows the speakers to be placed behind the user, eliminating the need for separate monitor speakers

35mm (1-3/8 in.) stand adapters are provided

Two P-51 professional cardioid low impedance dynamic microphones, two 18 ft. microphone cables, two 20 ft. speaker cables, and a detachable power cable are provided and can be stored in the mic/cable storage compartment with latching lid

V.I.P. (Vocal Input Priority) Music is automatically lowered when someone speaks into the microphone

Unique "One-Touch" controls

Sophisticated "EQ Contour" control

About the Passport Series
Fender's innovative Passport Sound System is the definition of a truly portable PA system. Designed with simplicity, flexibility, versatility, reliability, ease-of-use, and efficiency in mind, each Passport system is ideal for working musicians, acoustic groups, club and lounge performers, school and day-care teachers, coaches, auctioneers, religious organizations, aerobics and fitness instructors, corporate educational presenters - anyone or any application that requires a portable audio sound system that sets up easily and quickly (in under 5 minutes!). The truly remarkable aspect of the Passport Audio System design is that for all its high-tech technology, you don't have to be a sound engineer to get professional quality sound.

Fender has incorporated years of pro audio experience into the Passport System's unique design and powerful features. Proprietary elements like Vocal Input Priority circuitry that automatically lowers all other signals in the system when you speak into the microphone - (this is particularly useful when you want to make an announcement over music being broadcast). Other features include One Touch EQ, an extremely powerful tone control circuit that takes the guesswork out of getting great sound quickly. Plus, each custom cabinet contains specially designed, full-range speakers positioned at critical angles to maximize projection and clarity without feedback.

Each system features flexible input and output connections, tone control on each channel, system tone control, effects send and returns, digital reverb, recording outputs and inputs (for CD, tape, video, DVD, or computer connections), speaker and microphone cables, and Fender's P-51 microphones. Both systems are compatible with the new Passport Wireless systems for the ultimate in flexibility and portability. The Passport's durable power supply delivers consistent power - in stereo - whether you are using the system with an AC or DC source, and the entire system is packaged into a unique, weather-resistant, portable case utilizing a patented latching system. The Passport Audio Systems deliver professional quality sound for the "rest of us."

Technical Description

Dimensions (H x W x D): 24.2 x 33.7 x 11.8 in. (615 x 840 x 300mm)

Weight: 55 lbs. (24 kg)

Covering: Dark Grey Luggage Style Molded Case

Power Output: 250 Watts Stereo, (2 x 125 Watts)

Input Power: N/A

Introduced: 12/2001

Optional Accessories
ST-275 Speaker Stand Kit. Includes 2 collapsible/adjustable speaker stands packed in a ballistic nylon bag p/n 0699001000

12 Volt DC Adapter p/n 0699002000

DC-DC Converter p/n 0699002000

Microphone p/n 0699000000

P-250 Protective Padded Cover p/n 0699005000

Travel Pack p/n 0699004049 (Luggage Cart and Padded Cover)

Footswitch p/n 0994055000

Dual Speaker Mount p/n 0699007000

Wall Mount Kit p/n 0699006000

Passport Wireless Hand Held System p/n 069120100X

Passport Wireless Executive System p/n 069120500X

Catalog Description

Portable, compact PA with high-fidelity sound@6-input mixer with 4 mic/line inputs and 2 mono/stereo inputs@Array speaker design with 4 drivers per cabinet@Digital reverb@Includes 2 mics and all cables@250 watts stereo
