Product Description

Our upgraded American Deluxe Jazz Bass captures the spirit of innovation with their three-band active EQ and two, dual-coil ceramic noiseless J Bass pickups with nickel-plated pole pieces. Available with rosewood fingerboard.

Technical Description

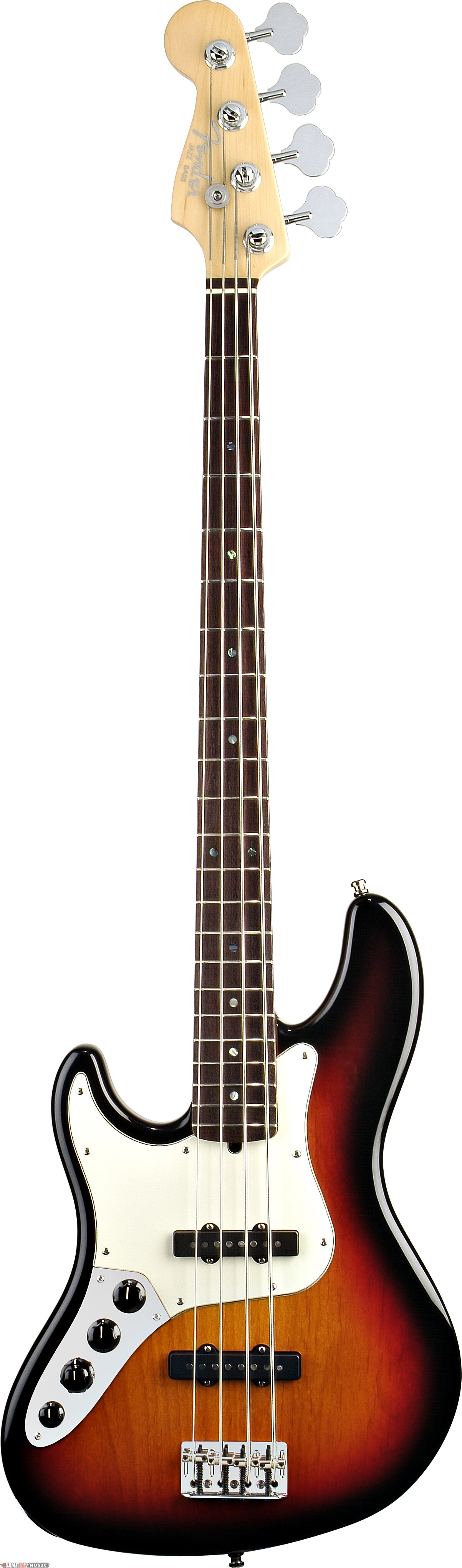

Model Name: American Deluxe Jazz Bass Left hand

Model Number: 019-4490-(Color no.)

Series: American Deluxe Series

Body: Select Alder

Neck: Maple, Modern 'C' Shape

Neck Finish: Satin Polyurethane

Fingerboard: Rosewood, (9.5 in. Radius/241 mm)

No. of Frets: 22 Medium Jumbo Frets

Pickups: 2 Samarium Cobalt Noiseless Jazz Bass Pickups

Controls:
Master Volume
Pan Pot
3-Band Active EQ

3-Band Active EQ:
Treble Boost/Cut: +/- 10 db @ 8kHz, a shift in the cut frequency, and about a 2dB slope per octave.
Mid Boost/Cut: +10dB, -15dB @ 500Hz, and a wide band slope.
Bass Boost/Cut: +/- 12 db @ 40 Hz, with a 4dB slope per octave.

Pickup Switching: Pan Pot

Bridge: Deluxe Chrome Plated Steel Bridge Plate (Strings-Thru-Body or Top Load), with Nickel Plated Brass Saddles

Machine Heads: Fender/Schaller Deluxe Lite-Bass Tuning Machines

Hardware: Chrome

Pickguard:
3-Ply Mint Green on (700)
1-Ply Beveled Gold Vinyl on (764)

Scale Length: 34 in. (864 mm)

Width at Nut: 1.50 in. (38mm)

Unique Features:
Posiflex Graphite Neck Support Rods
18 Volt Power Supply
5-Bolt Neck Plate
Contoured Heel for Easier Access to Upper Frets
Abalone Dot Position Inlays
Rolled Fingerboard Edges
Highly Detailed Nut and Fret Work

Strings: Super Bass 8250M NPS

Gauges: .045, .065, .085, .110TW (Taperwound E)

Accessories:
Standard Molded Case
Cable
Strap
Straplocks
Meguiar's Mist and Wipe Kit

Case: Standard Molded Case
