    Focusrite ISA One Analogue Classic Single-Channel Microphone Preamp

    It has risen, now the ISA110 comes back to put audiophiles on notice with the Focusrite ISA One featuring that legendary Forte Console preamp that can be heard on countless hits.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 161P-Q9L8

    Web Item #FOCISAONE

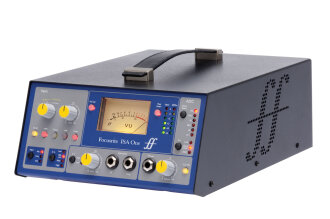

    Focusrite ISA One Microphone Preamp
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Manual
    Focusrite Warranty: If you have additional warranty questions, please call the manufacturer at 310-322-5500
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Mon
    •
    • 2 Day: $10
    • Overnight: $40
    SpeedPlay: 2 payments of $250.00
    $499.99 Seen a lower price?
    Order Now | Limited Qty
    •
    • 2 Day: $10
    • Overnight: $42
    $449.95
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Focusrite ISA One Analogue Microphone Preamp Product Description

    The 'ISA One' microphone pre-amplifier delivers Focusrite's prestigious ISA transformer-based pre-amp in a rugged and portable chassis, at a groundbreaking price.

    ISA One features the classic vintage microphone pre-amplifier topology from the original ISA110 module, including the Lundahl L1538 transformer and bespoke zobel network. (The original 110 pre amp formed the cornerstone of each channel of Focusrite's legendary Forte console.)

    The pre-amp is complemented by a line input (XLR and TRS Jack) and an independent D.I. channel, complete with dedicated gain control, active or passive impedance switch, a TRS Jack output for routing to an amp and an independent XLR output on the rear. This flexible independent D.I. makes the ISA One ideal both for engineers wishing to blend a D.I.'d guitar signal with a mic'd guitar cabinet, and for demanding performers who require a single classic solution for both guitar and vocals. A variable impedance circuit has been added, allowing the user to switch between four carefully selected input impedance settings. In addition to the original ISA110 impedance, three further impedance settings allow perfect matching, or creative mismatching of the pre amp with any microphone. ISA One also features an insert point, should the need arise to place extra processing between the pre amp or D.I. and the optional converter. Phantom power, phase reverse and a 75Hz, 18dB/octave high-pass filter are also available from the angled front fascia.

    Independent input metering for both channels is provided in the form of a moving coil VU meter with variable calibration to suit analogue and digital recording media, alongside two six-LED peak meters; inputs can be metered either pre- or post-insert. The meter calibrations utilise all the same reference points as Digidesign's Pro Tools HD system, allowing effortless line-up.

    ISA One's headphone output features a dedicated volume control, which delivers an external stereo cue mix, (a simple click track, or a stereo mix feed from an interface or a live console,) fed to the headphones via two TRS jack inputs on the rear of the unit.

    An optional state-of-the-art stereo A-D converter is also available (the same card as used with the ISA430 Mk II), embodying cutting-edge conversion technology seated within Focusrite's custom analogue circuitry. This optional card can be retrofitted at any time and provides two channels of 24 bit/192kHz A-D conversion with a dynamic range of 119dB.

    Same Day Music is an authorized dealer of Focusrite products.

    Focusrite ISA One Analogue Technical Description

    Mic Input Response
    - Gain range = 0dB to 60dB in 10dB steps + 20 dB of variable gain
    - Input Impedance, variable as follows (Switched Impedance setting Equivalent Input Impedance at 1kHz):
    - Low = 600 Ohms
    - ISA110 = 1400 Ohms
    - Med = 2400 Ohms
    - High = 6800 Ohms
    - EIN (equivalent input noise) = -126dB measured at 60dB of gain with 150 Ohm terminating impedance and 22Hz/22kHz band-pass filter
    - Noise at main output with gain at unity (0dB) = -97dBu measured with a 22Hz/22kHz band-pass filter
    - Signal to noise ratio relative to max headroom (9dBu) = 106dB
    - THD at medium gain (30dB) = 0.0009% measured with a 1kHz -20dBu input signal and with a 22Hz/22kHz band-pass filter
    - Frequency response at minimum gain (0dB) = -0.5dB down at 10Hz and -3dB down at 125kHz
    - Frequency response at maximum gain (60dB) = -3dB down at 16Hz and -3dB down 118kHz
    - CMRR=98dB (Channel 1, 1kHz, maximum gain with +24 dBu input)
    - Crosstalk Channel to Channel: with 10dB@1kHz input to chA, chB output =104dBrA. With 10dB@10kHz input to chA, chB output = 84dBrA

    Line Input Response
    - Gain range = -20dB to +10dB in 10dB steps + 20 dB of variable gain
    - Input Impedance = 10kOhm from 10Hz to 200kHz
    - Noise at main output with gain at unity (0dB) = -96dBu measured with a 22Hz/22kHz band-pass filter
    - Signal to noise ratio relative to max headroom (24dBu)=120dB
    - Signal to noise ratio relative to 0dBFS (+22dBu) = 118dB\
    - THD at unity gain (0dB) = 0.001% measured with a 0dBu input signal and with a 22Hz/22kHz band-pass filter
    - Frequency Response at unity gain (0dB) = -0.3dB down at 10Hz and -3dB down at 200kHz

    Instrument Input Response
    - Gain range = 10dB to 40dB continuously variable
    - Input Impedance:
    - High = greater than1MOhm
    - Low =greater than 300kOhm
    - Noise at minimum gain (+10dB) = -92dBu measured with a 22Hz/22kHz band-pass filter
    - Noise at maximum gain (+40dB) = -62dBu measured with a 22Hz/22kHz band-pass filter
    - THD at minimum gain (+10dB) = 0.001% measured with a 10dBu input signal and with a 22Hz/22kHz band-pass filter
    - Frequency Response at 10dB gain with -10dB input = 10Hz-100kHz +/- 0.6dB
    - Frequency Response at 40dB gain with -40dB input = -2.5dB down at 10Hz and 0dB at 100kHz

    High Pass Filter
    - Roll off = 18dB per octave 3 pole filter
    - Fixed Frequency 75Hz measured at the 3dB down point

    Meters
    - Moving coil (MC) meter is factory calibrated to 0VU = +4dBu with 1kHz sinewave. With the VU Cal button pressed the meter can be adjusted on the rear panel to allow 0VU to equal +10dBu to +26dBu with the centre detent being equal to +22dBu.

    - Peak LED meters calibrated in the detent position for 0dBFS = +22dBu, calibration is adjustable on the rear panel to allow 0dBFS to equal +10dBu to +26dBu

    - Routing for MC and Peak1 meter is after the HPF, pre insert send or switched post insert return. Peak2 is always pre ADC channel 2, which can be fed by external input or Instrument input.

    - LED levels are as follows when peak calibration is set to center detent on the rear panel. (This is when using the internal ADC).

    0 = +22dBu
    -2 = +20dBu
    -6 = +16dBu
    -12 = +10dBu
    -18 = +4dBu
    -42 = -20dBu

    Front and Rear Connectivity

    Analogue Channel Inputs:
    - Mic input: XLR x 1
    - Line input: XLR x 1 and TRS x1
    - Instrument input TRS Jack: XLR x 1
    - External ADC input: TRS Jack x 1
    - Return: TRS Jack x 1

    Analogue Channel Outputs:
    - Send: TRS Jack x 1
    - Balanced line output: XLR x 1
    - DI output: XLR x 1
    - DI through: TS Jack x 1

    Analogue Channel Additional I/O:
    - Cue mix left input: TRS Jack x 1
    - Cue mix right input: TRS Jack x 1
    - Headphones output: 1/4 in. TRS Jack x 1

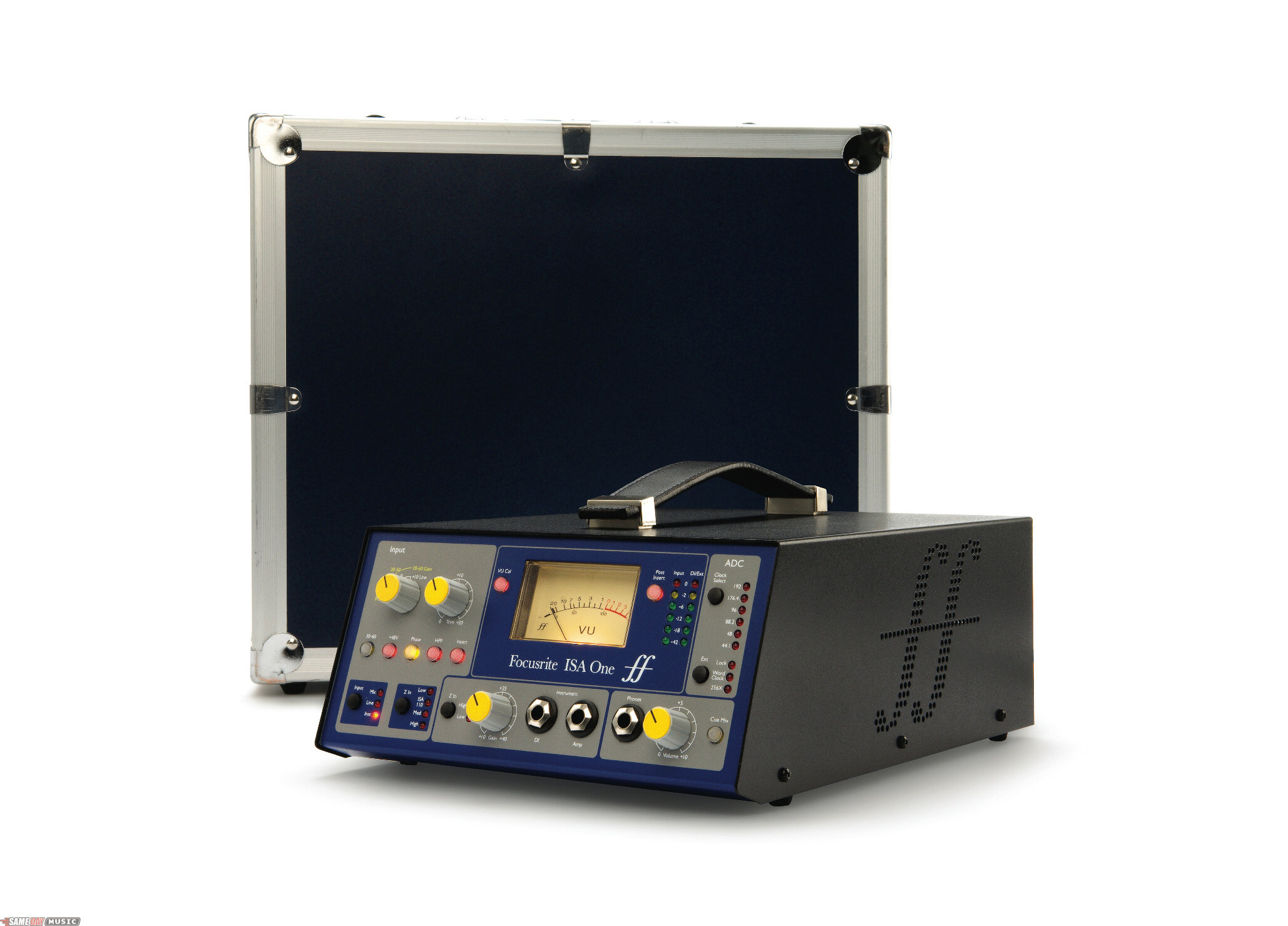

    Case NOT Included.

    Weight: 3.9kg, 8.6 lbs

    Same Day Music is an authorized dealer of Focusrite products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 13 lbs
    Shipping Dimensions: 16 x 16 x 10 in
