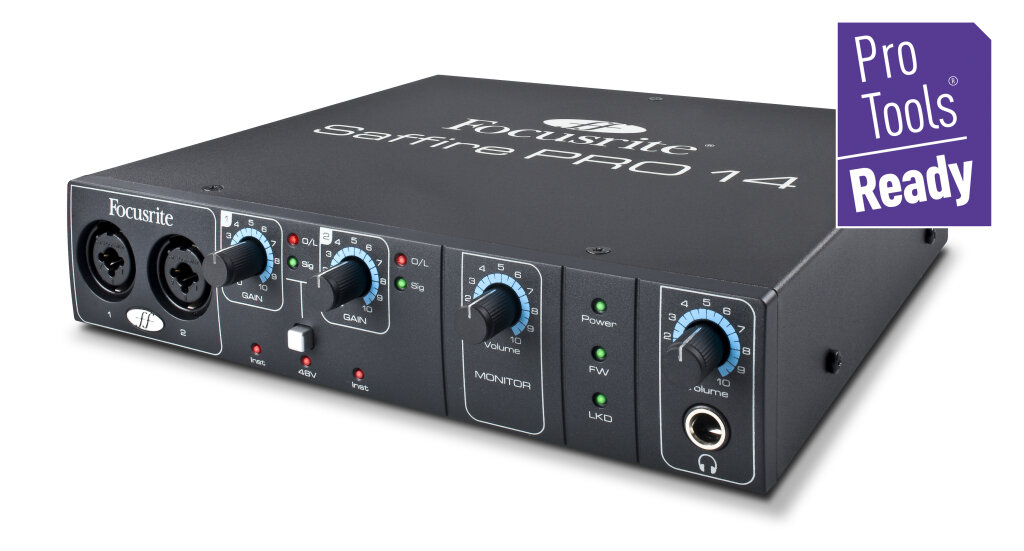

    Focusrite Saffire Pro 14 Firewire Audio Interface

    The Saffire PRO 14 is an eight-in, six-out audio interface with legendary sonic performance and unmatched flexibility at a truly affordable price. The latest in Focusrite's new generation of FireWire audio interfaces, the Saffire PRO 14 is designed to make home studio recording and mixing easy without sacrificing audio quality.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1595-H0GF

    Web Item #FOCSAFFPRO14

    Focusrite Saffire Pro 14 Firewire Audio
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Focusrite Warranty: If you have additional warranty questions, please call the manufacturer at 310-322-5500
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Wed
    •
    • 2 Day: $4
    • Overnight: $24
    SpeedPlay: 2 payments of $125.00
    $250 Seen a lower price?
    Order Now | Limited Qty
    •
    • 2 Day: $6
    • Overnight: $28
    $224.95
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    This item cannot be returned once opened due to copyright law.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Focusrite Saffire PRO 14 Firewire Audio Interface Product Description

    The Saffire PRO 14 is an eight-in, six-out audio interface with legendary sonic performance and unmatched flexibility at a truly affordable price. The latest in Focusrite's new generation of FireWire audio interfaces, the Saffire PRO 14 is designed to make home studio recording and mixing easy without sacrificing audio quality.

    Twenty-five years of mic pre excellence form the foundation of this new interface, with two award-winning Focusrite preamps. Combined with a host of additional I/O options, the Saffire PRO 14 helps you get the tracks you want without having to constantly re-patch your studio.

    Alongside the two high quality mic preamps, two additional analogue inputs, four analogue outputs, S/PDIF and MIDI open the door to true multitrack recording. Two Hi-Z instrument inputs let you plug straight in without the need to buy additional DI boxes, and two virtual 'loopback' inputs are also available for routing digital audio between software applications -- ideal for capturing online audio.

    Included with the PRO 14 is Saffire MixControl, an 18 x 6 DSP mixer. Offering a level of flexibility that is unparalleled at this price point, the MixControl software enables you to create six separate mixes without latency. Route any combination of input signals and sequencer outputs to any of Saffire PRO 14's outputs. Intuitive one-click configurations help you track, monitor and mix as quickly as possible.

    With Saffire PRO 14, sonic integrity is never compromised. The two Focusrite preamps ensure low noise and distortion, whilst quality digital conversion and JetPLL jitter elimination technology ensure pristine quality as your audio flows between the analogue and digital domains. Combined with the very latest in FireWire interfacing technology, excellent routing flexibility and rock-solid driver stability, the Saffire PRO 14 is the heart of the modern home studio.

    Features:

    - High-quality 24-bit/96kHz FireWire interface
    - Two high-quality award-winning Focusrite preamps
    - Professional conversion and JetPLL jitter elimination technology, guaranteeing pristine audio quality and reliable synchronization.
    - Total I/O count of 8 inputs and 6 outputs, including a unique Loopback facility for routing audio between software applications via Saffire MixControl.
    - Saffire MixControl ultra-low-latency 18 x 6 DSP mixer with excellent routing flexibility, intuitive one-click configurations, and lower than 1.4 ms latency
    - Focusrite VST/AU Plug-in Suite: Upgrade your standard sequencer effects and bring a touch of class to your session with Focusrite Compression, Reverb, Gating and EQ VST/AU plug-ins.
    - Xcite+ Software Bundle featuring a host of royalty-free loops and samples, a full-fledged soft synth and Ableton Live Lite 8, providing an affordable upgrade path to Ableton Live.
    - Two Hi-Z instrument inputs: No need for a separate DI. The first two channels feature high-gain instrument inputs.
    - Bus-powered for a tidy mobile recording rig: Saffire PRO 14 can be powered via FireWire, or via its own power supply.
    - Dedicated front-panel headphone bus for a fully customized monitor mix, with tactile level control available on the front panel.
    - Tactile Monitor front panel volume dial provides immediate control over the main stereo outputs.
    - Switchable phantom power across both mic pre inputs, globally switchable direct from the front fascia.
    - Software PFL allows the mix engineer to easily monitor a single mixer channel or complete mix.

    All of Focusrite's FireWire interfaces are fully compatible with Thunderbolt using a simple FireWire to Thunderbolt adapter. Focusrite fully supports the use of Thunderbolt with their FireWire interfaces.

    Same Day Music is an authorized dealer of Focusrite products.

    Focusrite Saffire Pro 14 Firewire Audio Interface Technical Description

    Microphone Inputs 1-2:
    - Frequency Response: 20Hz - 20kHz +/- 0.2 dB
    - Gain Range: +13dB to +60dB
    - Maximum Headroom +8dBu
    - THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
    - Noise EIN: 124dB analogue to digital (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)
    - Input Impedance: 2k Ohm

    Line Inputs (Inputs 1-2):
    - Frequency Response: 20Hz - 20kHz +/- 0.2dB
    - Gain Range: -10dB to +36dB
    - THD+N: 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
    - Noise: -90dBu (22Hz/22kHz bandpass filter)
    - Input Impedance: >10k Ohm

    Line Inputs 3-4:
    - Frequency Response: 20Hz - 20kHz +/- 0.2 dB
    - Gain Range: Switch-able between +16dBu or -10dBV for 0dBFS (balanced inputs) THD+N: 0.003% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
    - Noise: -100dBu (22Hz/22kHz bandpass filter)
    - Input Impedance: >10k Ohm

    Instrument Inputs (Inputs 1 and 2):
    - Frequency Response: 20Hz - 20kHz +/- 0.1dB
    - Gain Range: +13dB to +60dB
    - THD+N: 0.004% (measured with 0dBu input and 20Hz/22kHz bandpass filter)
    - Noise: -87dBu (20Hz/22kHz bandpass filter)

    Analogue Audio Outputs (Outputs 1-4):
    - 4 Electronically Balanced Outputs
    - Maximum Output Level (0dBFS): +10dBu
    - THD+N: 0.001% (0dBFS input, 20Hz/22kHz bandpass filter)

    Crosstalk (Channel Isolation):
    - Any input to input: > 100dB
    - Any output to output: > 100dB
    - Any input to output: > 100dB

    DIGITAL PERFORMANCE:
    - A/D Dynamic Range > 109dB (A-weighted), all analogue inputs
    - D/A Dynamic Range > 106dB (A-weighted), all analogue outputs
    - Clock Sources:
    -- Internal Clock
    -- Sync to Word Clock on SPDIF Input (RCA)
    - JetPLLTM PLL technology providing superb jitter reduction for class leading converter performance
    - Clock jitter < 250 picoseconds
    - Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
    - 8 input channels to computer: Analogue (4), SPDIF (2) and Loop-back (2)
    - 6 physical output channels from computer: Analogue (4), SPDIF (2)
    - 12 DAW output streams
    - Assignable 18 input by 6 output mixer

    Weight and Dimensions:
    - 1.5kg / 3.3lbs
    - 215mm (W) x 45mm (H) x 220mm (D) (8.5" x 1.8" x 8.7")

    Front and Rear Connectivity

    Analogue Channel Inputs (Inputs 1-2):
    - 2 Mic XLR Combo (channels 1-2) on front panel
    - 2 Line 1/4" TRS (channels 3-4) on rear panel
    - Automatic switching between Mic / Line (channels 1-2)
    - Switching between Line / Instrument Inputs (channels 1-2) via Saffire MixControl Application
    - Switching between +16dBu (low) and -10dBV (high) gain on inputs 3-4 via Saffire MixControl Application

    Digital Channel Inputs (Inputs 5-6) 44.1 - 96kHz:
    - Stereo S/PDIF input on RCA

    Analogue Audio Outputs (Outputs 1-4):
    - 4 1/4" TRS Jacks
    - Output Level control (analogue) for outputs 1 and 2
    - Stereo Headphones Mix 1 on 1/4" TRS (also routed to Outputs 3 & 4) with independent volume control

    Digital Channel Outputs (Outputs 5-6) 44.1 - 96kHz:
    - Stereo S/PDIF Output on RCA

    Other I/O:
    - 1 6-pin FireWire S400 socket
    - 2 Standard 5-pin DIN MIDI connectors: In and Out
    - DC Power Input Connector (for use with supplied universal input power supply)

    Front Panel Indicators:
    - 2 2 segment input meters, Sig (-18) and O/L (0dBFS)
    - "LKD" Locked Indicator
    - "FW" Host Connected Indicator
    - "Power" Indicator
    - Instrument input source selection LED for channels 1 and 2
    - Phantom Power (48V) switch and LED for inputs 1 and 2

    System Requirements

    Macintosh:
    - OS: Mac OS X 10.5.8 or Mac OS X 10.6.2
    - Computer: Apple Macintosh with FireWire 400 support
    - CPU/Clock: PowerPC G5 2GHz (Leopard) or Intel 2GHz (Snow Leopard)
    - Memory (RAM): 1GB (2GB or more recommended)
    - Screen Resolution: 1024x768 (1280x1024 or more recommended)

    Windows:
    - OS: Windows 7 (64-bit & 32-bit), Windows Vista (32-bit only) or Windows XP SP2 or higher (32-bit only)
    - Computer: Windows compatible computer with FireWire 400 support
    - CPU/Clock: Pentium or AMD with 1.6GHz or higher (Dual 1GHz or higher recommended)
    - Memory (RAM): 1GB (2GB or more recommended)
    - Screen Resolution: 1024x768 (1280x1024 or more recommended)

    Same Day Music is an authorized dealer of Focusrite products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 5 lbs
    Shipping Dimensions: 13 x 11 x 5 in
