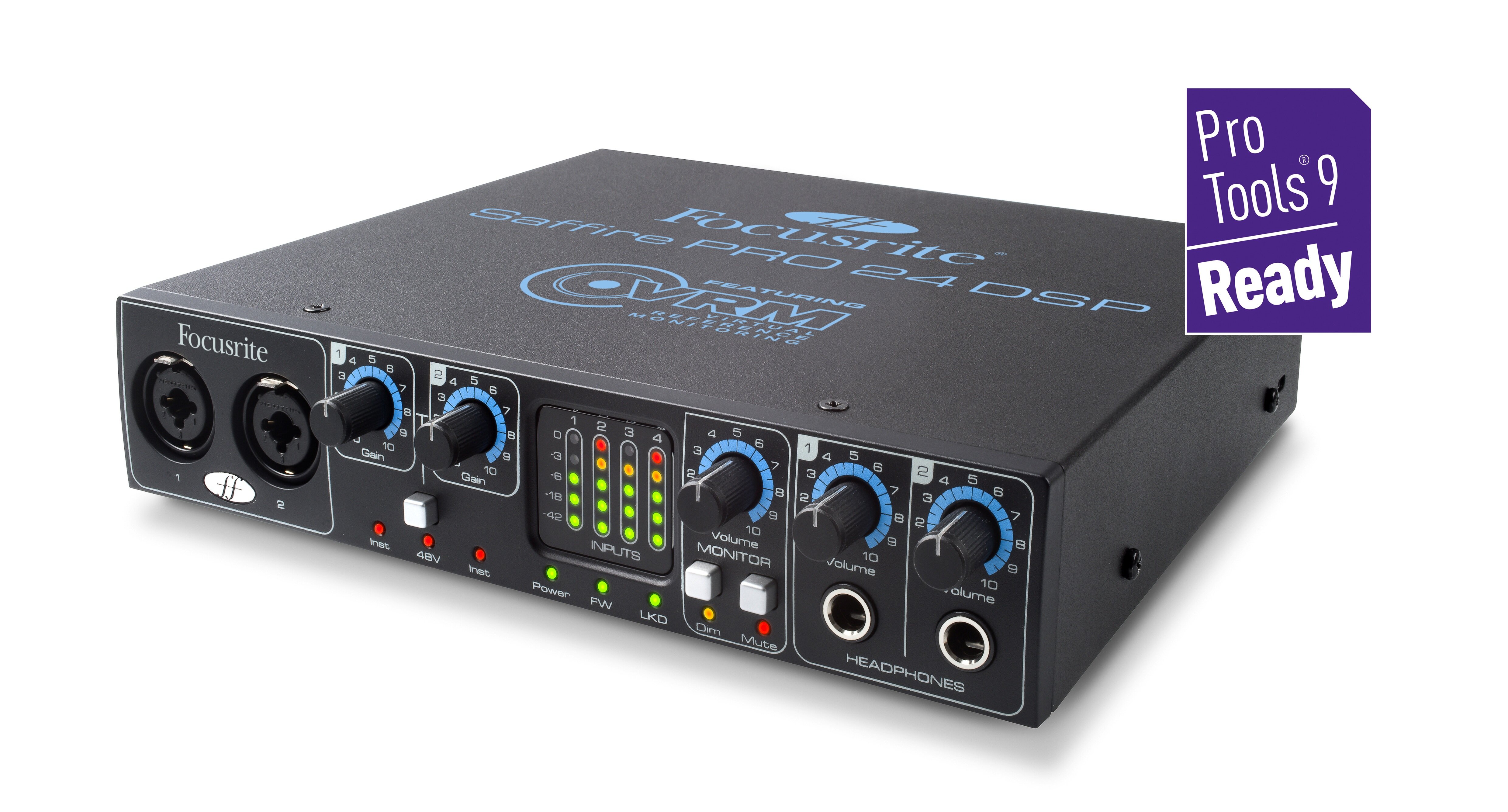

    Focusrite Saffire Pro 24 DSP with VRM Technology FireWire Audio Interface

    Simulate mixing in unique environments with integrated VRM technology only found in the Focusrite Saffire Pro 24, with zero-latency monitor in all inputs.
    Product Rated 9.8 Out of 10 (2 ratings)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1452-2CRP

    Web Item #FOCSAFPRO24DSP

    Focusrite Saffire Pro 24 DSP with VRM
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Manual
    Focusrite Warranty: If you have additional warranty questions, please call the manufacturer at 310-322-5500
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Thu
    •
    • 2 Day: $4
    • Overnight: $26
    SpeedPlay: 2 payments of $174.50
    $349 Seen a lower price?
    In Stock | Will Ship Thu
    •
    • 2 Day: $14
    • Overnight: $40
    $269.95
    In Stock | Will Ship Thu
    •
    • 2 Day: $4
    • Overnight: $30
    $314.95
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Focusrite Saffire Pro 24 DSP FireWire Audio Interface with VRM Technology Product Description

    The Focusrite Saffire PRO 24 DSP is Focusrite's 16 In / 8 Out FireWire audio interface, featuring real-time DSP-powered tracking and mixing solutions tailor-made for the modern home studio environment.

    Alongside DSP-powered Compression and EQ for latency-free tracking and 'comfort' reverb, is VRM; a Virtual Reference Monitoring technology that lets you hear your mix in different environments, through different speakers and from different positions, all just using headphones.

    VRM makes Saffire PRO 24 DSP the only interface capable of simulating over one hundred different monitoring scenarios through your headphones. VRM overcomes the major obstacle for mixing with headphones by giving you multiple perspectives on your mix, as if you were listening through speakers. Indeed, noise levels from mixing through speakers can make it impossible for most to mix at home, especially late at night; with VRM, you can mix anytime, anywhere. Using any pair of monitoring headphones, VRM let's you choose your mixing environment from a living room, a bedroom studio, or a professional studio. You then simply choose where you are positioned in that room and what speakers you listen through.

    Saffire PRO 24 DSP draws on twenty-five years of mic pre excellence. The two Focusrite preamps capture every subtle nuance of your sound whilst ensuring low noise and distortion. Meanwhile, high-quality digital conversion and JetPLL(tm) jitter elimination technology ensure pristine audio quality as your audio flows between the analogue and digital domains.

    Saffire PRO 24 DSP's other real-time DSP-powered effects also exhibit Focusrite's uncompromising approach to audio quality. EQ, Compression and 'Comfort' Reverb sonically derived from the 'Focusrite Plug-in Suite' (also included as VST/AU plug-ins) are all integrated within the Saffire Mix Control software, providing professional latency-free tools for tracking and monitoring.

    Alongside the two Focusrite preamps are a host of I/O options; two additional analogue inputs, six analogue outputs, ADAT inputs (for expanding the interface with, for example, Focusrite's OctoPre), stereo S/PDIF I/O and 2 virtual 'loopback' inputs for routing digital audio between software applications - ideal for capturing online audio. Front panel 5-LED metering for each analogue input offers accurate viewing of levels.

    Saffire Mix Control, the zero-latency 16 x 8 DSP Mixer/Router software provided with Saffire PRO 24 DSP, sets a standard at this price point for audio interface control. It features flexible output routing and monitoring, as well as intuitive one-click set-up solutions designed to help you track, monitor and mix as easily as possible.

    Saffire PRO 24 DSP also comes with all the additional tools needed to start making music right away. These include the recent version of the Focusrite Plug-in Suite, which provides a significant upgrade from your standard sequencer effects. The suite includes Compression, Reverb, Gating and EQ VST/AU plug-ins.

    Focusrite's established Xcite+ bundle is also included. The bundle features Ableton Live 7 Lite (for all your production, performance and compositional needs), Novation's Bass Station soft synth and over 1 gig of royalty-free samples from Loopmasters and 'Mike the Drummer'.

    Saffire PRO 24 DSP combines two award-winning Focusrite preamps and a host of other I/O with VRM Virtual Reference Monitoring, integrated real-time tracking and monitoring effects, and easy-to-use mix control software. Together, they deliver the most comprehensive professional compact music-recording interface to date.

    Features:

    VRM Virtual Reference Monitoring: Hear your mix in different environments, through different speakers and from different positions, just using headphones

    Two High Quality Award-winning Focusrite Preamps: The best sounding interface in its class. Focusrite's unparalleled preamp legacy forms the foundation of this interface, with two award-winning Focusrite preamps.

    Onboard DSP-powered, latency-free tracking and mixing tools: Classic Focusrite EQ and Compression for tracking, as well as 'comfort' reverb to place across your monitor mixes.

    High Quality 24-bit/96kHz FireWire Interface: High-quality A-D / D-A conversion and JetPLL jitter elimination technology; pristine audio quality and reliable synchronization are guaranteed.

    Total I/O Count of 16 Inputs and 8 Outputs: A host of I/O options are provided, including a unique loop-back facility for routing audio between software applications via Saffire Mix Control.

    Saffire Mix Control Zero-latency DSP Mixer/Router: Routing flexibility and intuitive one-click set-up solutions; Saffire Mix Control provides an 16 x 8 DSP mixer with excellent output routing and monitoring capabilities.

    Xcite+ Software Bundle: A host of royalty-free loops and samples, a full-fledged Novation soft synth and Ableton Live 7 Lite, providing an affordable upgrade path to Ableton Live.

    Focusrite VST/AU Plug-in Suite, for use in the mix: Upgrade your standard sequencer effects and bring a touch of class to your session with Focusrite Compression, Reverb, Gating and EQ VST/AU plug-ins.

    Front panel 5-LED metering: LED metering for each of the analogue inputs offers accurate viewing of levels direct from the front fascia.

    Two dedicated front-panel headphone busses: Two fully customized monitor mixes, with tactile level control available on the front panel.

    Bus-powered for a tidy mobile recording rig: Saffire PRO 24 DSP can be powered via FireWire, or via its own power supply.

    About Virtual Reference Monitoring

    The Problem
    VRM (Virtual Reference Monitoring) is Focusrite's own loudspeaker & room simulator designed for headphone listening. Accurate mixing has until now, required expensive monitors and a carefully designed and treated control room. Currently, both professional music producers facing budgetary limitations and project music makers without access to such, frequently encounter mixing and "auditioning" difficulties.

    The Solution
    VRM allows you to choose from 10 pairs of industry standard near-field and main monitors in an acoustically treated control room. You can select 6 different listening positions within that room; vary your distance from the monitors and move from left to right to check stereo imaging.

    Engineers routinely A/B their mixes by burning CDs and taking them into untreated rooms to reference on consumer stereos. VRM eliminates this process by simulating two extra rooms; a large living room and a smaller bedroom. You can choose between a range of speakers including quality hi-fi, computer, cheap stereo and television speakers. As with the control room simulation, you can select between a number of listening positions to check stereo imaging and observe the effects of typical room modes on your mixes.

    The Method
    VRM uses standard headphones to reproduce the direct sound, together with a DSP system that is used to simulate specific monitoring scenarios. VRM's room models are mathematical models which provide greater flexibility in the possible combinations of loudspeakers and listening positions. The loudspeaker simulations are created using convolutions of impulse responses measured using the original loudspeakers. The accuracy of these simulations in different environments is taken care of by the impulse responses themselves and the way they are calculated and manipulated. Saffire Pro 24 DSP takes all the processing load off your computer.

    All of Focusrite's FireWire interfaces are fully compatible with Thunderbolt using a simple FireWire to Thunderbolt adapter. Focusrite fully supports the use of Thunderbolt with their FireWire interfaces.

    Same Day Music is an authorized dealer of Focusrite products.

    Focusrite Saffire Pro 24 DSP Technical Description

    Specifications

    Microphone Inputs:
    - Dynamic Range (A-Weighted): 106dB
    - SNR (A-weighted): -105.3dB
    - Frequency Response: 20Hz - 20kHz +/- 0.1 dB
    - THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
    - Noise: EIN > 125dB (128dB analogue to digital) (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)
    - Maximum level (A-weighted): 8.6dBu at 1%

    Line Inputs:
    - Dynamic Range (A-Weighted): 106.5dB
    - SNR (A-weighted): -106dB
    - Frequency Response: 20Hz - 20kHz +/- 0.1dB
    - THD+N (A-Weighted): < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
    - Noise: -90dBu (22Hz/22kHz bandpass filter)
    - Maximum level (A-weighted): 16.3dBu at 1%

    Instrument Inputs:
    - Frequency Response: 20Hz - 20kHz +/- 0.1dB
    - THD+N: 0.004% (measured with 0dBu input and 20Hz/22kHz bandpass filter)
    - Noise: -87dBu (20Hz/22kHz bandpass filter)

    Line level Outputs:
    - Dynamic Range (A-Weighted): 105dB
    - SNR (A-weighted): -104.5dB
    - THD+N: < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
    - Maximum level (A-weighted): 16.13dBu at 0.885%

    Additional Conversion Performance:
    - Clock jitter < 250 picoseconds
    - THD+N AMPL (A-weighted)= -107dBFS

    Connectivity
    Analogue Channel Inputs (Inputs 1-4):
    - 2 x XLR Mic/Line Neutrik Combi-Jacks (Inputs 1-2)
    - 2 x XLR Instrument Neutrik Combi-Jacks (Instrument on inputs 1 and 2 only)

    Automatic switch of Mic / Line (inserting a jack switches from Mic to either Line or Instrument (instrument selected via the software control panel)

    Line inputs 3-4 have low and high gain settings can be controlled from the Saffire MixControl software (low gain being the default)

    Digital Channel Inputs (Inputs 5-14) 44.1-96kHz:
    - Stereo S/PDIF input on RCA
    - 1 x 8 channel ADAT input on Optical Connector (SDPIF 3&4 set in preferences menu)

    Analogue Audio Outputs (Outputs 1-6):
    6 x TRS analogue outputs (Outputs 1-6)
    2 x TRS stereo headphone output (headphone mix 1 same as outputs 3 & 4)

    Digital Channel Outputs (Outputs 7-8) 44.1-96kHz:
    - Stereo S/PDIF output on RCA

    Other I/O:
    - 1 x 6-pin FireWire socket
    - 2 Standard 5-pin DIN MIDI connectors: In and Out
    - 12V DC power input connector for use with external PSU

    Weight and Dims:
    - 1.6kg / 3.5 lbs
    - 215mm / 8.5" (W) x 45mm / 1.8" (H) x 220mm / 8.65" (D)

    System Requirements

    Apple Mac
    Operating System:
    For up-to-date information about operating system compatibility, please see the OS Compatibility Checker.

    Computer:
    Apple Macintosh with FireWire 400 port (or 800 port with 800 to 400 adaptor)

    CPU/Clock:
    PowerPC G4/Dual 1 GHZ or faster or any Intel-based Mac

    Memory (RAM):
    512 MB (more recommended)

    Screen Resolution:
    1024x768 (1280x1024 or more recommended)

    Windows
    Operating System:
    For up-to-date information about operating system compatibility, please see the OS Compatibility Checker.

    Computer:
    Windows compatible computer with FireWire 400 port.

    CPU/Clock:
    Pentium or AMD with 1 GHz or higher (Dual 1 GHz or better
    recommended)

    Memory (RAM):
    512 MB (more recommended)

    Screen Resolution:
    1024x768 (1280x1024 or more recommended)

    Same Day Music is an authorized dealer of Focusrite products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 6 lbs
    Shipping Dimensions: 13 x 11 x 5 in
