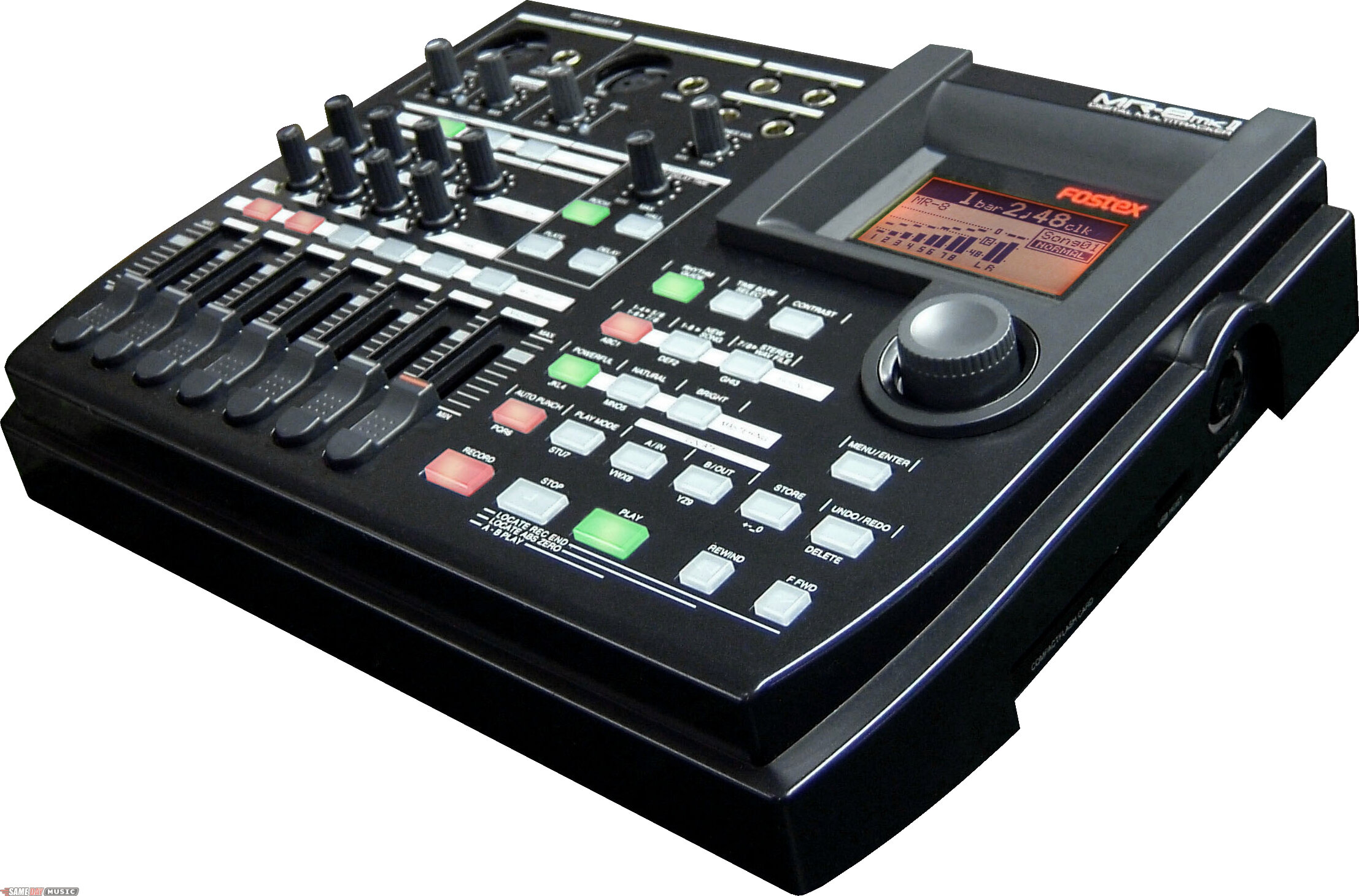

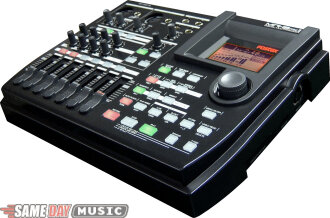

Fostex MR8 MKII 8-Track Digital Recorder
8 tracks of recording and playback using CompactFlash cards. 2 track simultaneous recording.
Product rated 9.1 out of 10 (16 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Shure PG58 Vocal Mic
- from $60
- Shure SM58 Microphone
- from $99
- AKG C1000S Mic
- from $280
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The ultimate record-anywhere multitrack.
Capture inspiration whenever and wherever you are.
The new MR-8 Mk II is the easiest to use digital multitrack ever. If you can operate a tape recorder, you'll be recording and multitracking within minutes of opening the box.
By putting all the major controls and functions right there on the top panel instead of buried in a confusing menu system, the MR-8 Mk II, unlike some other recorders, actually aids you in capturing your musical ideas. In addition there's great sounding built-in digital effects, guitar amp and mic simulators, handy mix-down effects, plus the ability to hook up to a PC for data editing, and backing up your songs.
You create. Fostex records.
New for the Mk II is the USB host feature which allows for the easy connection of an 'off-the-shelf' CD-R burner via USB. Making CD masters has never been more simple.
Recording time
Recording time in normal mode (16bit/44.1kHz) is approx. 25 track-minutes on the supplied 128MB CF card and 50 track-minutes on a 256MB card. Extended mode (16bit/22.05kHz) doubles the recording time. Note that recording time varies depending on recorded source, punch in/out, undo/redo status, etc.
Features
8 tracks of recording and playback using CompactFlash cards
2 track simultaneous recording
Superb in-built digital effects inc Mic and Amp simulations
USB Host function for CD burning with 'off-the-shelf' CD burner
2 mic inputs with +48V Phantom Power
Details
8-track recording onto CompactFlash Card.
High quality sound recording and playback with uncompressed linear 16-bit/44.1 kHz digital audio (normal mode) with 2 track simultaneous recording and 8 track playback.
LP Mode (16-bit/22.05 kHz) doubles the recording time.
Physical knobs and buttons for intuitive operations. A new dial knob for menu selection.
Newly added +48V Phantom Power on all two Mic Inputs for wider choice of microphones.
USB Host function ready for CD burning on an off-the-shelf external CD-R drive.
Improved 132 x 64 dot-matrix LCD and self illuminating keys visually show the current status.
Improved built-in digital effects including Reverb, Delay as well as Guitar Amp and Microphone simulations
Black colored top panel design
Analog guitar distortion with the dedicated knob on Input A.
Full-track (8-track) bouncing to a "New Song (track 7/8) for PC transfer and CD burning.
Mastering effects for stereo buss.
USB port for stereo WAV file transfer to and from PC
AC and Battery (6 x AA alkaline cells) operation. Approx. 4 hours maximum operation time with batteries. Includes AC adapter.
Built-in microphone for handy song memo.
Two headphones outputs.
Free "WAV Manager" software available for multiple mono files transfer to and from PC
Capture inspiration whenever and wherever you are.
The new MR-8 Mk II is the easiest to use digital multitrack ever. If you can operate a tape recorder, you'll be recording and multitracking within minutes of opening the box.
By putting all the major controls and functions right there on the top panel instead of buried in a confusing menu system, the MR-8 Mk II, unlike some other recorders, actually aids you in capturing your musical ideas. In addition there's great sounding built-in digital effects, guitar amp and mic simulators, handy mix-down effects, plus the ability to hook up to a PC for data editing, and backing up your songs.
You create. Fostex records.
New for the Mk II is the USB host feature which allows for the easy connection of an 'off-the-shelf' CD-R burner via USB. Making CD masters has never been more simple.
Recording time
Recording time in normal mode (16bit/44.1kHz) is approx. 25 track-minutes on the supplied 128MB CF card and 50 track-minutes on a 256MB card. Extended mode (16bit/22.05kHz) doubles the recording time. Note that recording time varies depending on recorded source, punch in/out, undo/redo status, etc.
Features
8 tracks of recording and playback using CompactFlash cards
2 track simultaneous recording
Superb in-built digital effects inc Mic and Amp simulations
USB Host function for CD burning with 'off-the-shelf' CD burner
2 mic inputs with +48V Phantom Power
Details
8-track recording onto CompactFlash Card.
High quality sound recording and playback with uncompressed linear 16-bit/44.1 kHz digital audio (normal mode) with 2 track simultaneous recording and 8 track playback.
LP Mode (16-bit/22.05 kHz) doubles the recording time.
Physical knobs and buttons for intuitive operations. A new dial knob for menu selection.
Newly added +48V Phantom Power on all two Mic Inputs for wider choice of microphones.
USB Host function ready for CD burning on an off-the-shelf external CD-R drive.
Improved 132 x 64 dot-matrix LCD and self illuminating keys visually show the current status.
Improved built-in digital effects including Reverb, Delay as well as Guitar Amp and Microphone simulations
Black colored top panel design
Analog guitar distortion with the dedicated knob on Input A.
Full-track (8-track) bouncing to a "New Song (track 7/8) for PC transfer and CD burning.
Mastering effects for stereo buss.
USB port for stereo WAV file transfer to and from PC
AC and Battery (6 x AA alkaline cells) operation. Approx. 4 hours maximum operation time with batteries. Includes AC adapter.
Built-in microphone for handy song memo.
Two headphones outputs.
Free "WAV Manager" software available for multiple mono files transfer to and from PC
TECHNICAL DESCRIPTION
Recording / Playback
Recording medium CompactFlash
Recording time approx. 6 minutes (8-track on 256MB CF) normal mode
Recording format FAT16
Sampling frequency 44.1 kHz (Normal Mode), 22.05 kHz (LP Mode)
Quantization 16-bit linear (non-compression)
A/D converter 24-bit Delta-Sigma
D/A converter 24-bit Delta-Sigma
No. of recording track 8 tracks maximum
No. of simultaneous rec. 2 tracks
Recording/reproduction frequency 20 Hz - 20 kHz (Normal Mode)
Dynamic range 87dB or more (typical) (Normal Mode)
T.H.D. 0.05% or less (typical) (Normal Mode)
Inputs / Outputs
Analog in (input A/B)
Connector XLR-3-31 type (Pin2:hot) and 6mm TRS phone
Input level -48dBV (MIC) - +4dBV (LINE)
Input impedance 1.5k ohm or more 400k ohm or more (GUITAR on INPUT A)
Phantom power P48V (on/off selectable)
Stereo out (L, R)
Connector 6mm stereo phone
Output level -10dBV (unbalance)
Load impedance 10k ohm or more
Headphones (phone 1, 2)
Connector 2 x 6mm stereo phone
Max. output 30mW or more (at 32 ohm)
Load impedance 16 ohm or more
MIDI out
Connector DIN 5 pin
Format MIDI standard
Foot switch
Connector 6mm phone
Level TTL level
USB 2.0 HI-SPEED
Connector B type
USB 1.1
Connector A type
General
Dimensions 286(W) x 220(D) x 65(H) mm
Weight approx. approx. 1.6kgs
Power requirement DC12V, 400mA
Recording medium CompactFlash
Recording time approx. 6 minutes (8-track on 256MB CF) normal mode
Recording format FAT16
Sampling frequency 44.1 kHz (Normal Mode), 22.05 kHz (LP Mode)
Quantization 16-bit linear (non-compression)
A/D converter 24-bit Delta-Sigma
D/A converter 24-bit Delta-Sigma
No. of recording track 8 tracks maximum
No. of simultaneous rec. 2 tracks
Recording/reproduction frequency 20 Hz - 20 kHz (Normal Mode)
Dynamic range 87dB or more (typical) (Normal Mode)
T.H.D. 0.05% or less (typical) (Normal Mode)
Inputs / Outputs
Analog in (input A/B)
Connector XLR-3-31 type (Pin2:hot) and 6mm TRS phone
Input level -48dBV (MIC) - +4dBV (LINE)
Input impedance 1.5k ohm or more 400k ohm or more (GUITAR on INPUT A)
Phantom power P48V (on/off selectable)
Stereo out (L, R)
Connector 6mm stereo phone
Output level -10dBV (unbalance)
Load impedance 10k ohm or more
Headphones (phone 1, 2)
Connector 2 x 6mm stereo phone
Max. output 30mW or more (at 32 ohm)
Load impedance 16 ohm or more
MIDI out
Connector DIN 5 pin
Format MIDI standard
Foot switch
Connector 6mm phone
Level TTL level
USB 2.0 HI-SPEED
Connector B type
USB 1.1
Connector A type
General
Dimensions 286(W) x 220(D) x 65(H) mm
Weight approx. approx. 1.6kgs
Power requirement DC12V, 400mA
CATALOG DESCRIPTION
Compact, easy-to-use digital recorder@2-track recording, 8-track playback@Up to 16-bit, 44.1kHz resolution@Two XLR inputs with phantom power@Dedicated guitar input with analog distortion@Digital editing and multi-effects@CompactFlash card drive; USB for PC file transfer
