Product Description

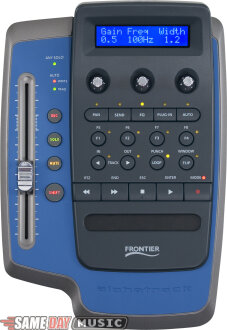

Frontier Design Group's new AlphaTrack combines a set of intuitive tactile controls in a compact and attractive package. Ride a high-resolution fader, turn real knobs, scroll and shuttle with the touch of your fingers, all with a control surface that fits your desktop and the way you work. AlphaTrack lets you work more productively and creatively without giving up a lot of desktop space.

AlphaTrack includes a 100mm, touch-sensitive, motorized fader which provides true 10-bit resolution for smooth and precise level control. AlphaTrack also has 3 touch-sensitive encoders, a feature previously found only on high-end gear costing thousands of dollars. These let you adjust track and plug-in parameters while the 32-character backlit display shows detailed feedback in response to your touch. The encoders provide quick control of pans, sends, EQ, plug-ins, and automation.

One of AlphaTrack's greatest innovations is its touch-sensitive jog and shuttle strip. Slide one finger across its surface and your project's timeline scrolls in response. Drop a second finger onto the strip, and now your fingers control the timeline's shuttle speed. Zoom through your project with 2 fingers, then just lift one finger and slide to quickly set the precise position you want. And you can also just tap on the left or right ends of the strip to navigate through your project's markers!

AlphaTrack also has a set of 22 buttons and 21 LEDs, including standard transport controls, per track record, solo, mute, and automation indication, and encoder mode control. When supported by the computer application, a set of buttons can also be customized with user-programmable functions.

AlphaTrack connects to your computer using just a single USB cable. This makes it quite portable, easy to connect, and compatible with laptops since no additional power supply is needed. AlphaTrack's backpanel also includes a footswitch jack for easy punch-in recording.

AlphaTrack works on Windows XP and Mac OS X (including Intel Macs) with applications such as Pro Tools, SONAR, Reason, Cubase, Nuendo, Final Cut Pro, Soundtrack Pro, and Reaper. Support for more applications will be added regularly.

Technical Description

Requirements: Windows XP (Service Pack 2 recommended) or Mac OS X (10.3.9+) operating system

Computer Interface: powered full-speed USB 2.0 or USB 1.1 port (unpowered hub connection not recommended)

Power: From USB port; no external adapter required

Included Items: AlphaTrack control surface, 6 ft. (1.8 m) USB cable, CD-ROM, Quick Start Guide

Size: 8.5 in. x 6 in. x 3 in. (22 cm x 15 cm x 7.5 cm)

Weight: 1 lb. 2 oz. (510 grams)

Catalog Description

Comprehensive, compact DAW contro@Touch-sensitive 100mm motorized fader@3 touch-sensitive rotary encoders@Touch-sensitive strip for jog/shuttle control@Over 20 buttons and LEDs including transport controls@Backlit LCD screen@Footswitch input for punch-ins@USB bus-powered
