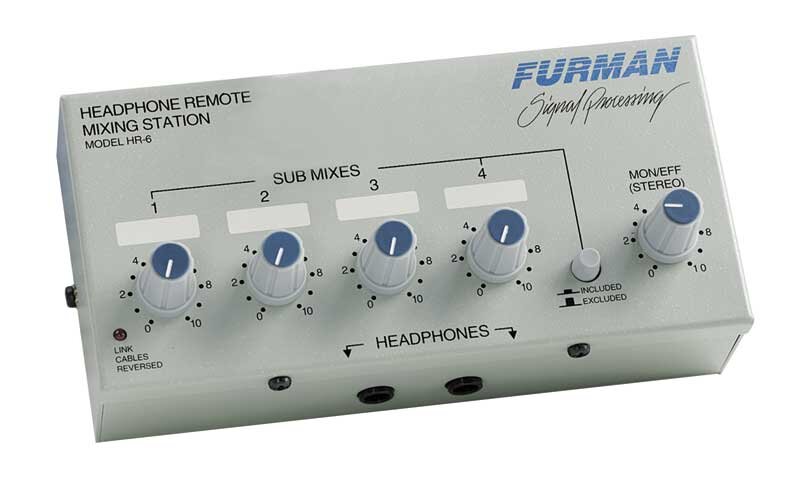

Furman HR6 Headphone Remote Mixing Station
Portable mixing station from Furman is the best way to provide your musicians, or your self with quality mixes right where you need it most.
Product rated 7.5 out of 10 (2 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
PRODUCT DESCRIPTION
The HR-6 is a compact 6-channel, 5-pot remote mixer that clamps to any mic stand. When used with the HDS-6, the HR-6 allows musicians to customize their own headphone or monitor mix, and the engineer doesn't have to touch the board.
The HR-6 provides 4 mono pots and one stereo pot. The 4 mono pots allow each user to create a custom mix of 4 console channels or busses. The stereo pot will most often be used for a main control room mix, or for a stereo effects return.
The HR-6 also provides a "Submixes Included/Excluded" button, which mutes the four mono pots, allowing only the stereo source to be heard, without having to alter the HR-6's 4 monaural settings.
The HDS-6/HR-6 Audio Distribution System and HR-6 Remote Mixer are designed for high-end audio applications, yet are affordable enough for home studios and general live sound applications.
Features
Every performer in a studio or live sound setting can have a personalized mix without any adjustments at the board.
Perfect for use as a headphone system in the studio, plus drives powered monitors in live sound applications.
HDS-6 rackmount audio distribution system connects to the mixer/console to provide interface and power supplies to drive a group.
HR-6 remote mixer provides each musician with 5 volume controls: 4 monaural (for mixer channels or busses), plus one for an overall stereo mix or a stereo effects return.
HDS-6 to HR-6 linking cables are included with the HR-6, as is a universal mic stand clamp.
HDS-6 provides gain trims and overload LEDs for each input, ground lift and on/off switch, and system status LEDs.
The HR-6 provides 4 mono pots and one stereo pot. The 4 mono pots allow each user to create a custom mix of 4 console channels or busses. The stereo pot will most often be used for a main control room mix, or for a stereo effects return.
The HR-6 also provides a "Submixes Included/Excluded" button, which mutes the four mono pots, allowing only the stereo source to be heard, without having to alter the HR-6's 4 monaural settings.
The HDS-6/HR-6 Audio Distribution System and HR-6 Remote Mixer are designed for high-end audio applications, yet are affordable enough for home studios and general live sound applications.
Features
Every performer in a studio or live sound setting can have a personalized mix without any adjustments at the board.
Perfect for use as a headphone system in the studio, plus drives powered monitors in live sound applications.
HDS-6 rackmount audio distribution system connects to the mixer/console to provide interface and power supplies to drive a group.
HR-6 remote mixer provides each musician with 5 volume controls: 4 monaural (for mixer channels or busses), plus one for an overall stereo mix or a stereo effects return.
HDS-6 to HR-6 linking cables are included with the HR-6, as is a universal mic stand clamp.
HDS-6 provides gain trims and overload LEDs for each input, ground lift and on/off switch, and system status LEDs.
TECHNICAL DESCRIPTION
Input Impedance: 20K ohms
Sensitivity: Variable, -10 to +4 dBu for rated output (adjustable with trimpot on each input)
Power Output: 400 mW at 32 ohms (200 mW at 600 ohms, 500 mW at 100 ohms) from 20 Hz to 20 KHz
Inputs: RJ-45 jacks. Output: 1/4" stereo headphone jack
Connecting Cable: 2 each: 10Base-T UTP Ethernet computer cables, Cat. 3 or better
Distortion: 0.008% THD at full rated power at 1 KHz; 0.05% THD 20Hz to 20 KHz
Dynamic Range: Greater than 96 dB
Frequency Response: +0, -1 dB from 20 Hz to 20 KHz, 400 mW output
Power Requirement: 120 VAC, 60 Hz, 20 watts
Dimensions (H x W x D): 2.5 x 6.75 x 3.5 in.
Weight: 0.58 kg (1.25 lbs.)
Sensitivity: Variable, -10 to +4 dBu for rated output (adjustable with trimpot on each input)
Power Output: 400 mW at 32 ohms (200 mW at 600 ohms, 500 mW at 100 ohms) from 20 Hz to 20 KHz
Inputs: RJ-45 jacks. Output: 1/4" stereo headphone jack
Connecting Cable: 2 each: 10Base-T UTP Ethernet computer cables, Cat. 3 or better
Distortion: 0.008% THD at full rated power at 1 KHz; 0.05% THD 20Hz to 20 KHz
Dynamic Range: Greater than 96 dB
Frequency Response: +0, -1 dB from 20 Hz to 20 KHz, 400 mW output
Power Requirement: 120 VAC, 60 Hz, 20 watts
Dimensions (H x W x D): 2.5 x 6.75 x 3.5 in.
Weight: 0.58 kg (1.25 lbs.)
