Product Description

The new Shuttle STL6012T incorporates a highly innovative removable chassis design powered 600 watt design, while remaining extremely compact and weighting only 3.75 lbs. The Shuttle 60 blends the best of analog and digital platforms to produce the ultimate in warmth, punch and power.

The signal path utilizes a 12AX7 tube preamp with our acclaimed Active EQ and responsive Signal Shape circuitry. An optional foot switch is available for use with the Signal Mute and our 3 Signal Shaping circuits.

The power amp section is a leading-edge high power CLASS D module, which also incorporates a Switch Mode Power Supply. The Shuttle 60 delivers 375 watts at 8 ohms and over 600 watts at 4 ohms.

As a part of the unique Shuttle design the amplifier can be removed from the “saddle” of the combo models to provide ultimate flexibility in this bass system.

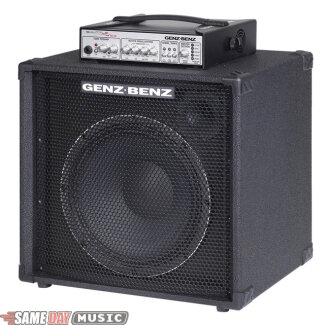

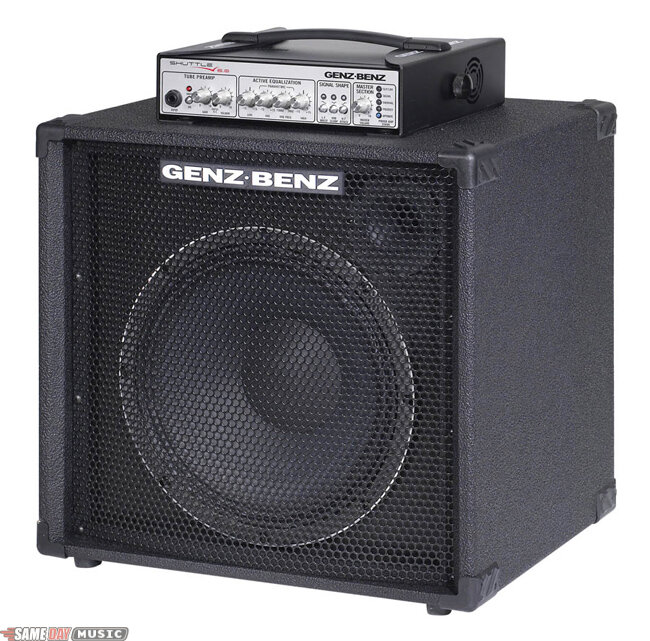

The Shuttle 60 chassis is matched to a compact, lightweight 1 x 12 in. and tweeter enclosure loaded with our GNX12300 Neodymium loudspeaker. The rear ported cabinet delivers the rich, tight response of the Shuttle amplifier and weights in at travel friendly 32 lbs. A bottom mounted tilt-back kickstand is provided. An 8 ohm combo which delivers 375 watts into the internal speaker and over 600 watts with an extension cabinet.

Features

Ultra Light 3.75 lb Design

Power: 375W/8 ohms; 600W/4 ohms

Analog 12AX7 Tube Preamp

Digital SMPS (Switch Mode Power Supply)

High Current Class D Amplifier

Active EQ w/Parametric Mids

3-Band Signal Shape Circuit (Footswitchable)

Signal Mute Switch (Footswitchable)

Tuner Out

Extended Range Input Gain for Active/Passive Sensitivity

Limiter Circuit

LED Status Indicators

Speakon Speaker Outputs

Internal Fan Cooling

Full XLR Direct Out Interface

Aux. Input

Headphone Jack

Effects Loop

Optional Footswitch available.

Combo w/12 in. NEO and Bullet Tweeter

375W as combo/600W with EXT. Cab

Compact 31 lb combo

Removable Amp Chassis

Rear-ported for Full Bass Responses

Technical Description

Power Output: 375 Watts/600 Watts

Cabinet Response: 45 - 18k Hz

Speaker Configuration: 1 x 12 in. & Tweeter

Preamp Type: Tube

Weight: 32 lbs

Dimensions (HxWxD): 21 3/4 x 18 3/8 x 14 1/4 in.
