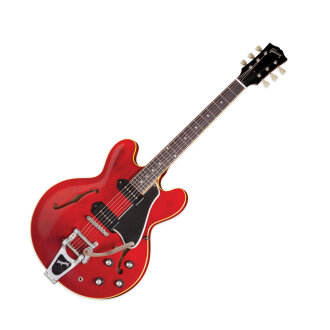

    Gibson Custom ES330 VOS Electric Guitar
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Gibson Warranty: If you have additional warranty questions, please call the manufacturer at 800-4GIBSON
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $22
    • Overnight: $70
    SpeedPlay: Call for 2 payments!
    $3,899 Seen a lower price?
    Order Now | Limited Qty
    •
    • 2 Day: $22
    • Overnight: $70
    SpeedPlay: Call for 2 payments!
    $3,899 Seen a lower price?
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Gibson Custom Shop ES330 VOS Hollowbody Electric Guitar with Case Product Description

    The Gibson Custom ES330 VOS Hollowbody Electric Guitar is reminiscent of the classic Gibson, late '50s feel, including the comfortable neck shape blending into the soft curves of the rounded fingerboard binding. The ES330 from Gibson Custom is a lightweight, full hollowbody guitar with a lively sound whether played acoustically or plugged in. With the 16th fret neck joint and just the right neck angle, the ES330 has a great feel that makes you want to play all night.

    The combination of exacting '50s body and neck specifications and slightly underwound P-90 pickups on aged nickel-plated bases tied together with an original spec wiring harness will bring you back to the tones of Grant Green in a laid-back New York jazz club. Run the Gibson Custom ES330 guitar through an old tube amp and you won't be able to keep from playing one British Invasion song after another.

    The weight, the feel and the tone of this ES330 VOS guitar are magical. Offered in old-school colors and all finished in Gibson Custom's warm Vintage Original Spec process, the ES330 is a guitar that just makes sense from beginning to end.

    Features

    - Three-ply Maple/Poplar/Maple hot-pressed top and back
    - Rosewood fingerboard with Mother-of-Pearl dot inlays
    - Underwound P-90 Dog Ear pickups
    - Nickel-plated ABR-1 bridge with Trapeze tailpiece (Aluminum Bigbsy on the Vintage Cherry)
    - TonePros Kluson tuners with white buttons and 18:1 tuning ratio

    Same Day Music is an authorized dealer of Gibson products.

    Gibson Custom ES330 VOS Hollowbody Electric Guitar with Case Technical Description

    Body
    - Body Type: Single Chamber, Fully Hollow
    - Top: 3ply - Maple/Poplar/Maple, Hot Pressed
    - Back: 3ply - Maple/Poplar/Maple, Hot Pressed
    - Binding: Cream

    Neck
    - Species: Mahogany Neck with Maple Spline
    - Truss Rod: Traditional
    - Joint Angle: 4 degree (+/- 15 seconds)
    - Adhesive: Franklin Titebond 50

    Neck Fit
    - Joint: Mortise and Tenon
    - Adhesive: Franklin Titebond 50
    - Joint Angle Tolerance: +/- .005 inch

    Fingerboard
    - Species: Hand-selected Dark Rosewood
    - Radius: 12 inches
    - Scale Length: 24.75 inches
    - Nut/E.O.B: 1.687/2.062
    - Inlays: Mother-of-Pearl Dots
    - Binding: .04, cream
    - Other: Standard Fret Wire/Tortoiseshell Side Dots

    Nut
    - Material: Vintage Style Nylon
    - Width: 1.687
    - Slots: Gibson PLEK System

    Headstock
    - Logo: 'Gibson' Pearl Inlay
    - Truss Rod Cover: Vintage Truss Rod Cover
    - Angle: 17 Degrees

    Tuners
    - Model: TonePros Kluson with White Buttons
    - Plating: Nickel
    - Tuning Ratio: 18:01

    Bridge
    - Type: Tune-o-matic (ABR-1)
    - Material: Die Cast Alloy
    - Plating: Nickel

    Tailpiece
    - Type: Trapeze-style (Aluminum Bigsby on Vintage Cherry)
    - Material: Aluminum
    - Plating: Nickel

    Hardware
    - Knobs: Amber Top Hats (Black Top Hats with Silver Inserts on Vintage Cherry)
    - Pickguard: Reissue with 5-ply Binding
    - Strap Buttons: Aluminum End Pins

    Pickups
    - Neck: Underwound P-90 Dog Ear (Alnico II)
    - Bridge: Underwound P-90 Dog Ear (Alnico II)

    Electronics
    - Potentiometers:
    - 2 Volume Controls
    - 2 Tone Controls
    - Capacitors: Sprague Black Beauty Bumblebee
    - Type: 500k Audio Taper
    - Coil Wiring: Parallel-Machine Wound
    - Toggle Switch: Switchcraft Toggle with Vintage Cap
    - Output Jack: 1/4 inch Switchcraft Jack

    Finish
    - Sealer: Nitrocellulose Lacquer

    Case
    - Type: Custom Shop Silkscreened Case
    - Case Exterior: Black Leatherette
    - Case Interior: Charcoal Plush

    Same Day Music is an authorized dealer of Gibson products.
    Shipping Weights and Dimensions
    Vintage Cherry
    Shipping Weight: 22 lbs
    Shipping Dimensions: 47 x 20 x 8 in
    Vintage Natural
    Shipping Weight: 21 lbs
    Shipping Dimensions: 48 x 20 x 8 in
