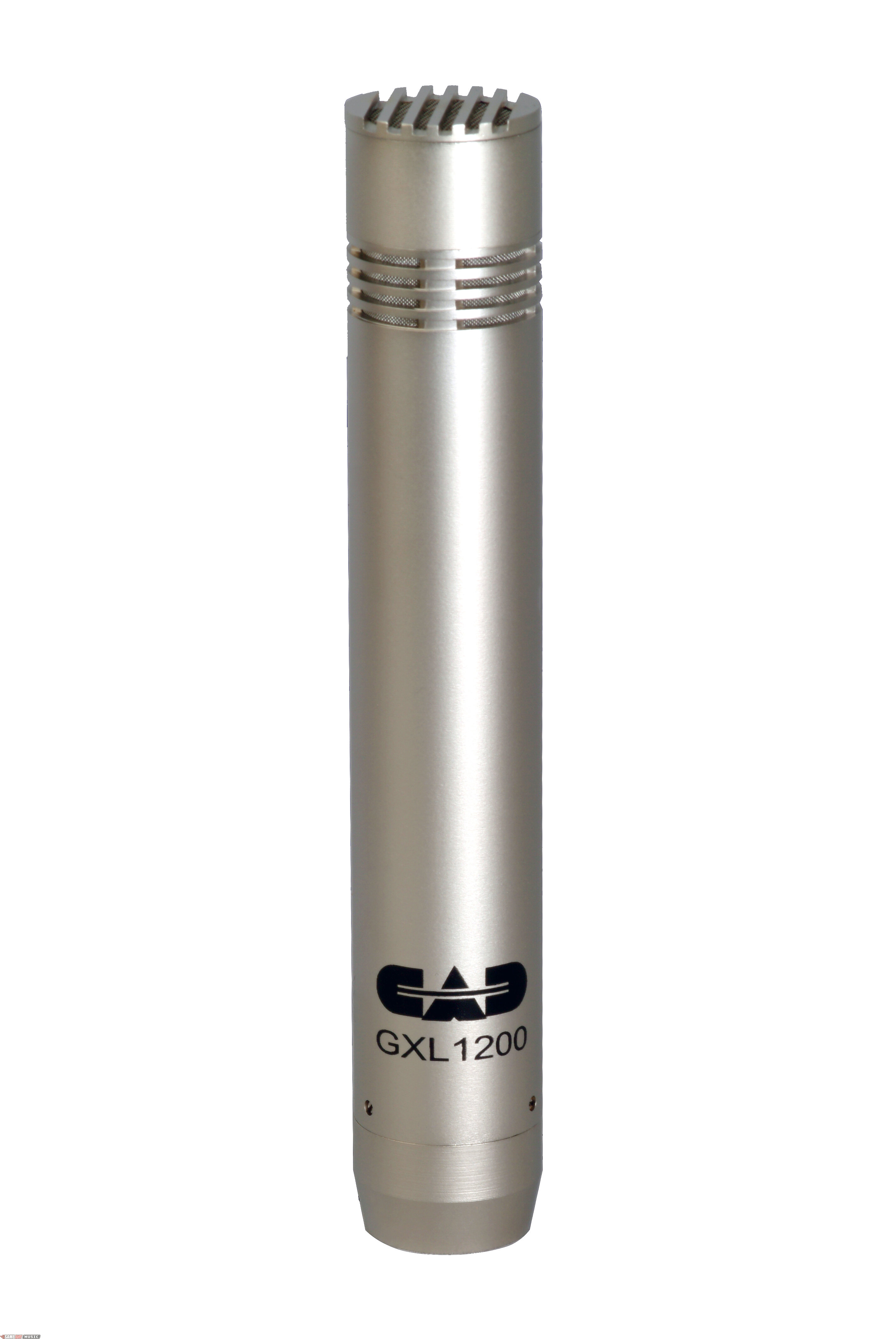

Global Audio by CAD GXL1200 Small Diaghragm Condenser Microphone
Small Diaghragm Condenser. 30z - 20kHz Frequency Response.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.

Main
Dimensional Diagram
Frequency Response
PRODUCT DESCRIPTION
Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.
TECHNICAL DESCRIPTION
Generating Element:
Externally Biased Condenser
Polar Pattern:
Unidirectional (Cardioid)
Frequency Response:
30 Hz - 20 kHz
Sensitivity:
Power Level: -36dB 0dB=1mW per 10 microbars
Open Circuit Voltage: -56dB 0dB=1V per microbar
Impedance:
Low (Less than 200 Ohms)
Equivalent Noise Level:
+14dB (A-weighted)
Power:
P24V or P48V Phantom Power
Connector:
3 pin XLR
Phasing:
Positive pressure on diaphragm generates a positive voltage on pin #2 relative to pin #3
Dimensions:
See picture
Weight:
126 Grams
