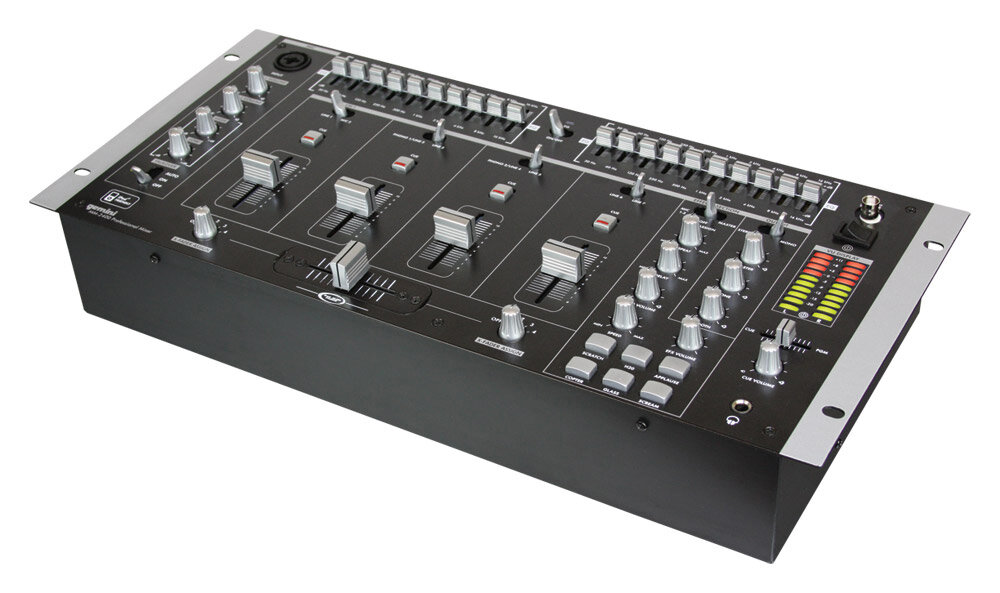

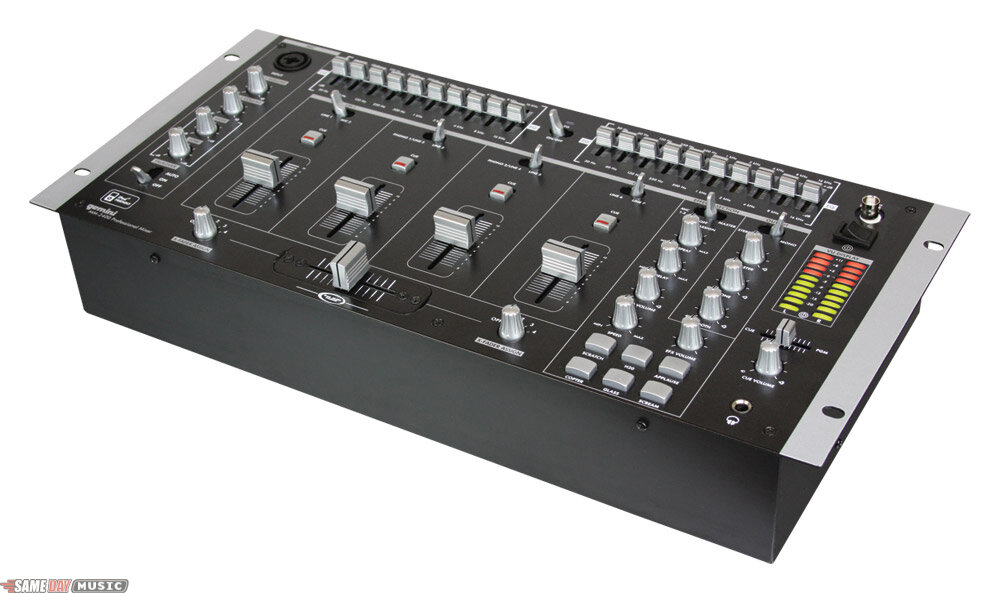

Gemini MM-2400 DJ Mixer, 4-Channel

The Dual 10 band graphic EQ with on/off switch allows you to tweak your sound to an exact level of your satisfaction, putting the power of sound in the DJ's hand. The assignable crossfader with removable Rail Glide cross fader allows you to pick which channels you want to fade into. Quick push-button cueing will allow the DJ to set up their next track on any particular channel fast.

The MM-2400 features 6 digital effects include SCRATCH, H20, APPLAUSE, COPTER, GLASS, and SCREAM. These are some the best digital effects any DJ can add to their set and use interact with the crowd.

Includes echo section with repeat, delay, volume, and speed rotary controls This is very important feature for a DJ/MC that wants to add some extra vocal effects.

Features
- 5U, 19-inch rack mounted mixer

- 4 stereo channels

- 7 lines, 3 Mic, 2 phono/line convertible RCA inputs

- Master, record, booth, & zone RCA outputs

- 2 1/4 in. Mic inputs

- Dual 10 band graphic EQ with on/off switch & blue LED indicator

- Rotary zone, booth, & cue volume controls

- Stereo/Mono switch

- Assignable Crossfader

- Removable, user replaceable Rail Glide T Crossfader

- Push button cue per channel with green LED indicator

- CUE/PGM fader control allowing cue mix

- XLR-1/4 in. combo Mic input

- 2 band rotary Mic EQ & volume controls

- Talk over feature

- BNC lamp port

- 1/4 in. headphone input

- 6 digital FX- scratch, H20, applause, copter, glass and scream

- Echo section with repeat, delay, volume, & speed rotary controls

- Rotary master volume control

- Master/Mic 1 assignable echo switch

Same Day Music is an authorized dealer of Gemini products.

Specifications
Frequency Response: 20 Hz to 20 kHz +/- 0.5 dB

THD+N: <0.02% at 1 kHz

Signal to Noise Ratio (Ref to Max. Level) Dynamic Range: >98 dB

Noise Floor Line in to any output: <-80 dBV

Max Output Level (Unity Gain- Line Input): +17 dBV Unbalanced | +23 dBV

Balanced Outputs:
EQ- Mic Main Output: 2 band +/-12dB | 16 kHz +/-12dB | 8 kHz +/-12dB | 4 kHz +/-12dB | 2 kHz +/-12dB | 1 kHz +/-12dB | 500 Hz +/-12dB | 250 Hz +/-12dB | 120 Hz +/-12dB | 60 Hz+/-12dB | 30 Hz +/-12dB

Phono/Line inputs (convertible): 2 x 2 (RCA) convertible | -12 dBV/>10K Ohm (LINE) | -50 dBV/47K Ohm (PHONO)

Line Inputs: 2 x 7 (RCA), -12dBV />10K Ohm

Mic Input: x2 (1/4"6.3mm jack) -60 dBV /1 k Ohm | 1 XLR/(1/4 in. 6.3mm), combo -60 dBV /1 k Ohm

Master Output (Unbalanced): x 2 (RCA) unbalanced / 0 dBV

Record Output: x 2 (RCA) unbalanced /150 mV, 5 KOhm

Zone Output: x 2 (RCA) unbalanced / -16 dBV

Booth Output: x 2 (RCA) unbalanced / -16 dBV

Master Outputs (Balanced): x2 (1/4 in. 6.3mm jack) +6 dBV Balanced

Headphone Output: x1 (1/4 inch) 32 Ohm load

Power Supply: AC 115/220V

Dimensions (WxHxD): 19 x 4 x 9.1 in. (482.6 x 100.6 x 231.2 mm)

Weight: 10.34 lbs (4.7 kgs)

Same Day Music is an authorized dealer of Gemini products.

Shipping Weights and Dimensions

Shipping Weight: 12 lbs

Shipping Dimensions: 21 x 12 x 5 in
