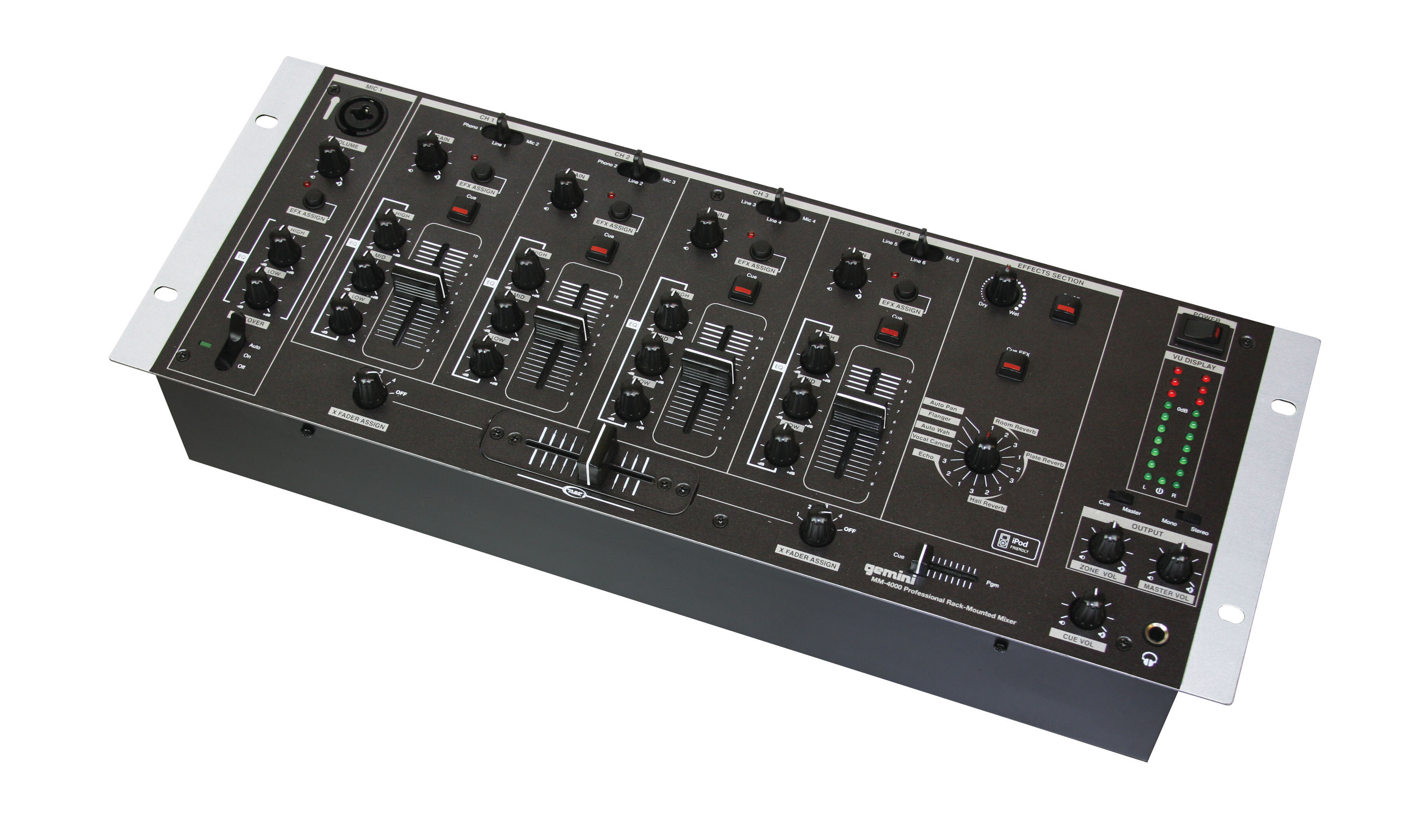

The Perfect, affordable rack-mount DJ FX Mixer, Gemini's MM-4000 offers exceptional value to Karaoke and Club DJ's. Perfect for vocal manipulation and mixing, this unit comes equipped with 4 unbalanced quarter-inch mic channel inputs, 1 balanced XLR master microphone input, Dry/Web rotary control, plus a rotary control FX Selector that lets you choose between 16 high quality built-in effect choices such as room reverbs, chorus, flange and delays!
Features
# 4U 19-inch rack mounted audio FX mixer
# 4 stereo channels
# 6 line and 2 phono RCA inputs
# 4 1/4-inch unbalanced mic inputs
# 1 balanced XLR master microphone input
# Master, zone & record RCA outputs
# Balanced XLR master output
# 3 band rotary line EQ control per channel
# 8 effect DSP module w/16 presets
# Dry/Wet rotary control
# Rotary control FX selector
# Fully removable, user replaceable Rail Glide cross fader
# Assignable cross fader
# Rotary gain control per channel
# Dual mode VU display with bright LED
# Push-button cue section with CUE/PGM fader control
# Rotary master, zone, balance and cue volume controls
# Rotary main mic volume control
# 2 band main mic EQ
# Auto or manual talk-over feature
# Face plate located 1/4-inch headphone jack
Specifications
Frequency Response: 20 Hz to 20 kHz +/- 0.5 dB
THD+N: 0.02% at 1 kHz
Signal to Noise Ratio (Ref to Max. Level) Dynamic Range: >98 dB
Noise Floor (Line in to any output): <-80 dBV
Max Output Level (Unity Gain- Line Input): +17 dBV Unbalanced | +23 dBV Balanced
EQ (Mic Channel): 2 band +/- 12 dB | Hi +10, -30 dB | Mid +8, -30 dB | Low +12, -32 dB
Line Inputs: x12 (RCA) 6 line inputs, -17 dBV / >10 K Ohm
Phono Inputs: x4 (RCA) x2 phono inputs, -54 dBV / 47 K Ohm
Mic Input: x5 (1/4 in. 6.3 mm jack) -60 dBV / 1 K Ohm
Master Outputs: x2 (XLR) Balanced / x2 (RCA) Unbalanced, +6 dBV Balanced / 0dBV Unbalanced
Record Output: x2 (RCA) Unbalanced/ -16 dBV
Headphone Output: x1 (1/4 in.) 32 Ohm load
Dimensions: 19 x 7 x 3 in. (483 x 178 x 76 mm)
Weight: 10 lbs (4.53 kg)
