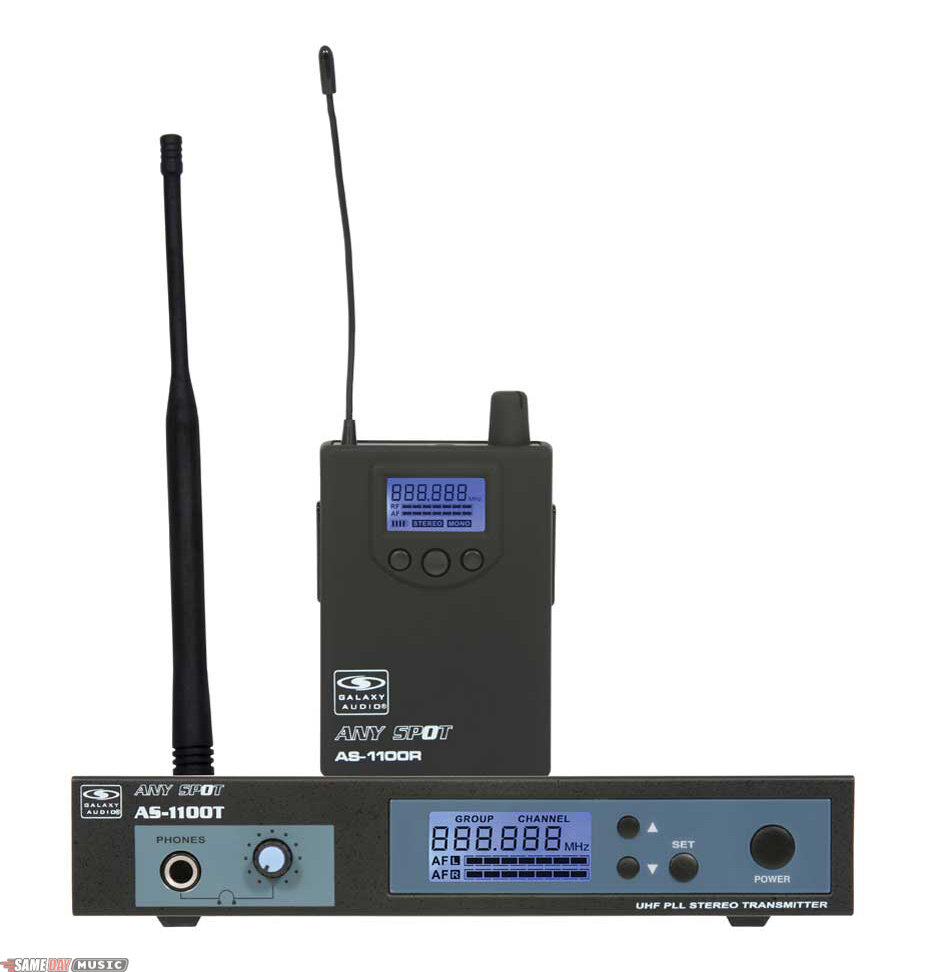

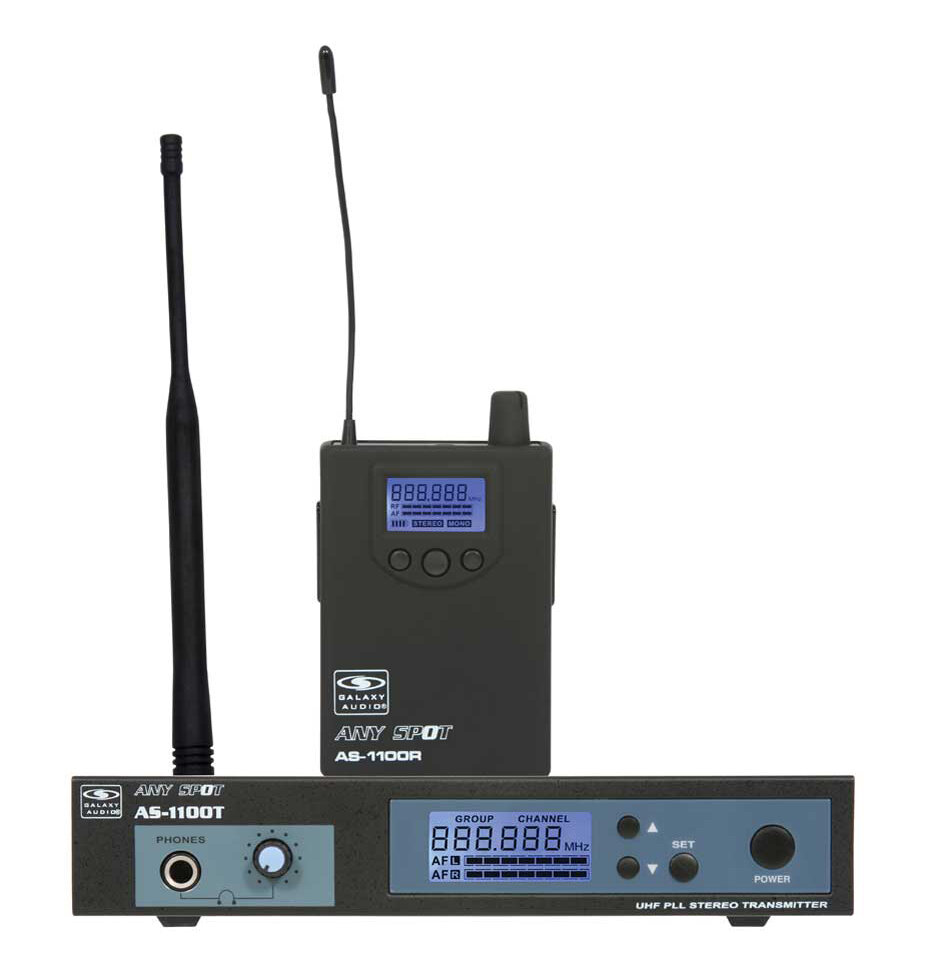

Galaxy Audio Wireless AS1100 In-Ear Personal Monitor System

The AS-1100 packs an amazing punch. The transmitter has stereo XLR/1/4-inch inputs, headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and RF/AF indicator. The AS-1100 is perfect for anyone looking for their first system or to upgrade to the next level.

AS1100R Receiver
- LCD Display with Backlight
- Headphone Output Volume Control
- 4 Bar Battery Life Indicator
- RF and AF Indicator
- 100 mW Headphone Output
- 2 AA Batteries
- Ear Buds Included
- 80 mW Audio Output
- 3.5 oz (100 g)
- 300 ft Range

AS1100T Transmitter
- Transmits in Stereo or Mono
- Light Up LCD Display
- Channel Number and Frequency
- 120 Selectable Channels
- XLR-1/4 inch Combo Input
- AF L/R Indicator
- RF Output
- 10 mW
- Comes with earbuds.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Galaxy Audio products.

AS110T Transmitter
- Max Audio input level: +6dBV
- Gain Adjustment Range: 40dB
- Input Impedance: 100K
- Dimensions: 1.5 x 8.3 x 3.78 in. (38mm x 212mm x 96mm) (HxWxD)
- Weight: 21oz. (605 g)
- Power Requirements: 12-18 V dc at 300mA supplied by external power supply

XLR input:
- Impedance balanced
- Pin1 Ground (cable shield)
- Pin 2 Audio
- Pin 3 No Audio

AS1100R Receiver
- Audio Output Level: 100mW
- Sensitivity: -94dBm for 30dB
- Image Rejection: >55dB
- Dimensions: 3.74 x 2.6 x 1 inches (95mm x 65mm x 25mm) (HxWxD)
- Weight: 3.5oz (100 g) without batteries
- Power Requirements: 2 (AA)size alkaline or rechargeable batteries
- Battery Life: About 5 hour

Same Day Music is an authorized dealer of Galaxy Audio products.

Shipping Weights and Dimensions

Band D (655 MHz)

Shipping Weight: 4 lbs

Shipping Dimensions: 17 x 13 x 4 in

Band L (679 MHz)

Shipping Weight: 4 lbs

Shipping Dimensions: 17 x 13 x 4 in
