Galaxy Audio CM130 Checkmate Sound Level SPL Meter
40 to 130dB range. A/C weighting. Fast/slow/max response.
Product rated 7.0 out of 10 (8 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Side View
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

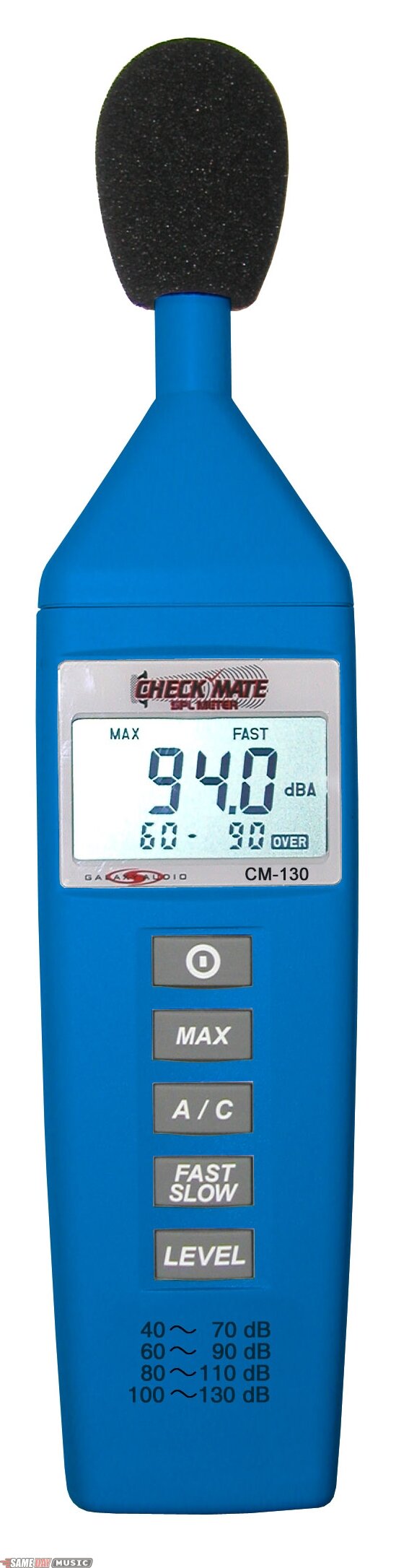

This portable SPL meter features a built-in condenser mic and digital display. It accurately measures the sound level of just about anything from PA systems to car audio (accuracy +/-2dB).
Features:
Mini Size
Low Cost High Performance
MAX Function
Level Range Display
Resolution 0.5 dB
Accessories:
Operation Manual
9V Battery
Windscreen
Features:
Mini Size
Low Cost High Performance
MAX Function
Level Range Display
Resolution 0.5 dB
Accessories:
Operation Manual
9V Battery
Windscreen
TECHNICAL DESCRIPTION
Microphone: 1/2 in. Electret condenser microphone
Accuracy: ±2 dB ( under reference conditions 94dB @1KHz )
Level Range: 1 = 40 ~ 70 dB 2 = 60 ~ 90 dB 3 = 80 ~ 110 dB 4 = 100 ~ 130 dB
Frequency Weighting: A , C
Time Weighting: Fast , Slow
Dynamic Range: 30 dB
Frequency Range: 125Hz to 8KHz
Battery Life: 9V Battery 110 hours (included)
Operation Temp.: 0°C~ 40°C (32 to 104ºF)
Storage Temp.: -10°C~ 60°C(14 to 140ºF)
Dimension: 9.1 in. × 2.1 in. × 1.3 in. (232mm×54mm×34mm)
Weight: Approx. 0.37lbs. (170g)(including battery)
Accuracy: ±2 dB ( under reference conditions 94dB @1KHz )
Level Range: 1 = 40 ~ 70 dB 2 = 60 ~ 90 dB 3 = 80 ~ 110 dB 4 = 100 ~ 130 dB
Frequency Weighting: A , C
Time Weighting: Fast , Slow
Dynamic Range: 30 dB
Frequency Range: 125Hz to 8KHz
Battery Life: 9V Battery 110 hours (included)
Operation Temp.: 0°C~ 40°C (32 to 104ºF)
Storage Temp.: -10°C~ 60°C(14 to 140ºF)
Dimension: 9.1 in. × 2.1 in. × 1.3 in. (232mm×54mm×34mm)
Weight: Approx. 0.37lbs. (170g)(including battery)
