    Galaxy Audio Checkmate CM150 Pro Portable SPL Meter

    IEC 651 Type II, ANSI S1.4 Type II. Auto Ranging (30 ~ 130dB).

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

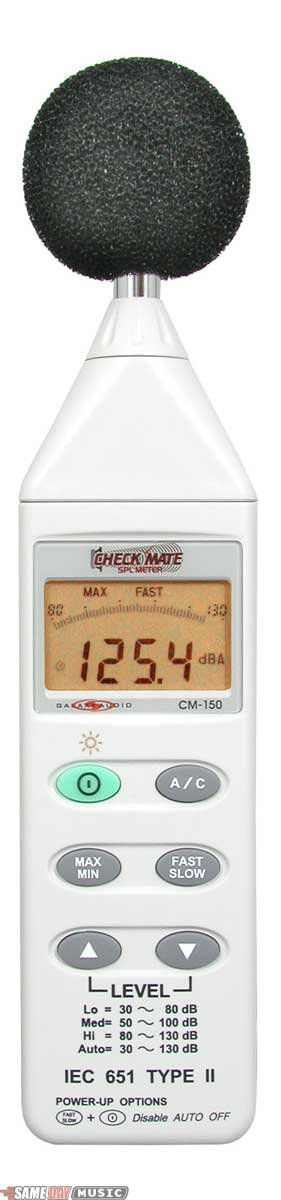

    Galaxy Audio CM150 Checkmate Pro Portable SPL Meter Product Description

    The Galaxy Audio CM150 SPL Meters are inexpensive tools everybody should own.
    The ability to accurately measure the lever of sound in high volume situations can make a huge difference in the percieved audio quality of a mix. The CM150 meets the same IEC 651 Type 2 standards of SPL meters that cost 5 times as much or more.

    Included Accessories
    Carrying Case

    Graphical Interface Software Mini CD & Cable CM-SE321 COMBO

    CM-BS-6 Tripod

    Calibration Screwdriver

    Operation Manual

    9V Battery

    Windscreen

    Features

    Back light

    RS-232 Interface

    Graph Indication

    MAX/MIN Function

    Auto Ranging (30 ~ 130dB)

    Level Range Display

    AC/DC Signal Output

    Resolution 0.1 dB

    Auto Power Off

    IEC 651 Type II, ANSI S1.4 Type II

    Same Day Music is an authorized dealer of Galaxy Audio products.

    Galaxy Audio CM150 Technical Description

    Microphone: 1/2 Inch Electret condenser microphone

    Accuracy: +/- 1.5 dB ( under reference conditions 94dB @1KHz )

    Level Range:
    - Lo = 30 ~ 80 dB
    - Med = 50 ~ 100 dB
    - Hi = 80 ~ 130 dB
    - Auto = 30 ~ 130 dB

    Auxiliary Outputs: AC Signal Output

    Frequency Weighting: A , C

    Time Weighting: Fast (125mS) , Slow (1 sec.)

    Dynamic Range: 50 dB

    Frequency Range: 31.5Hz to 8KHz

    Alarm Function: Over, Under

    Battery Life: 9V Battery 50 hours (included)

    Storage Temp.: -10 degrees C~ 60 degrees C(<70% R.H.)

    Dimension: 10.8 x 2.5 x 1.2 Inches ( 275mm x 64mm x 30mm )

    Weight: Approx. 0.764lbs. (285g)(including battery)

    Same Day Music is an authorized dealer of Galaxy Audio products.
